HIKVISION DS-7608NI-Q2/8P User Manual

Network Video Recorder User Manual
121
Or you can select recording files you want to back up, and click Export button to enter
Export interface.
If the inserted USB device is not recognized:

Click the Refresh button.

Reconnect device.

Check for compatibility from vendor.
You can also format USB flash drives or USB HDDs via the device.

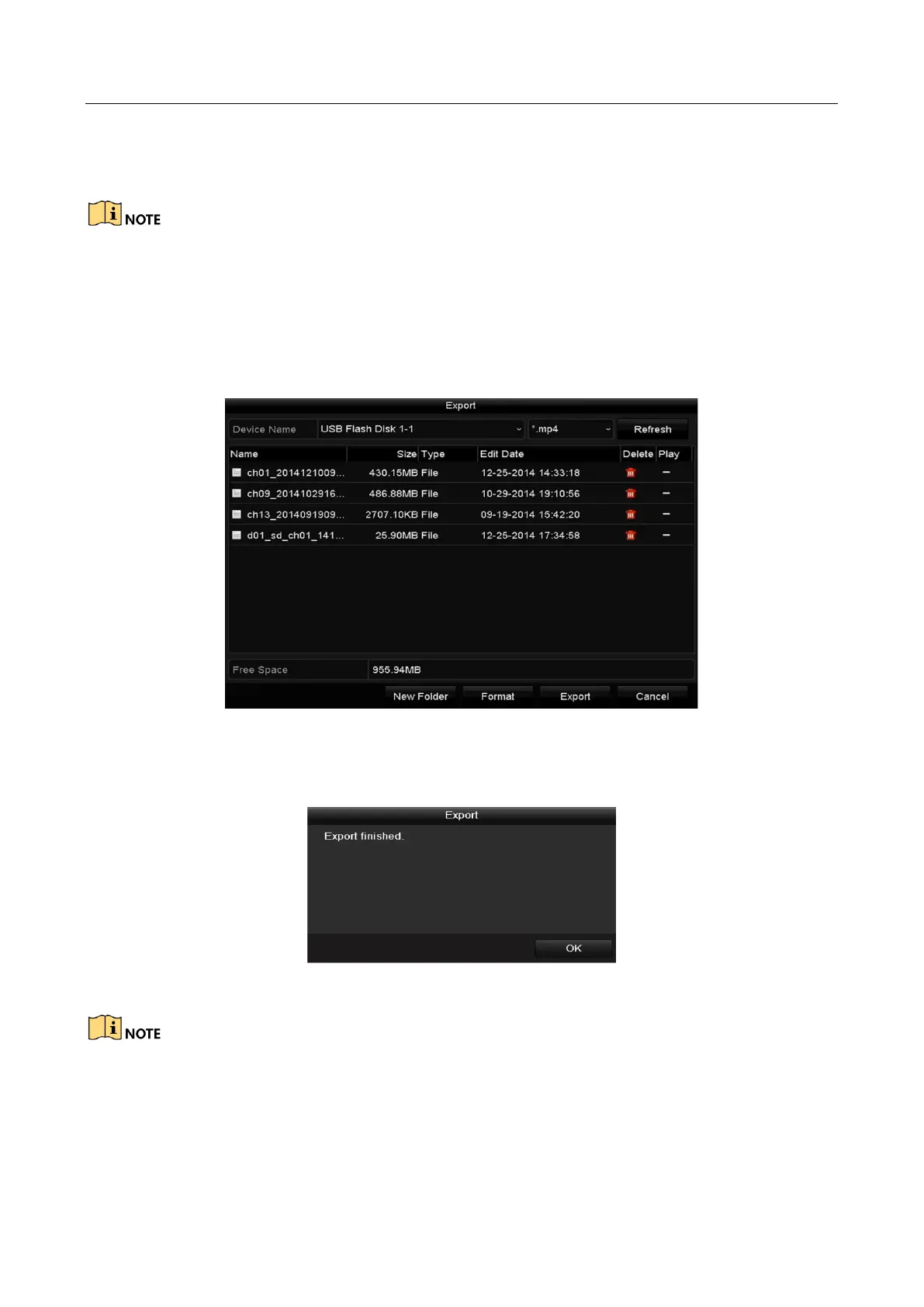

Figure 7-7 Export by Normal Video Search using USB Flash Drive
Stay in the Exporting interface until all record files are exported with pop-up message box
“Export finished”.
Figure 7-8 Export Finished
The backup of video files using USB writer or SATA writer has the same operating instructions.
Please refer to steps described above.

HIKVISION DS-7608NI-Q2/8P Specifications

General

DHCP client	Yes
Input bandwidth	80 Mbit/s
Maximum frame rate	60 fps
Maximum resolution	3840 x 2160 pixels
Alarm input channels	1
Video input channels	8 channels
Supported resolutions	1024 x 768, 1280 × 720, 1280 × 1024, 1920 × 1080, 1600 × 1200, 3840 × 2160
Video recording modes	720p, 1080p
Wi-Fi	No
HDD capacity	2000 GB
HDD interface	Serial ATA
Maximum storage capacity	16 TB
Number of HDDs supported	2
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	9
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Power over Ethernet (PoE) ports quantity	8
Product color	Black
Rack capacity	1U
LED indicators	LAN, Power, Status
AC input voltage	100 - 240 V
Power consumption (typical)	15 W
Total Power over Ethernet (PoE) budget	80 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	315 mm
Width	385 mm
Height	52 mm
Weight	3000 g
