HIKVISION DS-7732NI-I4/16P User Manual

Network Video Recorder User Manual
121

The indicates the start/end time of the recorded video files.

Playback progress bar: use the mouse to click any point of the progress bar or drag the
progress bar to locate specific frames.

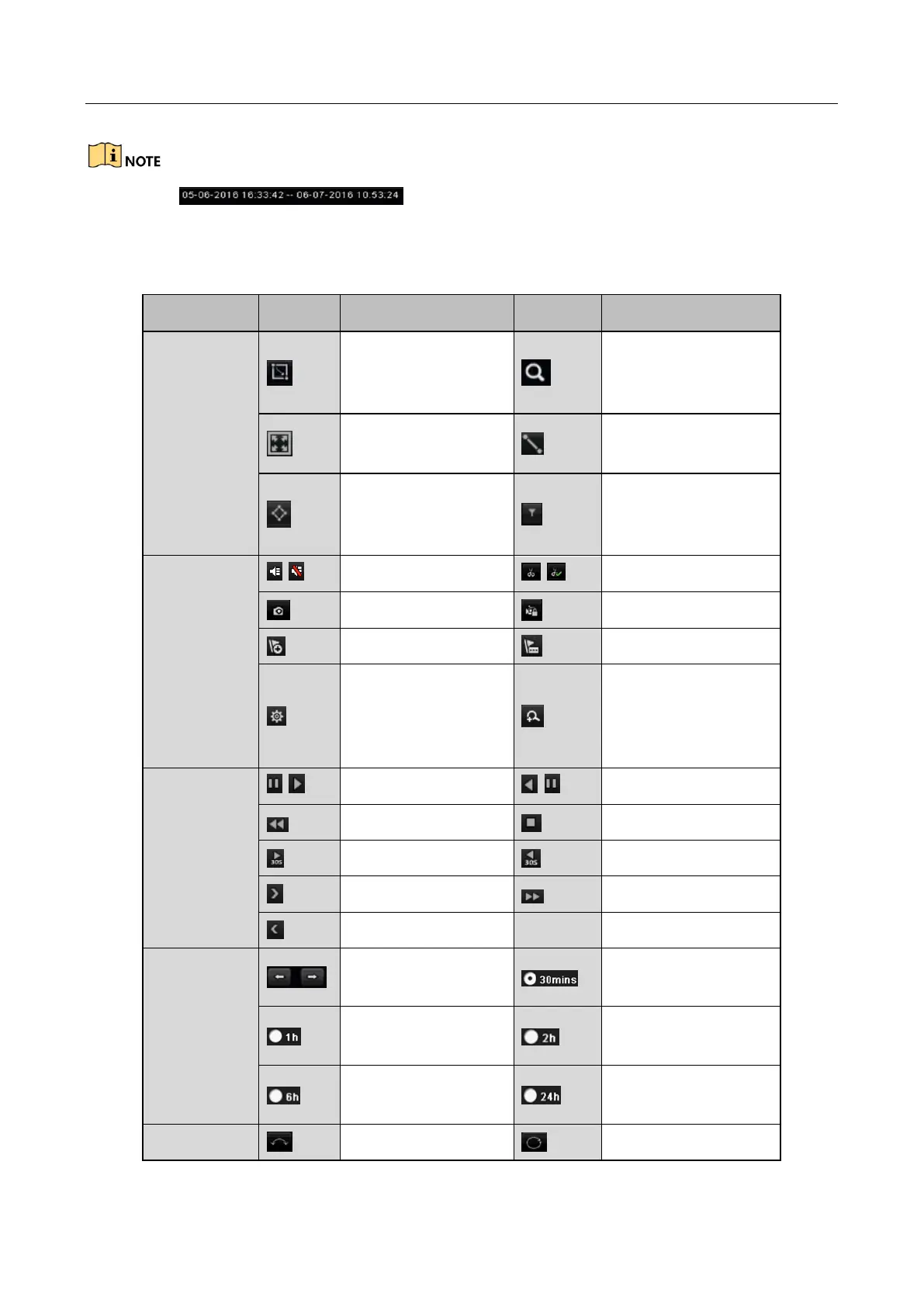

Table 6-1 Detailed Explanation of Playback Toolbar
Item
Button
Operation
Button
Operation
Smart
Search
Draw quadrilateral
for the motion
detection
Search the matched
video
Set full screen for
motion detection
Draw line for the line
crossing detection
Draw quadrilateral
for the intrusion
detection
Filter video files by
setting the target
characters
Operations
/
Audio on/Mute
/
Start/Stop clipping
Capture Picture
Lock File
Add default tag
Add customized tag
File management
for video clips,
captured pictures,
locked files and tags
Digital Zoom
Playing
Control
/
Pause/Play
/
Reverse play/ Pause
Slow forward
Stop
30s forward
30s reverse
Next day
Fast forward
Previous day
Time Bar
Scaling
Previous/Next
period
Play the time bar in
30 minutes (default)
Play the time bar in
1 hour
Play the time bar in 2
hours
Play the time bar in
6 hours
Play the time bar in
24 hours
Fisheye
180° panorama
360° panorama

HIKVISION DS-7732NI-I4/16P Specifications

General

Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	4
Supported resolutions	3840 × 2160, 2560 × 1440, 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
Video formats supported	H.264, H.265, MPEG4
Audio RCA inputs	1
RS-232 interface	Yes
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	9
Supported network protocols	TCP/IP, DHCP, HIK Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Power over Ethernet (PoE) ports quantity	8
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	0
AC input voltage	100 - 240 V
Power consumption (max)	300 W
Power consumption (typical)	20 W
Total Power over Ethernet (PoE) budget	200 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Rack capacity	1.5U
Supported graphics resolutions	1024 × 768, 1280 × 1024, 1920 × 1080

Weight and Dimensions

Depth	390 mm
Width	445 mm
Height	70 mm
Weight	5000 g
