Network Video Recorder User Manual
229
14.2 Managing Network HDD
Purpose:
You can add the allocated NAS or disk of IP SAN to NVR, and use it as network HDD. Up to 8
network disks can be added.
Step 1 Enter the HDD Information interface.
Menu > HDD>General

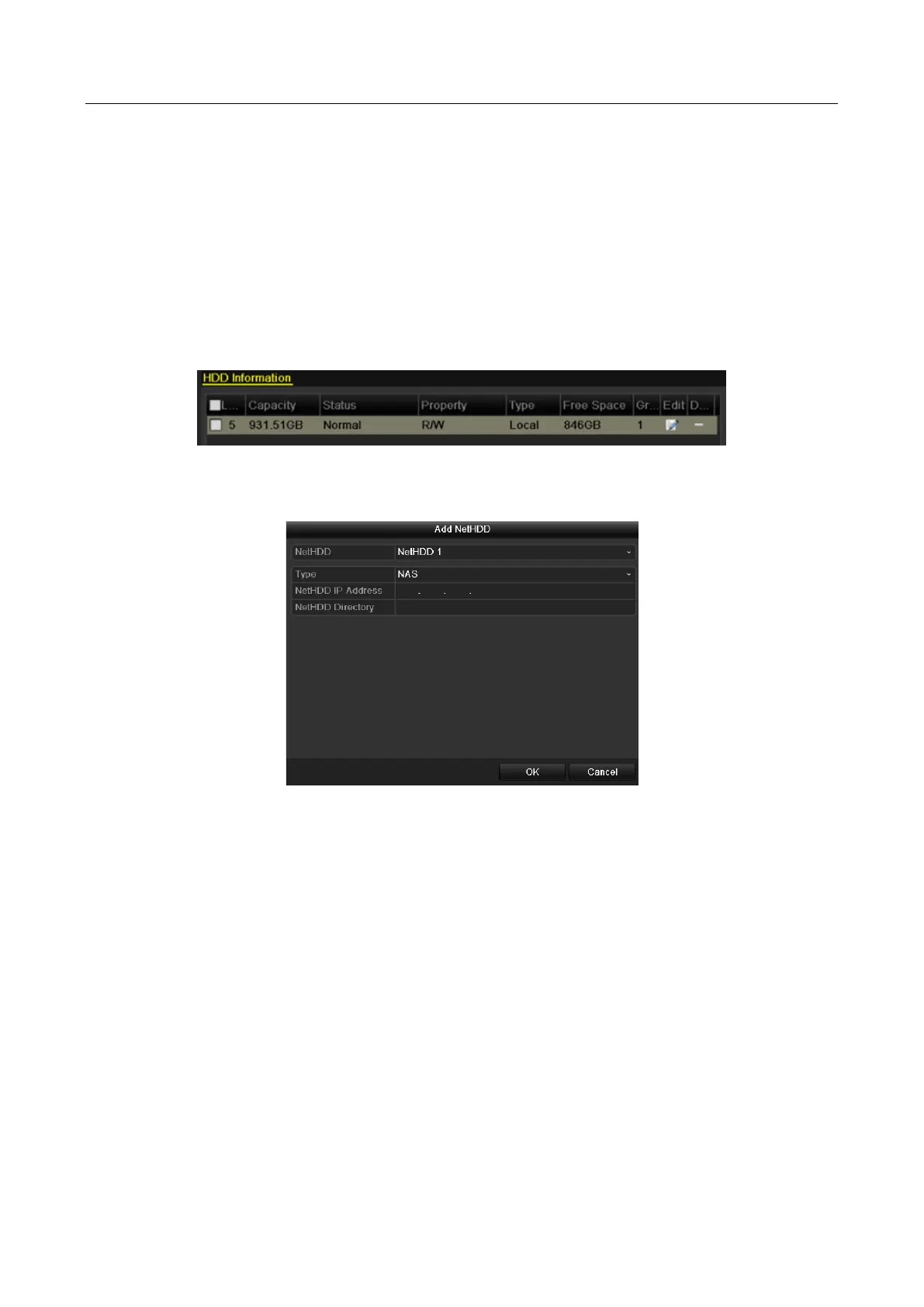

Figure 14-6 HDD Information Interface
Step 2 Click the Add button to enter the Add NetHDD interface, as shown in Figure 14-7.
Figure 14-7 HDD Information Interface
Step 3 Add the allocated NetHDD.
Step 4 Select the type to NAS or IP SAN.
Step 5 Configure the NAS or IP SAN settings.
Add NAS disk:
1) Enter the NetHDD IP address in the text field.
2) Click the Search button to search the available NAS disks.
3) Select the NAS disk from the list shown below.
4) Or you can just manually enter the directory in the text field of NetHDD Directory.
5) Click the OK button to add the configured NAS disk.

Table of Contents

Other manuals for HIKVISION DS-7732NI-I4/16P

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-7732NI-I4/16P and is the answer not in the manual?

HIKVISION DS-7732NI-I4/16P Specifications

General IconGeneral
Maximum resolution3840 x 2160 pixels
Alarm input channels16
Video input channels32 channels
Alarm output channels4
Supported resolutions3840 × 2160, 2560 × 1440, 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
Video formats supportedH.264, H.265, MPEG4
Audio RCA inputs1
RS-232 interfaceYes
Networking standardsIEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity2
Ethernet LAN data rates10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports9
Supported network protocolsTCP/IP, DHCP, HIK Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Power over Ethernet (PoE) ports quantity8
HDD capacity0 GB
HDD interfaceSerial ATA
Maximum storage capacity6 TB
Number of HDDs installed0
AC input voltage100 - 240 V
Power consumption (max)300 W
Power consumption (typical)20 W
Total Power over Ethernet (PoE) budget200 W
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
Product colorBlack
Rack capacity1.5U
Supported graphics resolutions1024 × 768, 1280 × 1024, 1920 × 1080
Weight and Dimensions IconWeight and Dimensions
Depth390 mm
Width445 mm
Height70 mm
Weight5000 g
