HIKVISION DS-7732NI-I4/16P User Manual

Network Video Recorder User Manual
187

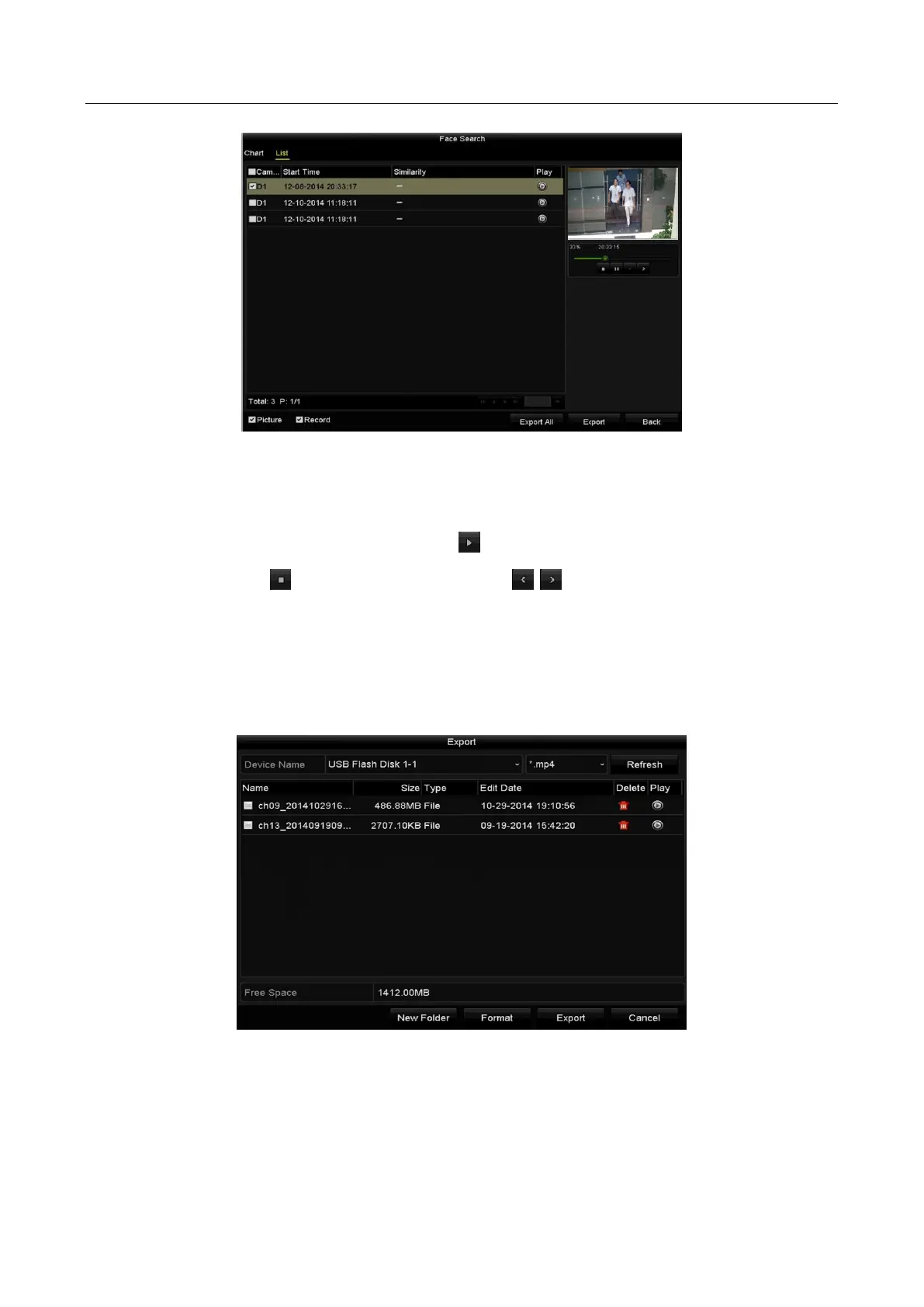

Figure 11-2 Face Search Interface
Step 5 Play the face picture related video file.
You can double click on a face picture to play its related video file in the view window on the
top right, or select a picture item and click to play it.
You can also click to stop the playing, or click / to play the previous/next file.
Step 6 If you want to export the captured face pictures to local storage device, connect the storage
device to the device and click Export All to enter the Export interface.
Click Export to export all face pictures to the storage device.
Please refer to Chapter7 Backup for the operation of exporting files.
Figure 11-3 Export Files
11.2 Behavior Search
Purpose:

HIKVISION DS-7732NI-I4/16P Specifications

General

Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	4
Supported resolutions	3840 × 2160, 2560 × 1440, 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
Video formats supported	H.264, H.265, MPEG4
Audio RCA inputs	1
RS-232 interface	Yes
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	9
Supported network protocols	TCP/IP, DHCP, HIK Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Power over Ethernet (PoE) ports quantity	8
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	0
AC input voltage	100 - 240 V
Power consumption (max)	300 W
Power consumption (typical)	20 W
Total Power over Ethernet (PoE) budget	200 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Rack capacity	1.5U
Supported graphics resolutions	1024 × 768, 1280 × 1024, 1920 × 1080

Weight and Dimensions

Depth	390 mm
Width	445 mm
Height	70 mm
Weight	5000 g
