HIKVISION DS-7732NI-I4/16P User Manual

Network Video Recorder User Manual
62

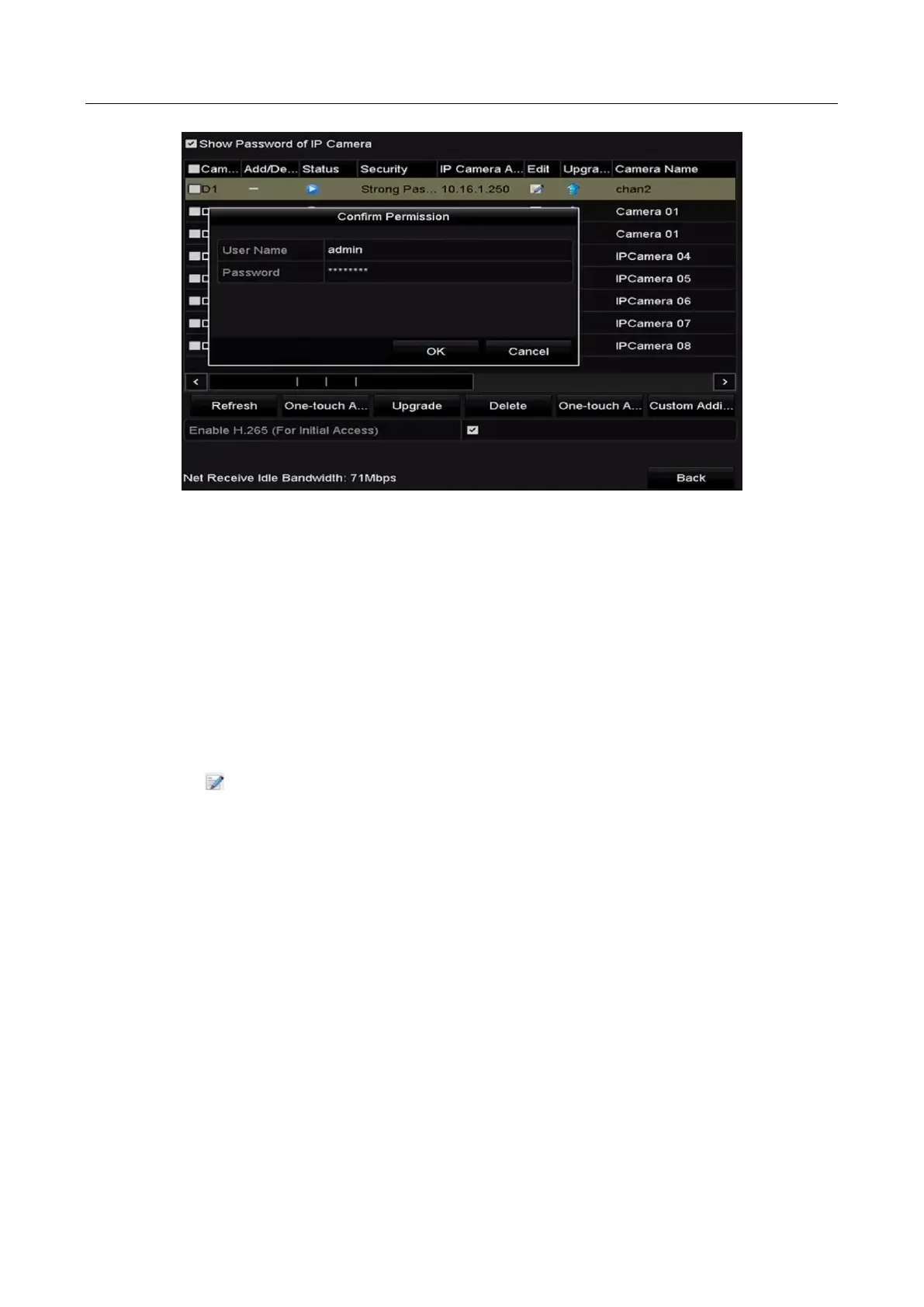

Figure 2-34 List of Added IP Cameras
Enabling the H.265 Stream Access
You can check the checkbox of Enable H.265, the NVR can automatically switch to the H.265 stream
of IP camera (which supports H.265 video format) for the initial access.
2.3.3 Editing the Connected IP Cameras and Configuring
Customized Protocols
After the adding of the IP cameras, the basic information of the camera lists in the page, you can
configure the basic setting of the IP cameras.
Step 1 Click the icon to edit the parameters; you can edit the IP address, protocol and other
parameters.

HIKVISION DS-7732NI-I4/16P Specifications

General

Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	4
Supported resolutions	3840 × 2160, 2560 × 1440, 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
Video formats supported	H.264, H.265, MPEG4
Audio RCA inputs	1
RS-232 interface	Yes
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	9
Supported network protocols	TCP/IP, DHCP, HIK Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Power over Ethernet (PoE) ports quantity	8
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	0
AC input voltage	100 - 240 V
Power consumption (max)	300 W
Power consumption (typical)	20 W
Total Power over Ethernet (PoE) budget	200 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Rack capacity	1.5U
Supported graphics resolutions	1024 × 768, 1280 × 1024, 1920 × 1080

Weight and Dimensions

Depth	390 mm
Width	445 mm
Height	70 mm
Weight	5000 g
