Network Video Recorder User Manual
236

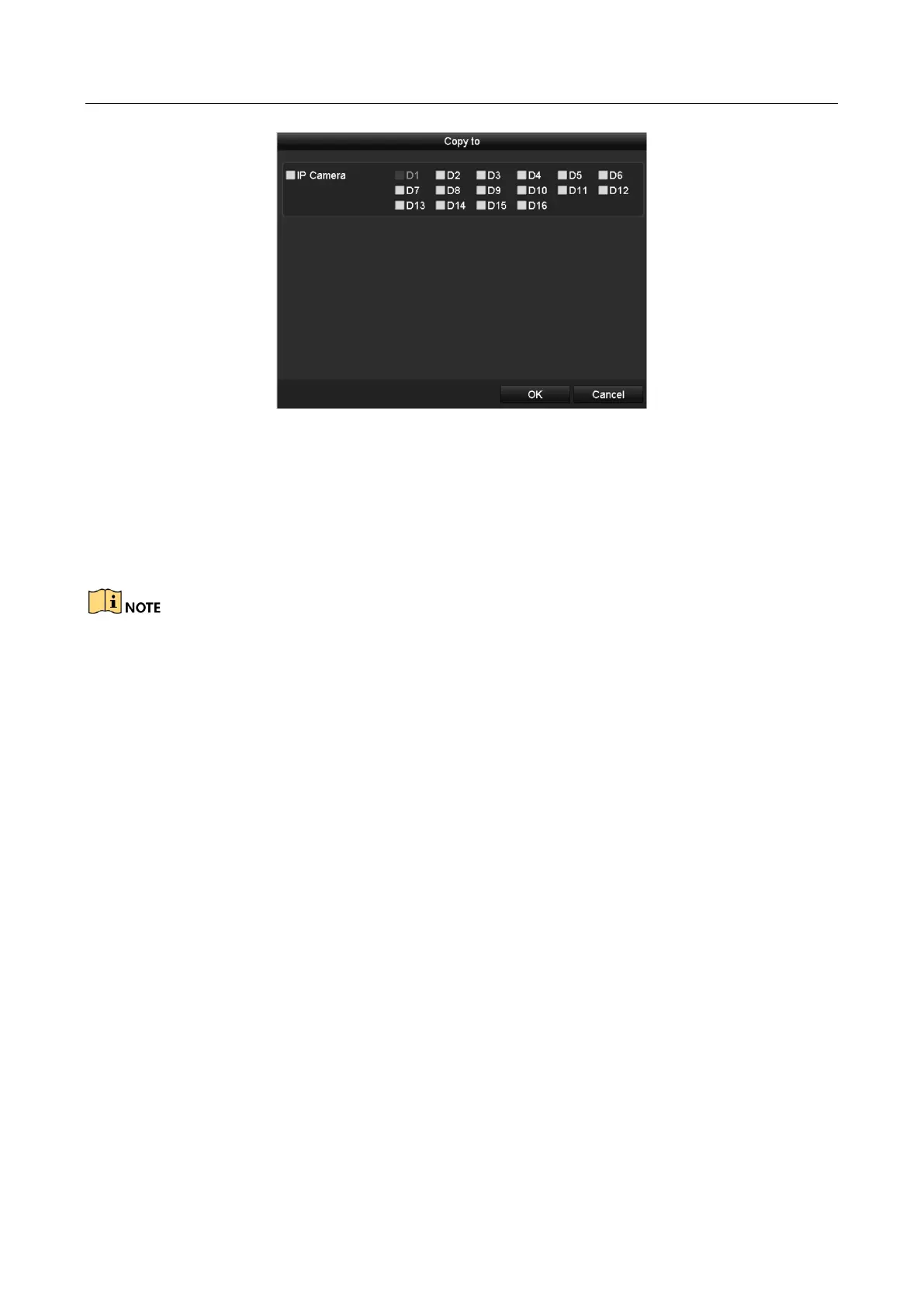

Figure 14-20 Copy Settings to Other Camera(s)
Step 6 Select the camera (s) to be configured with the same quota settings. You can also click the
checkbox of IP Camera to select all cameras.
Step 7 Click the OK button to finish the Copy settings and back to the Storage Mode interface.
Step 8 Click the Apply button to apply the settings.
If the quota capacity is set to 0, then all cameras will use the total capacity of HDD for record and
picture capture.

HIKVISION DS-7732NI-I4/16P Specifications

General

Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	4
Supported resolutions	3840 × 2160, 2560 × 1440, 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
Video formats supported	H.264, H.265, MPEG4
Audio RCA inputs	1
RS-232 interface	Yes
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	9
Supported network protocols	TCP/IP, DHCP, HIK Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Power over Ethernet (PoE) ports quantity	8
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	0
AC input voltage	100 - 240 V
Power consumption (max)	300 W
Power consumption (typical)	20 W
Total Power over Ethernet (PoE) budget	200 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Rack capacity	1.5U
Supported graphics resolutions	1024 × 768, 1280 × 1024, 1920 × 1080

Weight and Dimensions

Depth	390 mm
Width	445 mm
Height	70 mm
Weight	5000 g
