HIKVISION DS-9104HFI-ST series User Manual

Quick Operation Guide of Digital Video Recorder
12

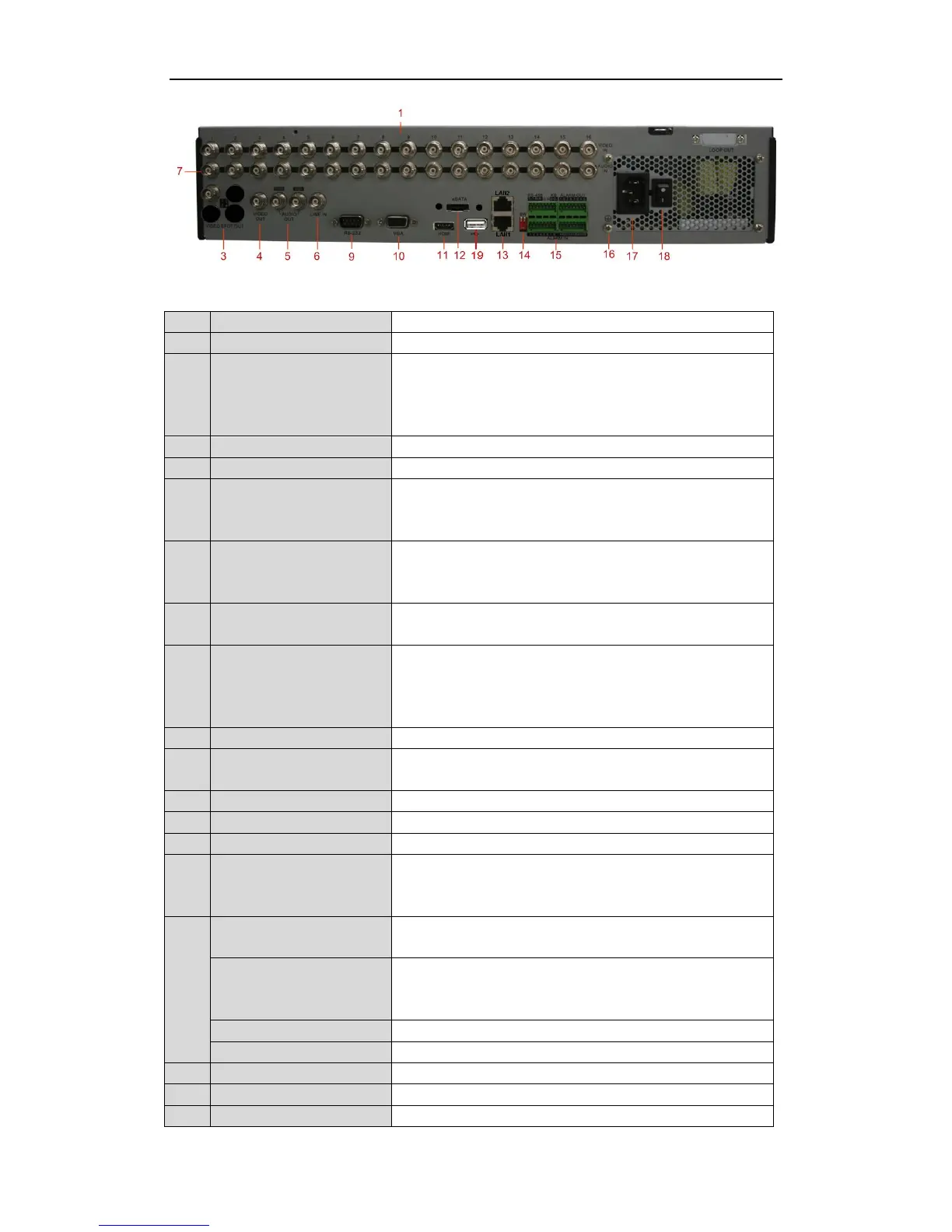

DS-8100/8000HWI-ST
No.
Item
Description
1
VIDEO IN
BNC connector for analog video input.
2
LOOP OUT
(for
DS-9100/9000HFI-ST/RT/XT
& 9100/9000HWI-ST series)
BNC connector for video loop output.
3
VIDEO SPOT OUT
BNC connector for video output.
4
VIDEO OUT
BNC connector for video output.
5
AUDIO OUT
RCA (for DS-9100/9000HFI-ST/RT/XT & 9100/9000HWI-ST) /
BNC (for DS-8100/8000HFI-ST (HWI-ST)) connector for audio
output. This connector is synchronized with VIDEO OUT.
6
LINE IN
RCA (for DS-9100/9000HFI-ST/RT/XT & 9100/9000HWI-ST) /
BNC (for DS-8100/8000HFI-ST (HWI-ST)) connector for two-way
audio.
7
AUDIO IN
RCA (for DS-9100/9000HFI-ST/RT/XT & 9100/9000HWI-ST) /
BNC (for DS-8100/8000-ST) connector for audio input.
8
AUDIO IN
(for
DS-9100/9000HFI-ST/RT/XT
& 9100/9000HWI-ST series)
DB26 connector for audio input.
9
RS-232 Interface
Connector for RS-232 devices.
10
VGA
DB9 connector for VGA output. Display local video output and
menu.
11
HDMI
HDMI video output connector.
12
eSATA (Optional)
Connects external SATA HDD, DVD-R/W.
13
LAN Interface
Network interface.
14
Termination Switch
RS-485 termination switch.
Up position is not terminated.
Down position is terminated with 120Ω resistance.
15
RS-485 Interface
Connector for RS-485 devices. T+ and T- pin connects to R+ and R-
pin of PTZ receiver respectively.
Controller Port
D+, D- pin connects to Ta, Tb pin of controller. For cascading
devices, the first DVR’s D+, D- pin should be connected with the
D+, D- pin of the next DVR.
ALARM IN
Connector for alarm input.
ALARM OUT
Connector for alarm output.
16
GROUND
Ground (needs to be connected when DVR starts up).
17
AC 100V ~ 240V
AC 100V ~ 240V power supply.
18
POWER
Switch for turning on/off the device.
