Quick Operation Guide of Digital Video Recorder
16
Controller Connection
Note: Controller connection is not supported by the DS-7200HFI/HWI-SV & DS-7600HI-ST series.
To connect a controller to the DVR:
1. Disconnect pluggable block from the KB terminal block.
2. Press and hold the orange part of the pluggable block; insert signal cables into slots and release the orange
part. Ensure signal cables are in tight.

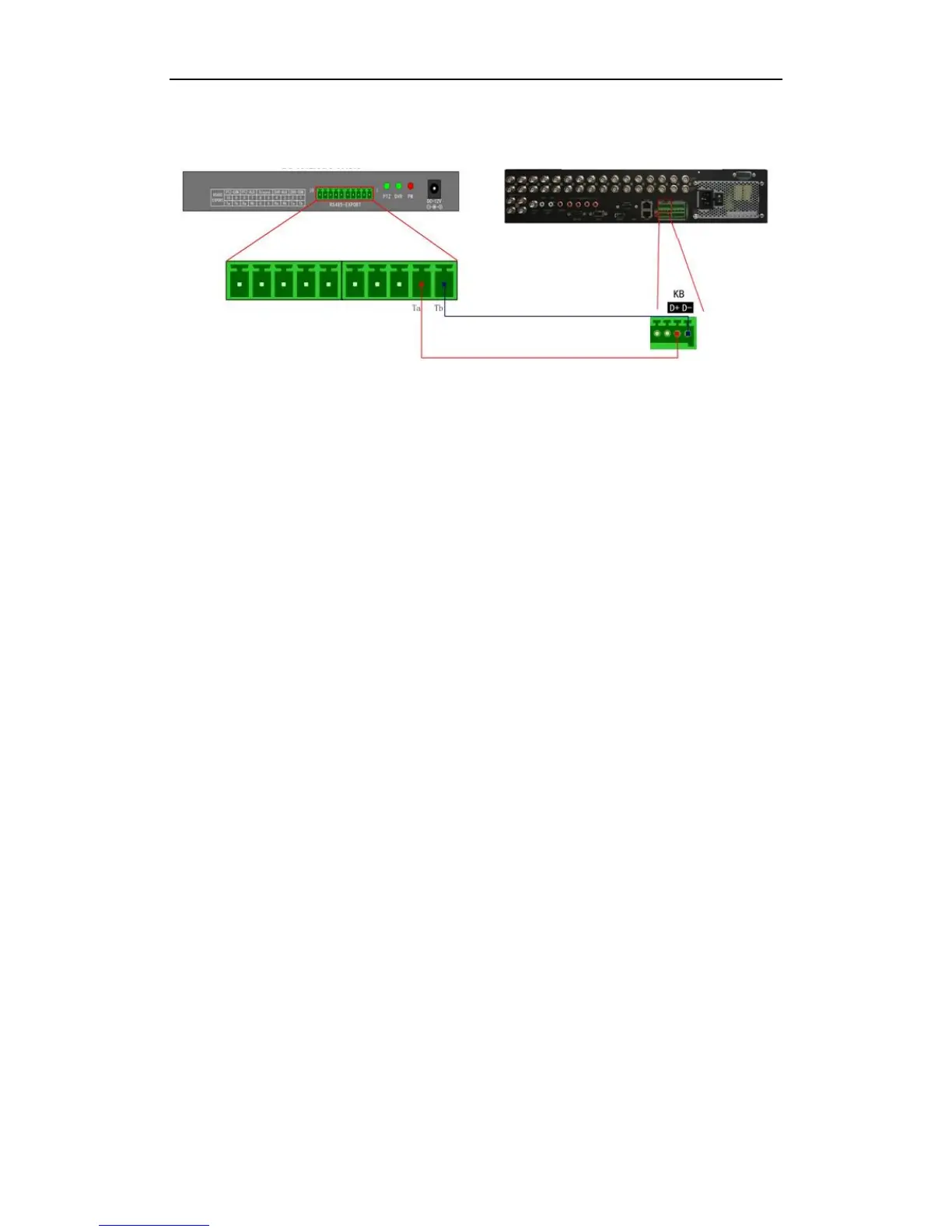

3. Connect Ta on controller to D+ on terminal block and Tb on controller to D- on terminal block. Fasten stop
screws.
4. Connect pluggable block back into terminal block.
Note: Make sure both the controller and DVR are grounded. Here we take the controller connection of the
DS-9100/9000HFI-ST as an example.
