HIKVISION DS-K1T501SF User Manual

Video Access Control Terminal·User Manual
101
closed.

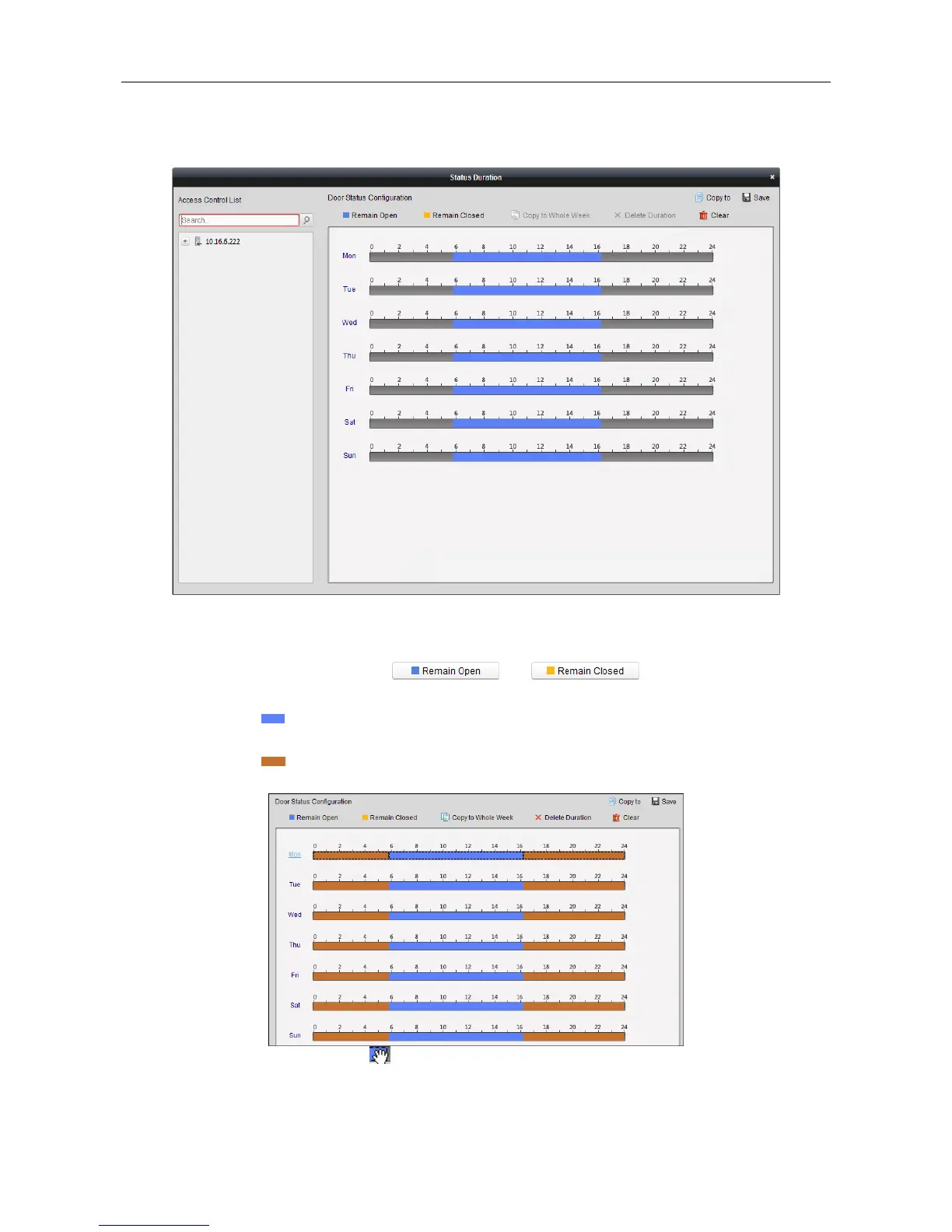

In the Door Status module, click Status Duration button to enter the Status Duration interface.
Steps:
1. Click to select a door from the access control device list on the left.
2. On the Door Status Configuration panel on the right, draw a schedule for the selected door.
1) Select a door status brush as or .
Remain Open: The door will keep open during the configured time period. The brush is
marked as .
Remain Closed: The door will keep closed during the configured duration. The brush is
marked as .
2) Click and drag on the timeline to draw a color bar on the schedule to set the duration.
3) When the cursor turns to , you can move the selected time bar you just edited. You can
also edit the displayed time point to set the accurate time period.

HIKVISION DS-K1T501SF Specifications

General

Type	Basic access control reader
Product color	Gray
Cards capacity	50000 cards
Housing material	Metal
Keypad integrated	No
Fingerprint reader	Yes
Authentication type	Access chip/card, Biometric, Face recognition
Transaction capacity	200000
Fingerprint sensor type	Optical
Identification (1:N) time	1.5 s
False Rejection Rate (FRR)	0.01 %
False Acceptance Rate (FAR)	0.001 %
Access chip/card reader type	Contactless
International Protection (IP) code	IP65
DC current (max)	600 A
DC voltage range	12 V
Total megapixels	2 MP
Front camera type	Single camera
PC connected	-
RS-485 ports	1
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	218 mm
Width	78 mm
Height	41 mm
