Video Access Control Terminal·User Manual
119
5. Add the storage server.

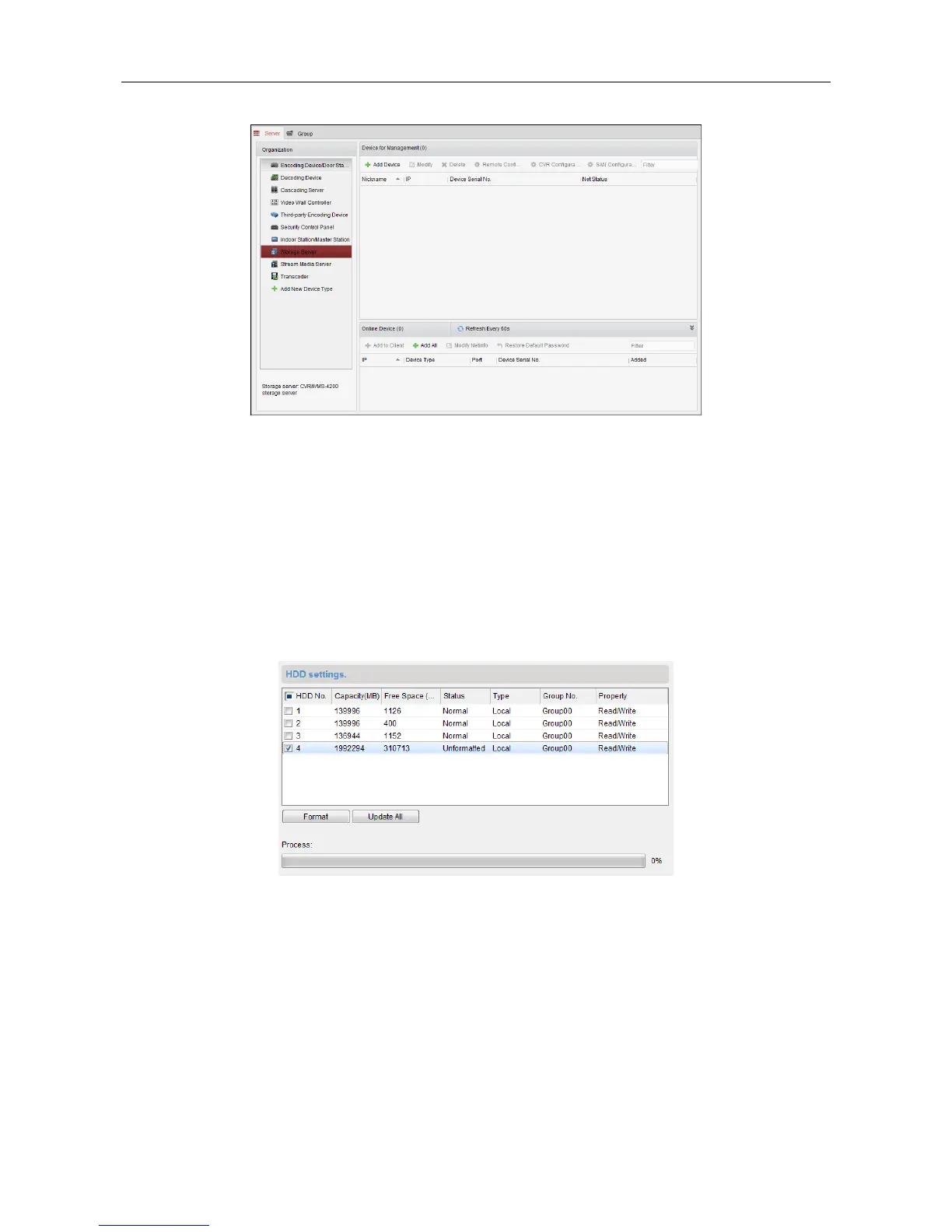

Formatting the HDDs
The HDDs of the storage server need to be formatted for the video file and picture storage.
Steps:
1. Select the added storage server from the list and click Remote Configuration.
2. Click Storage->General, to enter the HDD Formatting interface.
3. Select the HDD from the list and click Format. You can check the formatting process from the
process bar and the status of the formatted HDD changes from Unformatted to Normal Status.
Note: Formatting the HDDs is to pre-allocate the disk space for storage and the original data of the
formatted HDDs will not be deleted.
SAN and CVR Configuration
Purpose:
Client provides SAN configuration and CVR configuration to conveniently set the logical volume and
CVR function for CVR device. For detailed introduction about SAN configuration and CVR
configuration, refer to the User Manual of the CVR.
Note: This function should be supported by the device.
Select the added CVR from the list and click CVR Configuration or SAN Configuration.

HIKVISION DS-K1T501SF Specifications

General

Type	Basic access control reader
Product color	Gray
Cards capacity	50000 cards
Housing material	Metal
Keypad integrated	No
Fingerprint reader	Yes
Authentication type	Access chip/card, Biometric, Face recognition
Transaction capacity	200000
Fingerprint sensor type	Optical
Identification (1:N) time	1.5 s
False Rejection Rate (FRR)	0.01 %
False Acceptance Rate (FAR)	0.001 %
Access chip/card reader type	Contactless
International Protection (IP) code	IP65
DC current (max)	600 A
DC voltage range	12 V
Total megapixels	2 MP
Front camera type	Single camera
PC connected	-
RS-485 ports	1
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	218 mm
Width	78 mm
Height	41 mm
