Video Access Control Terminal·User Manual
61
authentication will be failed.
Note: Only devices with video function support this function.

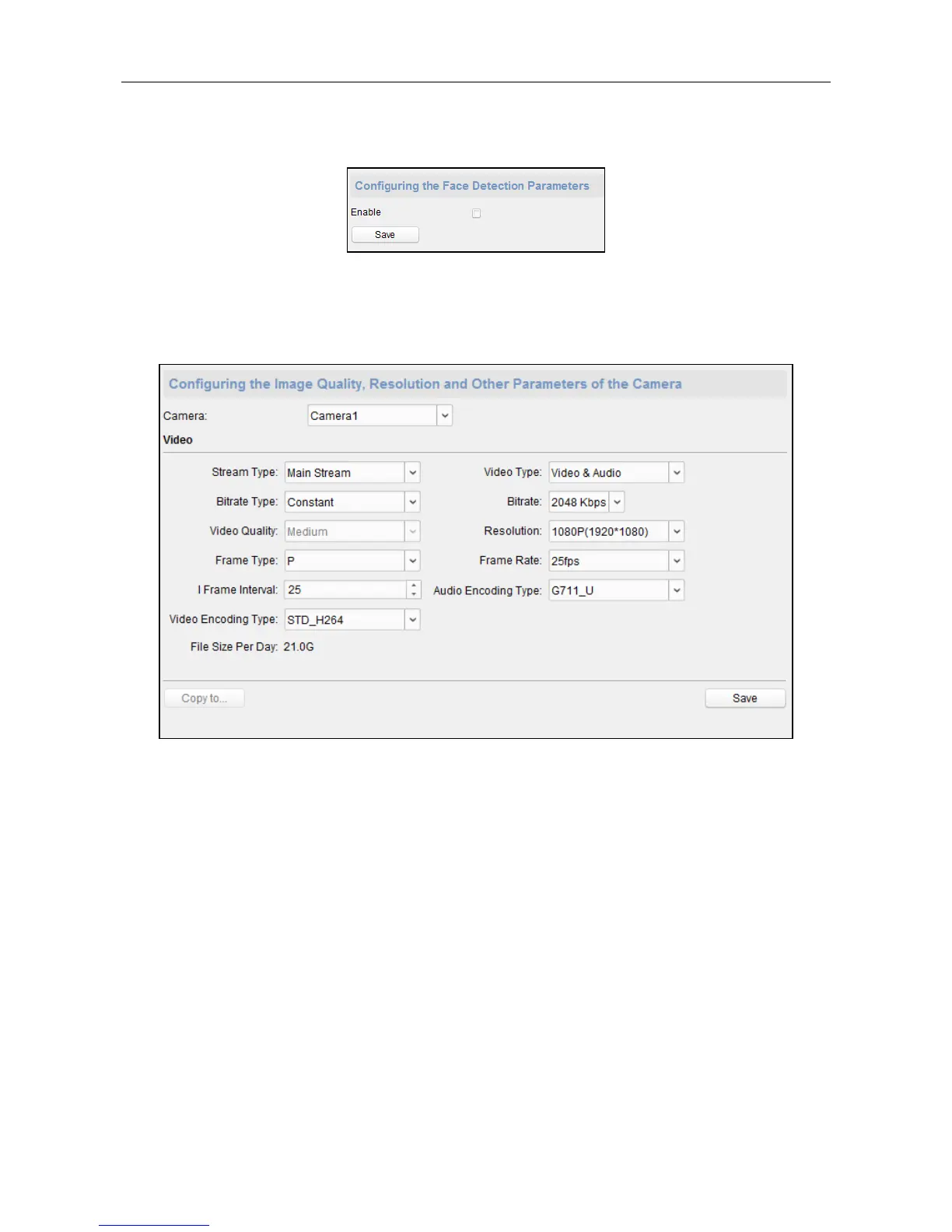

Configuring Video and Audio Parameters
You can set the video compression parameters.
Steps:
1. Click Image -> Video & Audio.
2. Select a camera in the drop-down list.
3. Set the camera video parameters, including the stream type, the bitrate type, the video quality,
the frame type , the I frame type, the video encoding type, the video type, the bitrate, the
resolution, the frame rate and the audio encoding type.
4. Click Save to save the settings.
Or click Copy to… to copy the parameters to other cameras.
Configuring Video Image Parameters
You can set the camera mode, brightness, contrast, saturation, hue, and sharpness.
Steps:
1. Click Image -> Image Settings.

HIKVISION DS-K1T501SF Specifications

General

Type	Basic access control reader
Product color	Gray
Cards capacity	50000 cards
Housing material	Metal
Keypad integrated	No
Fingerprint reader	Yes
Authentication type	Access chip/card, Biometric, Face recognition
Transaction capacity	200000
Fingerprint sensor type	Optical
Identification (1:N) time	1.5 s
False Rejection Rate (FRR)	0.01 %
False Acceptance Rate (FAR)	0.001 %
Access chip/card reader type	Contactless
International Protection (IP) code	IP65
DC current (max)	600 A
DC voltage range	12 V
Total megapixels	2 MP
Front camera type	Single camera
PC connected	-
RS-485 ports	1
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	218 mm
Width	78 mm
Height	41 mm
