HIKVISION DS-K1T642MFW User Manual

Note
Some device models do not support Wi-Fi sengs. Refer to the actual products when
conguraon.
Set Basic Network Parameters
Click Conguraon → Network → Basic Sengs → TCP/IP .

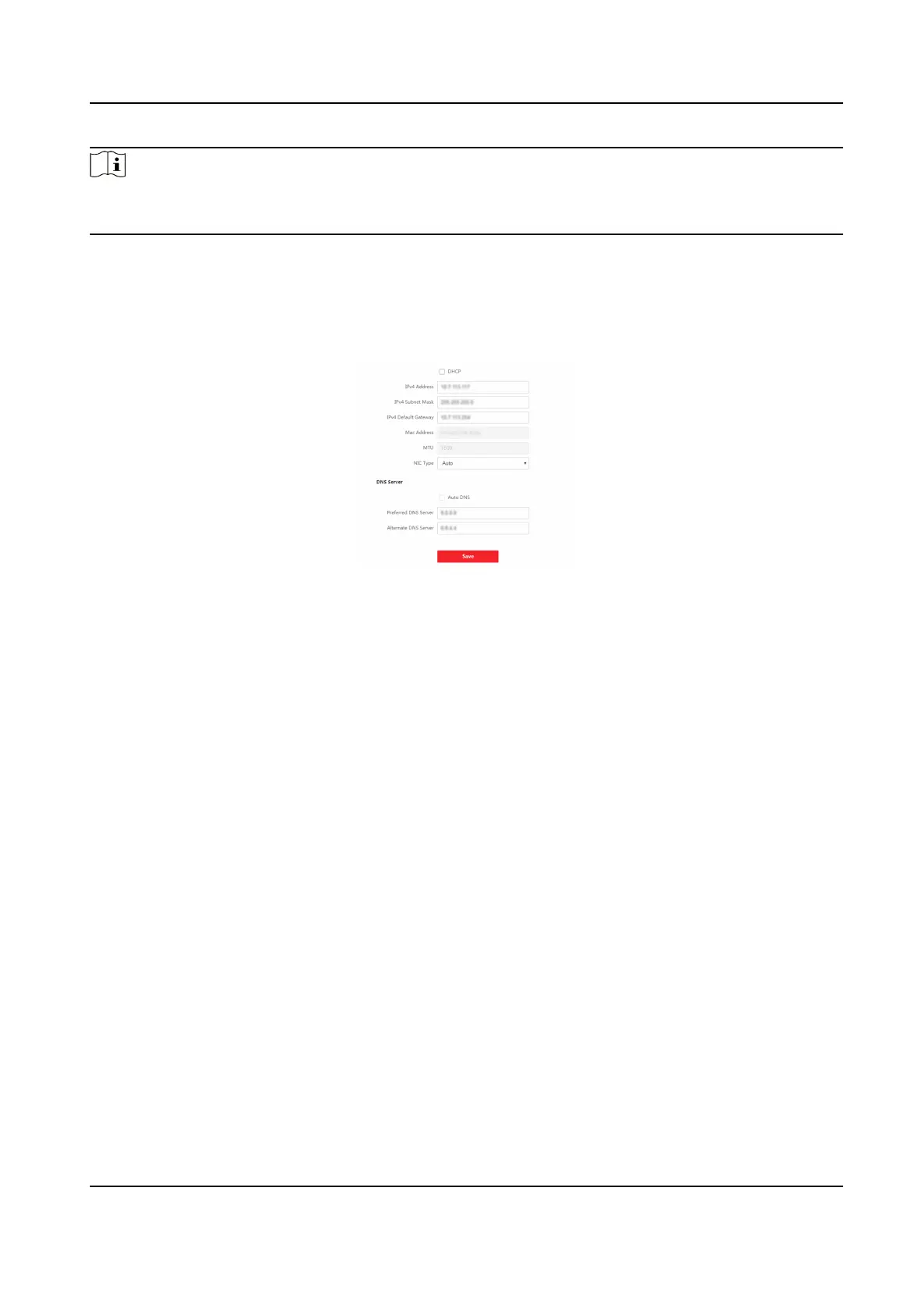

Figure 8-5 TCP/IP Sengs Page
Set the parameters and click Save to save the sengs.
DHCP
If uncheck the funcon, you should set the IPv4 address, IPv4 subnet mask, IPv4 default
gateway, MTU, and the device port.
If you check the
funcon, the system will allocate the IPv4 address, IPv4 subnet mask, and the
IPv4 default gateway
automacally.
NIC Type
Select a NIC type from the drop-down list. By default, it is Auto.
DNS Server
Set the preferred DNS server and the Alternate DNS server according to your actual need.
Set Port Parameters
Set the HTTP, RTSP, HTTPS and Server port parmaeters.
Click Conguraon → Network → Basic Sengs → Port .
HTTP
It refers to the port through which the browser accesses the device. For example, when the
HTTP Port is
modied to 81, you need to enter hp://192.0.0.65:81 in the browser for login.
RTSP
Face Recognion Terminal User Manual
73

HIKVISION DS-K1T642MFW Specifications

General

Type	-
Log capacity	150000
Product color	Black
Cards capacity	10000 cards
RFID frequency	13.56 MHz
Languages support	ARA, ENG, ESP, THA, POR, RUS, VIE
Recommended usage	Indoor
Fingerprint reader	Yes
Authentication type	Access chip/card, Biometric, Face recognition
Access chip/card reader type	Contactless
RS-485 ports	1
Cabling technology	10/100/1000
Supported network protocols	ISUP 5.0, ISAPI, NetSDK, HikCentral Pro OpenAPI, Hik-ProConnect OpenAPI
Display diagonal	4.3 \
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	0 - 90 %
Total megapixels	2 MP
Front camera type	Dual camera
Viewing angle, vertical	75.5 °
Viewing angle, horizontal	41.5 °

Weight and Dimensions

Depth	20 mm
Width	118 mm
