HIKVISION DS-K1T6QT-F43EW User Manual

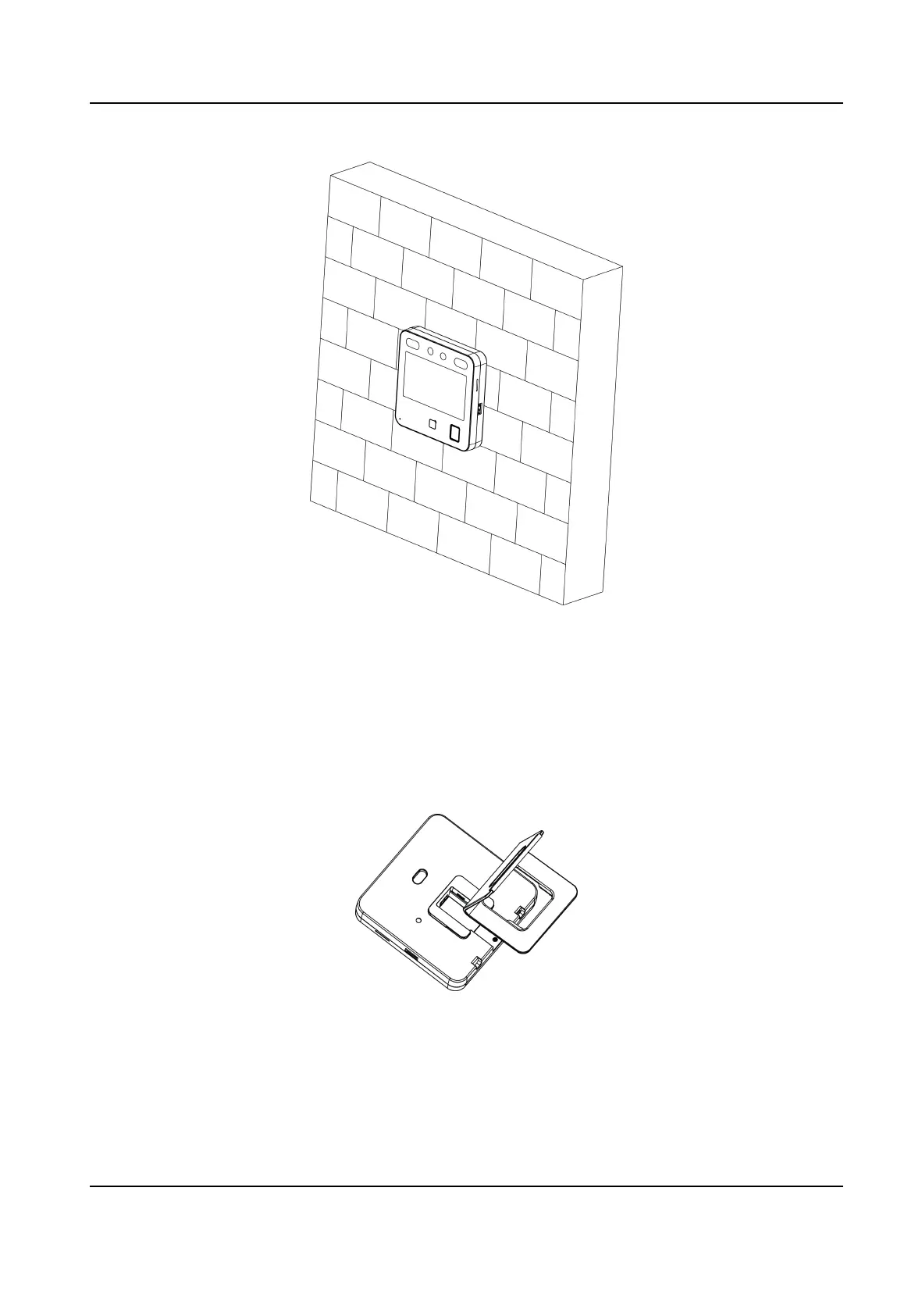

Figure 3-3 Secure Device
3.3 Base
Mounng
Steps
1.
Route the cables through the cable hole of the bracket, and connect the terminals with
peripherals cables. Place the bracket close to the back side of the device.
Figure 3-4 Place Bracket Close to Device Back Side
2.
Press the bracket with both hands, and make sure that the buckle of the bracket ts with the
back side of the device. Fasten the bracket in the direcon of the arrow.
DS-K1T6QT-F43 Series Face Recognion Terminal User Manual
7

HIKVISION DS-K1T6QT-F43EW Specifications

General

Brand	HIKVISION
Model	DS-K1T6QT-F43EW
Category	IP Access Controllers
Language	English
