Chapter 3 Mounting Applications
Before you start:
 For cement wall, you need to use the expansion screw to fix the mount. The mounting hole of
the expansion pipe on the wall should align with the mounting hole on the mount.
 For wooden wall, you can just use the self-tapping screw to fix the mount.
 The wall must be thick enough to install the expansion screws.
 Please make sure that the wall is strong enough to withstand more than 8 times the weight of
the dome and the mount.
3.1 Wall Mounting Applications
3.1.1 Components
 Wall Mount

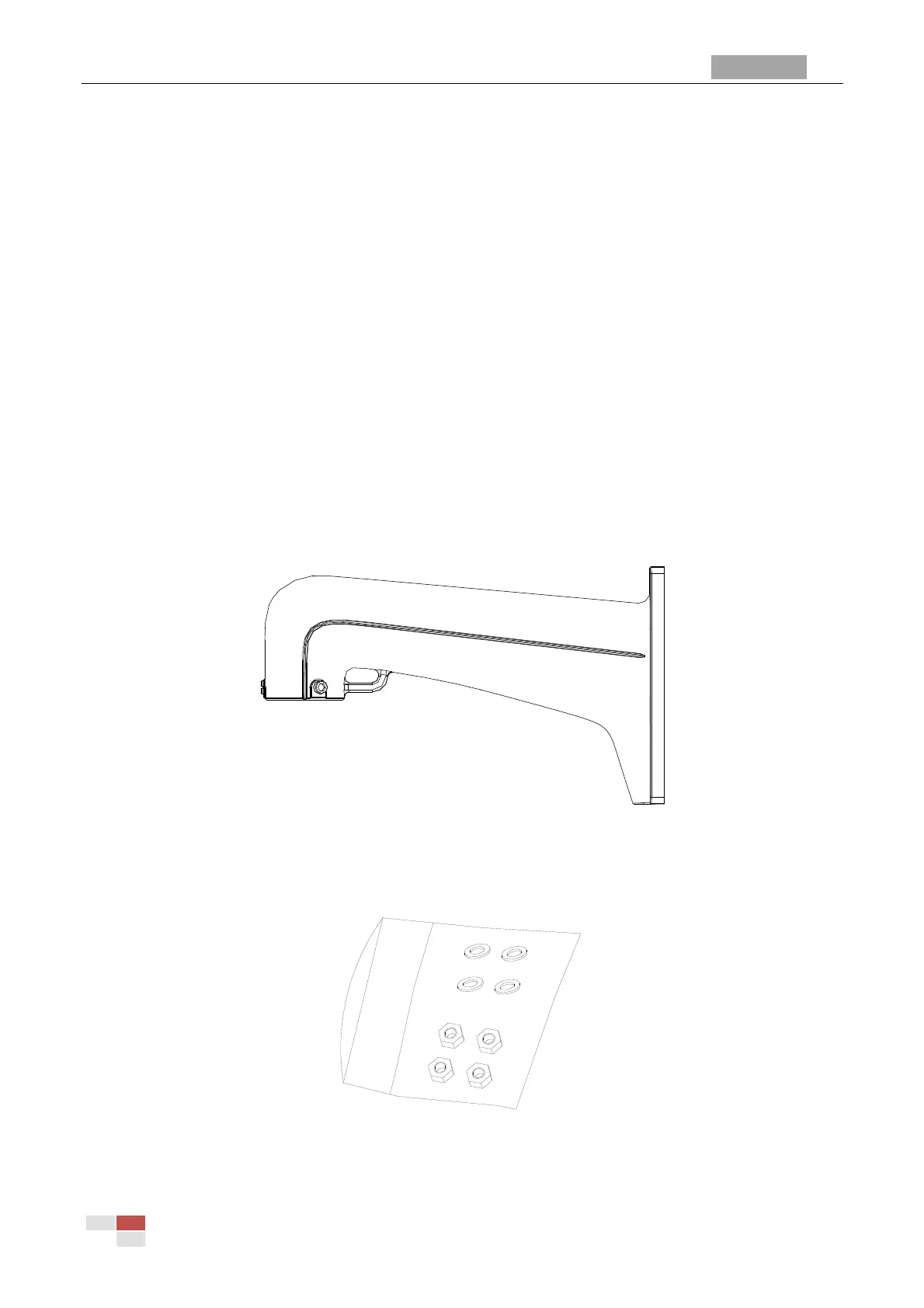

Figure 3-1 Wall Mount
 Mounting Accessories
Figure 3-2 Nuts and Flat Washers
