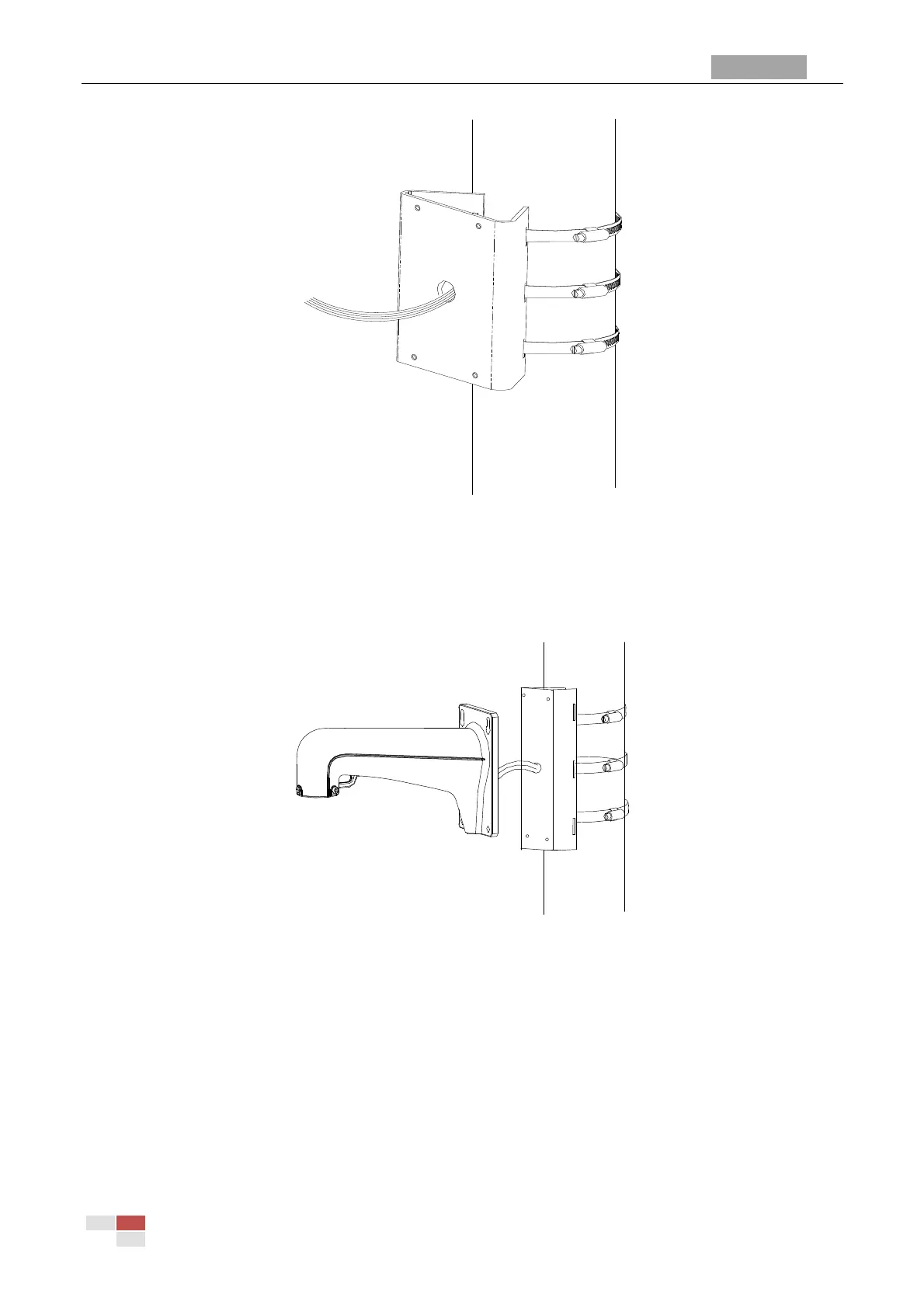

Figure 3-16 Install the Pole Adapter
Note: For outdoor applications, please adopt the water-proof measures.
3. Install the wall mount.
(1) Attach the gasket then wall mount to the pole adapter.
(2) Secure the wall mount to the pole adapter with 4 hex screws and the spring washers.
Figure 3-17 Install the Wall Mount
4. Install the speed dome to the mount. Please refer to Section 1.1 Installation and Cabling for
installation details.
To Next Page
