Digital Video Recorder User Manual
115

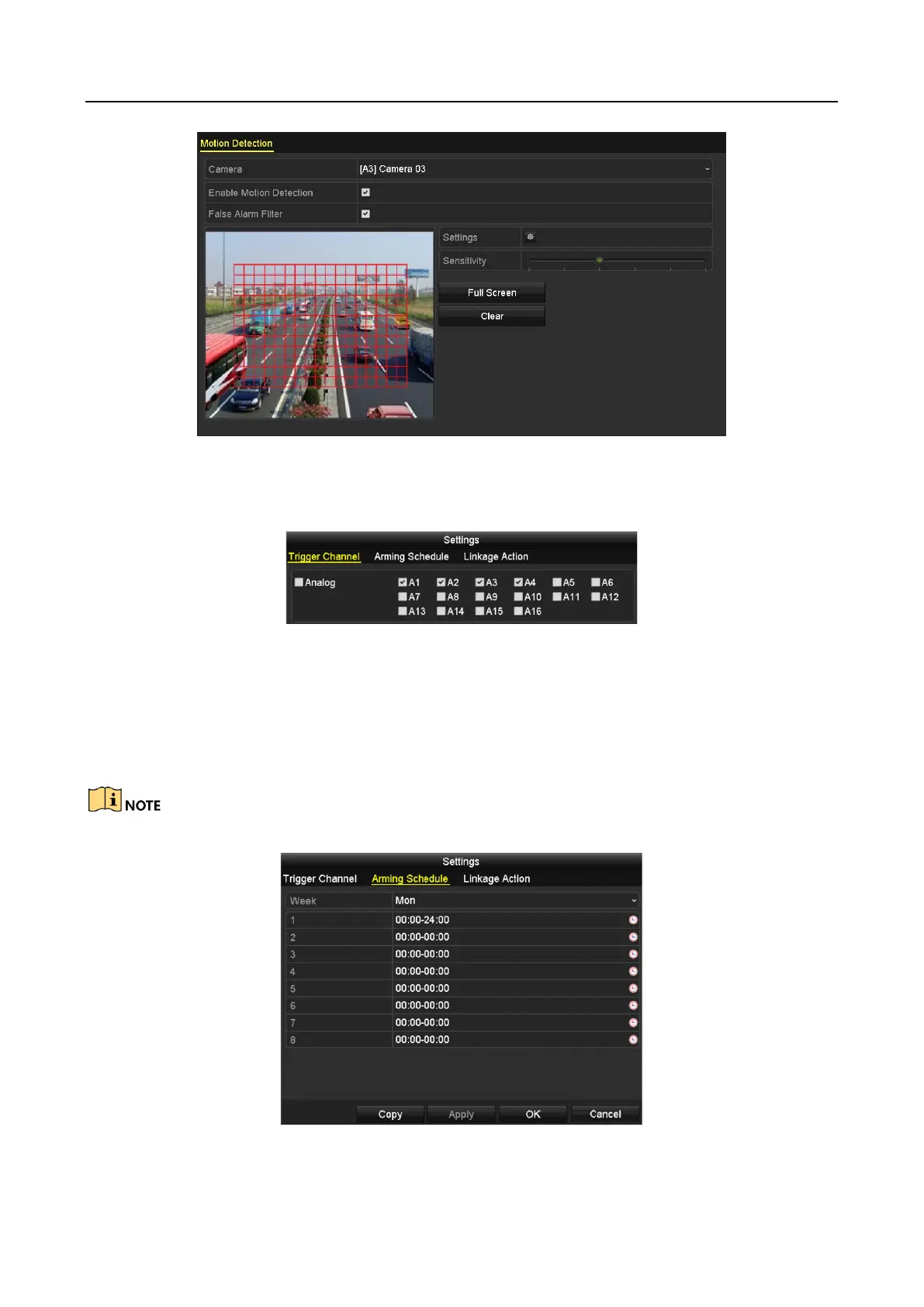

Figure 8-2 Set Detection Area and Sensitivity
Step 4 Click Trigger Channel tab and select one or more channels which will start to record or
become full-screen monitoring when motion alarm is triggered.
Figure 8-3 Set Trigger Camera of Motion Detection
Step 5 Set arming schedule of the channel.
Select Arming Schedule tab to set the channel’s arming schedule.
Choose one day of a week and up to eight time periods can be set within each day. Or you
can click the Copy button to copy the time period settings to other day(s).
Time periods shall not be repeated or overlapped.
