The indicates the start/end time of the recorded video files.

Playback progress bar: use the mouse to click any point of the progress bar or drag the
progress bar to locate specific frames.

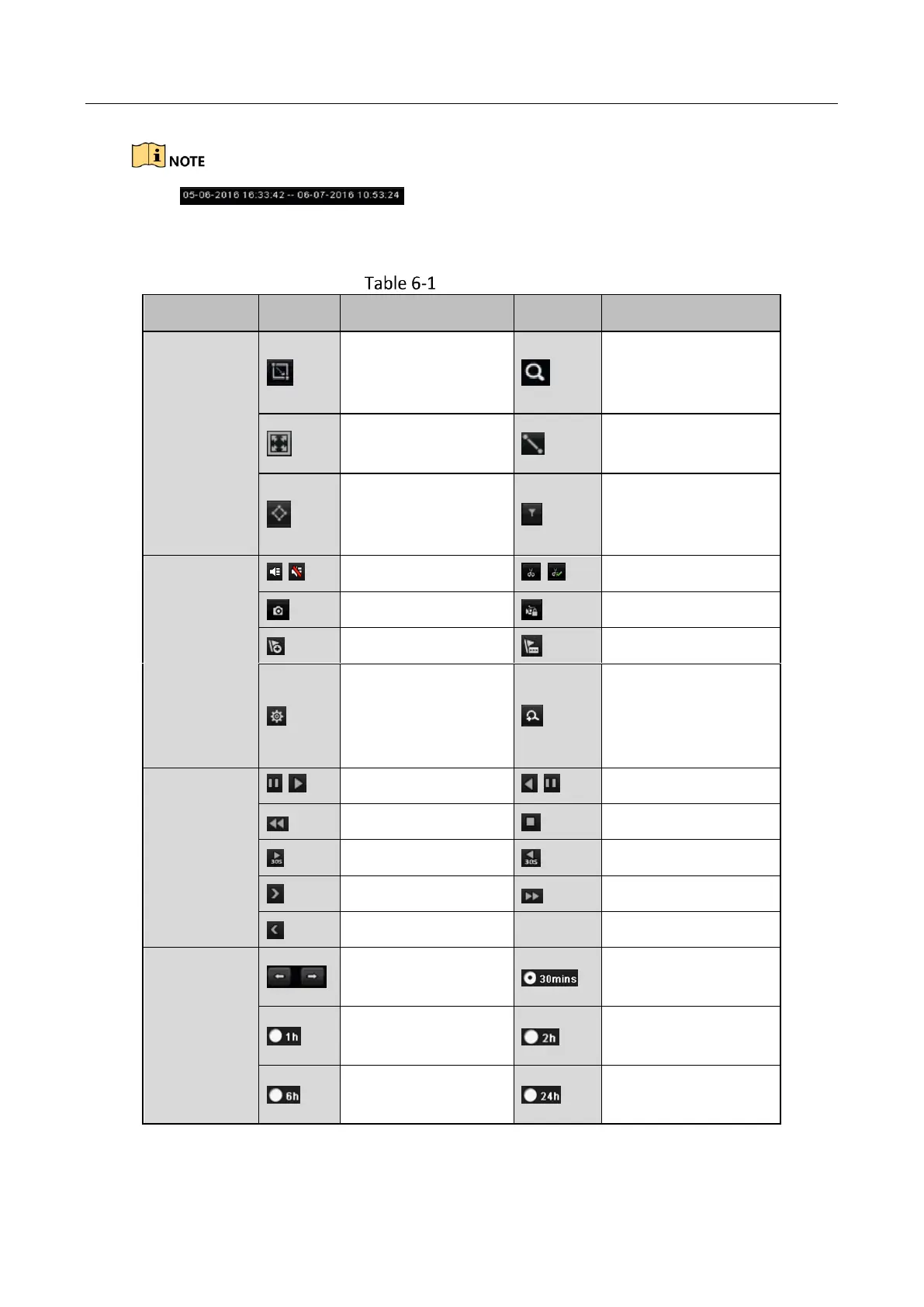

Detailed Explanation of Playback Toolbar
Item
Button
Operation
Button
Operation
Smart
Search
Draw quadrilateral
for the motion
detection
Search the matched
video
Set full screen for
motion detection
Draw line for the line
crossing detection
Draw quadrilateral
for the intrusion
detection
Filter video files by
setting the target
characters
Operations
/
Audio on/Mute
/
Start/Stop clipping
Capture Picture
Lock File
Add default tag
Add customized tag
File management for
video clips, captured
pictures, locked files
and tags
Digital Zoom
Playing
Control
/
Pause/Play
/
Reverse play/ Pause
Slow forward
Stop
30s forward
30s reverse
Next day
Fast forward
Previous day
Time Bar
Scaling
Previous/Next
period
Play the time bar in
30 minutes (default)
Play the time bar in 1
hour
Play the time bar in 2
hours
Play the time bar in 6
hours
Play the time bar in
24 hours

HIKVISION HWN-2104H-4P Specifications

General

Input bandwidth	40 Mbit/s
Output bandwidth	60 Mbit/s
Maximum resolution	1920 x 1080 pixels
Video input channels	4 channels
Supported resolutions	1920x1080, 1280x1024, 1280x720, 1024x768
Video formats supported	H.264, H.264+, H.265, H.265+
Wi-Fi	No
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	0
Number of HDDs supported	1
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	5
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP
Output voltage	48 V
Product color	White
Rack capacity	1U
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	205 mm
Width	200 mm
Height	48 mm
Weight	1000 g
