HIKVISION HWN-2104H-4P User Manual

Network Video Recorder User Manual
74
Click the Start button and click corresponding buttons in the control panel to move the PTZ
camera, and click the Stop button to stop it.
The movement of the PTZ is recorded as the pattern.
Calling Patterns
Purpose:
Follow the procedure to move the PTZ camera according to the predefined patterns.
Click the button PTZ in the lower-right corner of the PTZ setting interface;
Or press the PTZ button on the front panel or click the PTZ Control icon in the quick
setting bar, or select the PTZ option in the right-click menu to show the PTZ control panel.
Click the button to show the general settings of the PTZ control.

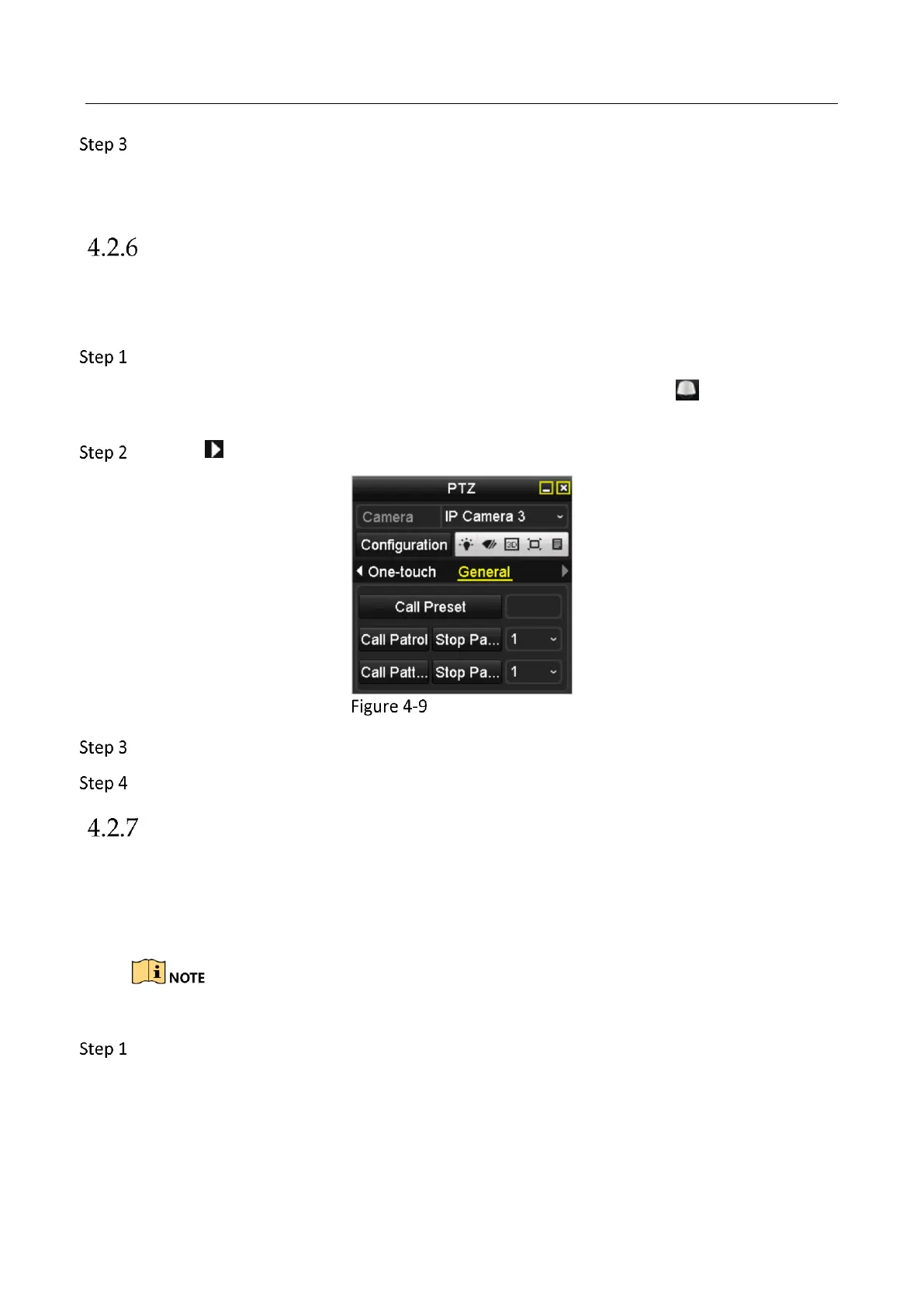

PTZ Panel - General
Click the Call Pattern button to call it.
Click the Stop Pattern button to stop calling it.
Customizing Linear Scan Limit
Purpose:
The Linear Scan can be enabled to trigger the scan in the horizantal direction in the predefined
range.
This function is supported by some certain models.
Enter the PTZ Control interface.
Menu > Camera > PTZ

HIKVISION HWN-2104H-4P Specifications

General

Input bandwidth	40 Mbit/s
Output bandwidth	60 Mbit/s
Maximum resolution	1920 x 1080 pixels
Video input channels	4 channels
Supported resolutions	1920x1080, 1280x1024, 1280x720, 1024x768
Video formats supported	H.264, H.264+, H.265, H.265+
Wi-Fi	No
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	0
Number of HDDs supported	1
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	5
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP
Output voltage	48 V
Product color	White
Rack capacity	1U
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	205 mm
Width	200 mm
Height	48 mm
Weight	1000 g
