HIKVISION HWN-2104H-4P User Manual

Network Video Recorder User Manual
15
Panel Description
No.
Name
Description
1
Status
Indicator
Power
Power indicator turns green when system is
running.
Status
Status indicator blinks red when data is being
read from or written to HDD.
Tx/Rx
Tx/Rx indictor blinks green when network
connection is functioning properly.
2
USB Interface
Universal Serial Bus (USB) ports for additional
devices such as USB mouse and USB Hard Disk
Drive (HDD).
HWN-2100, HWN-2100(M)H-W and HWN-4200MH(-P) Series
The front panel vaires according to different models.
HWN-2100, HWN-2100(M)H-W and HWN-4200MH(-P) Series

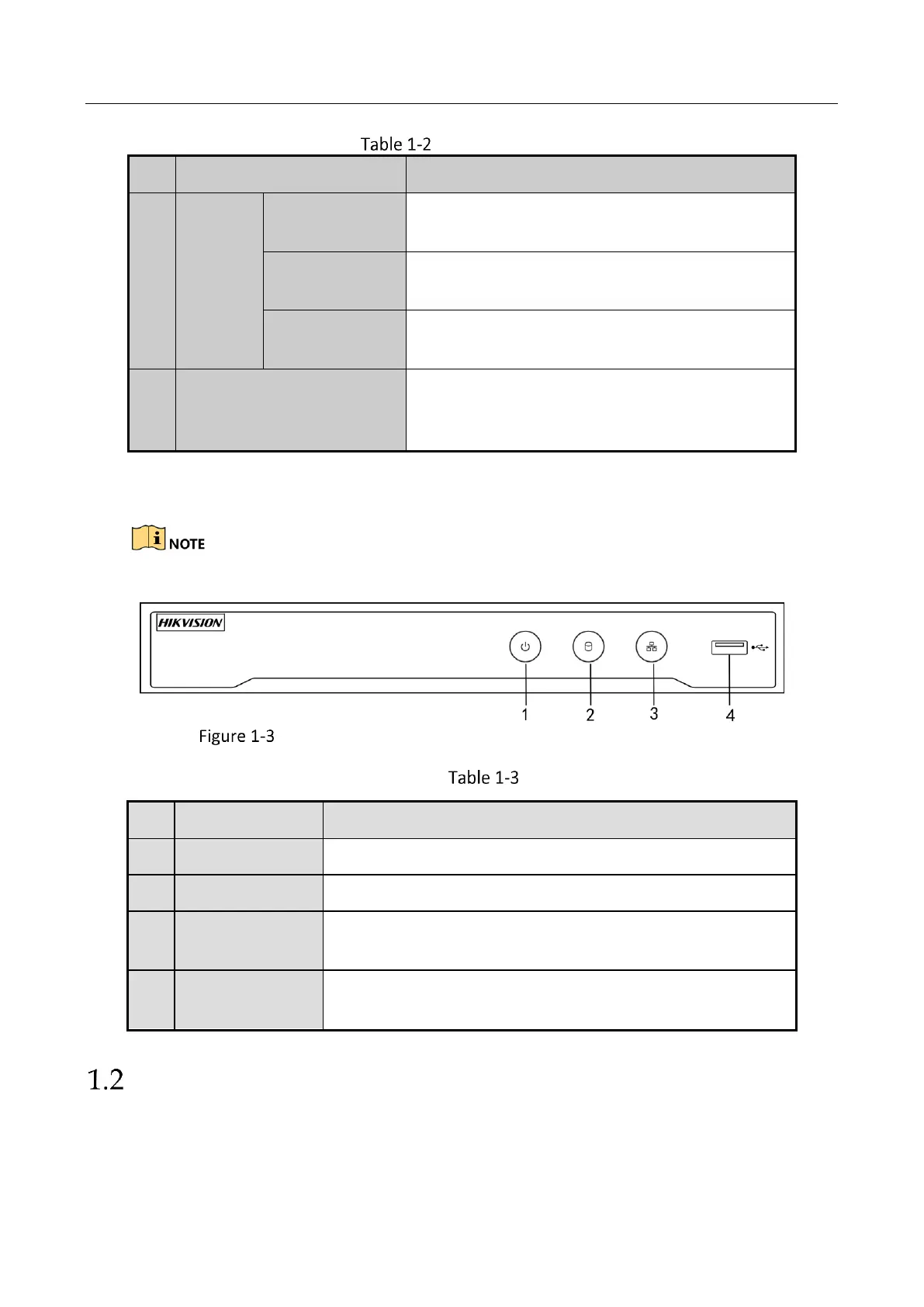

Panel Description
IR Remote Control Operations
The NVR may also be controlled with the included IR remote control, shown in Figure 1-4.
No.
Name
Connections
1
POWER
Turns green when NVR is powered up.
2
HDD
Flickers red when data is being read from or written to HDD.
3
Tx/Rx
Flickers blue when network connection is functioning
properly.
4
USB Interface
Universal Serial Bus (USB) port for additional devices such as
USB mouse and USB Hard Disk Drive (HDD).

HIKVISION HWN-2104H-4P Specifications

General

Input bandwidth	40 Mbit/s
Output bandwidth	60 Mbit/s
Maximum resolution	1920 x 1080 pixels
Video input channels	4 channels
Supported resolutions	1920x1080, 1280x1024, 1280x720, 1024x768
Video formats supported	H.264, H.264+, H.265, H.265+
Wi-Fi	No
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	0
Number of HDDs supported	1
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	5
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP
Output voltage	48 V
Product color	White
Rack capacity	1U
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	205 mm
Width	200 mm
Height	48 mm
Weight	1000 g
