Network Video Recorder User Manual
111

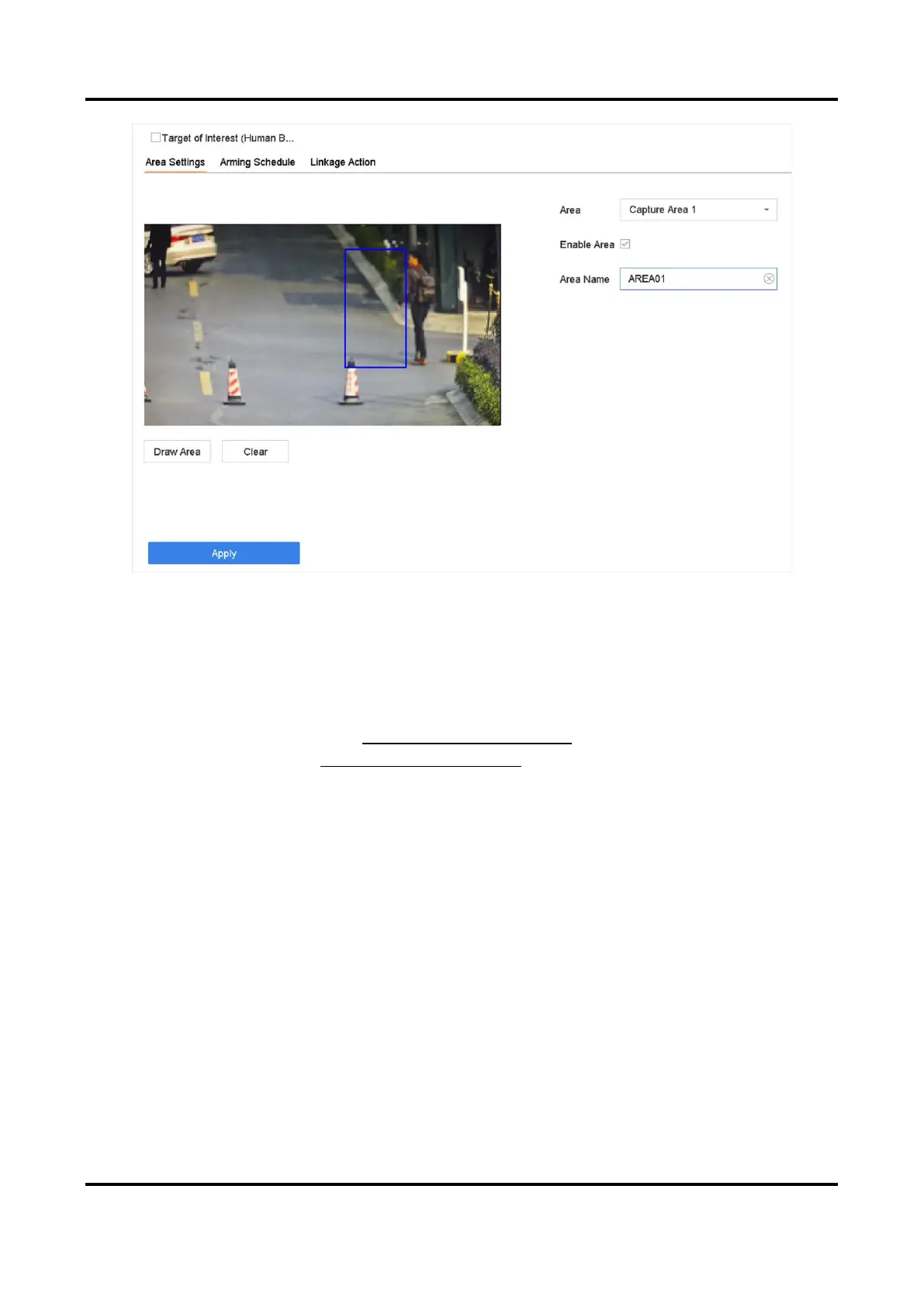

Figure 7-16 Human Body Detection
1) Select the detection area to configure from the Area drop-down list. Up to 8 detection areas
are selectable.
2) Check Enable Area to enable the selected detection area.
3) Edit the area name in Scene Name. The scene name can contain up to 32 characters.
4) Click Draw Area to draw a quadrilateral in the preview window and then click Stop Drawing.
8. Set the arming schedule. Refer to Configure Arming Schedule.
9. Set linkage actions. Refer to Configure Linkage Actions.
10. Click Apply to activate the settings.
7.6.2 Human Body Search
Search by Human Body Event
Search pictures by human body detection alarms.
Steps
1. Go to Smart Analysis → Smart Search → Human → Search by Event.
2. Set the start time and end time.
3. Select a channel.
4. Select Event Type as Human Body Alarm.
5. Click Start Search. The search result list displays 1 channel.
