2.2.2 iDS-7700NXI-I4/(16P)/16S(B) Series
Purpose:
The following section introduces the HDD installation for the iDS-7700NXI-I4/16S(B) series and
iDS-7700NXI-I4/16P/16S(B) series NVR. Take the example of iDS-7700NXI-I4/16S(B) to describe
installation steps.
Step 1 Remove the cover from the NVR by unfastening the screws on the rear and side panel.

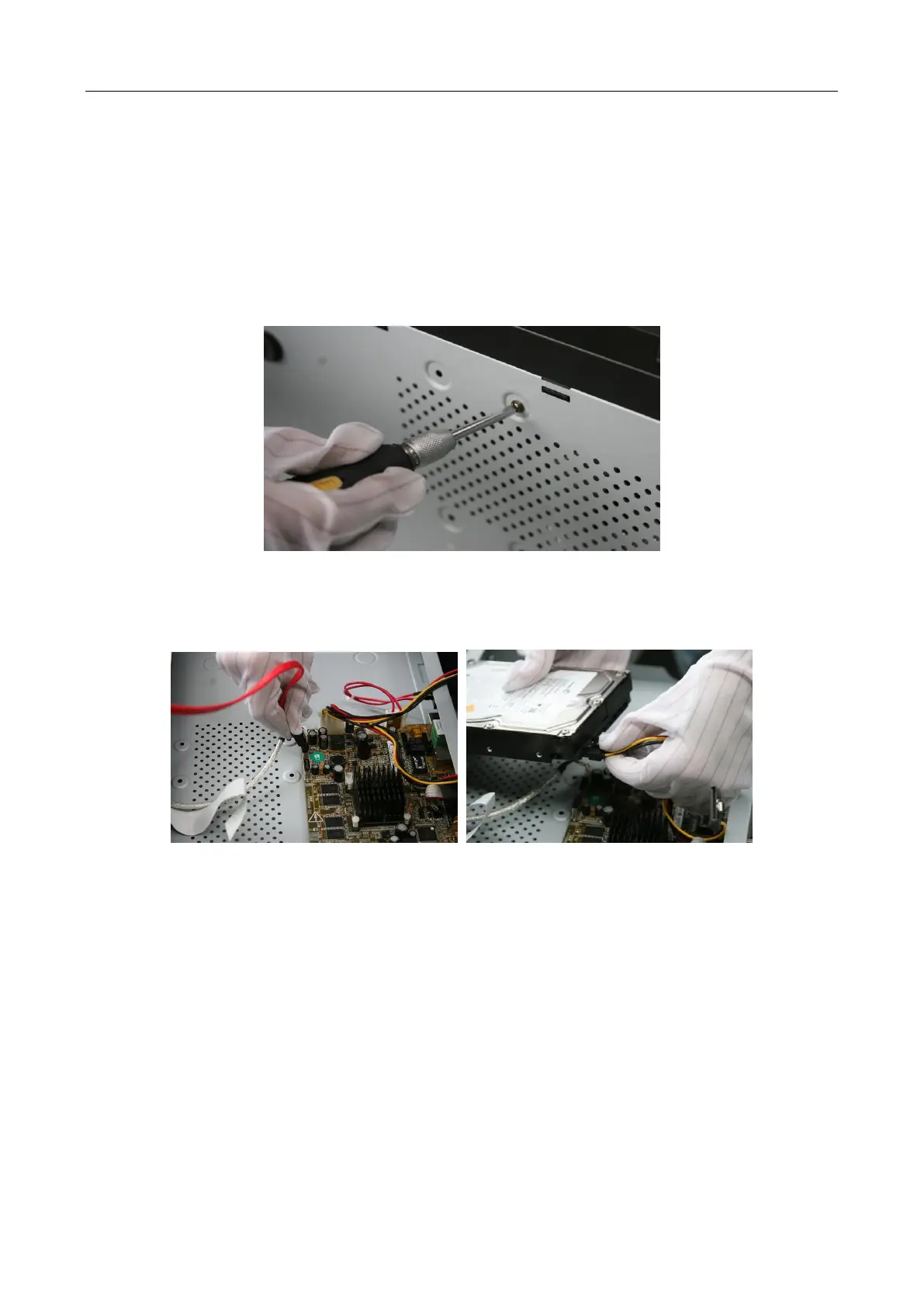

Figure 2-8 Remove Cover
Step 2 Connect one end of the data cable to the motherboard of NVR and the other end to the
HDD.
Figure 2-9 Connect Data Cable
Step 3 Connect the power cable to the HDD.
