Network Video Recorder Quick Start Guide
25

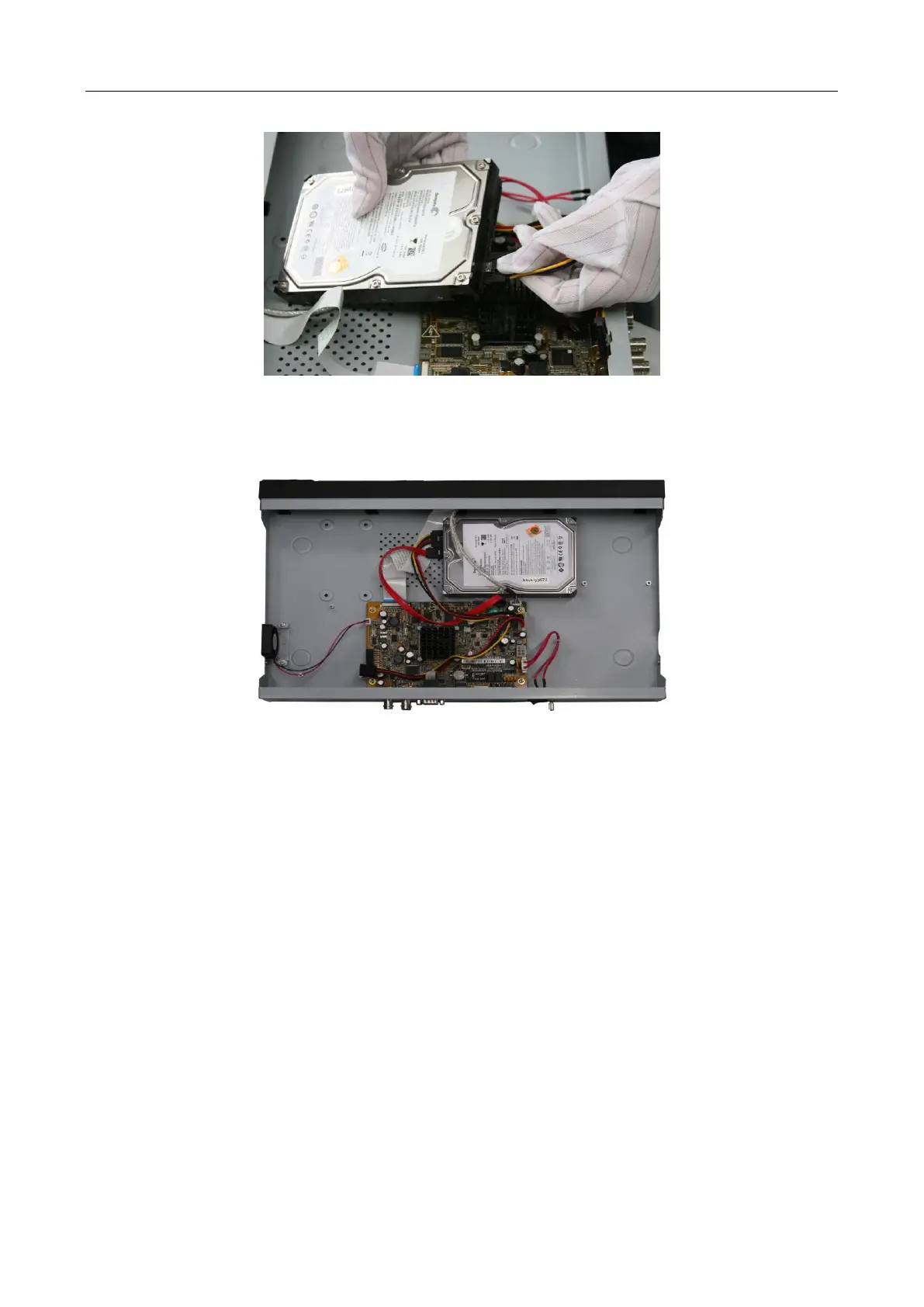

Figure 2-10 Connect Power Cable
Step 4 Place the HDD on the bottom of the device and then fasten the screws on the bottom to fix
the HDD.
Figure 2-11 Fix Hard Disk
2.2.3 Other Series
Purpose:
Here we take the example of HDD installation of iDS-9600NXI-I8/8F(B) Series to describe the steps.
Before you start:
Disconnect the power from the NVR before installing a hard disk drive (HDD). A factory
recommended HDD should be used for this installation.
Tools Required: Screwdriver.
Step 1 Fasten the hard disk mounting handle to the hard disk with screws.
To Next Page
