Network Video Recorder Quick Start Guide
32

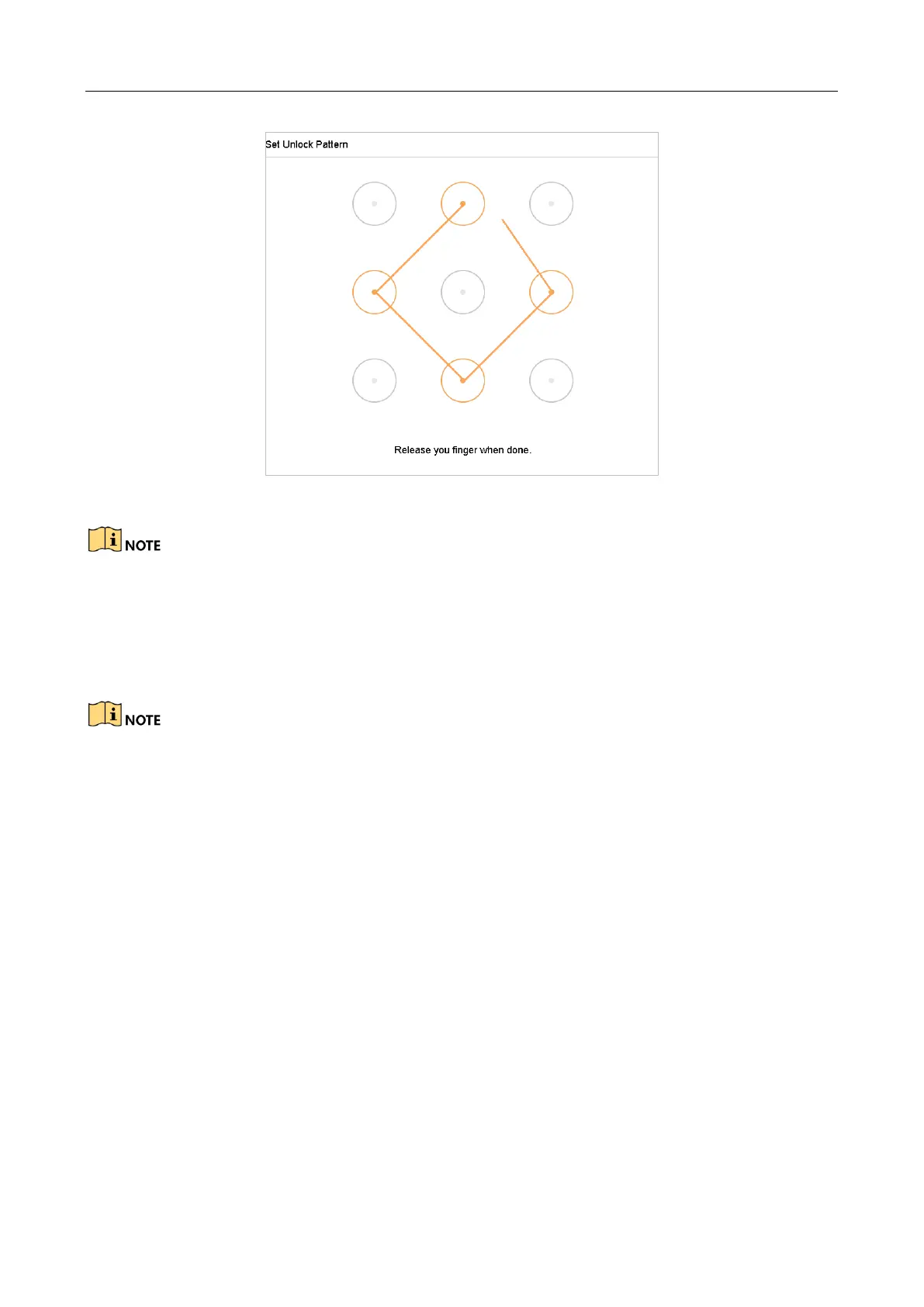

Figure 3-3 Draw the Pattern
Connect at least 4 dots to draw the pattern.
Each dot can be connected for once only.
Step 3 Draw the same pattern again to confirm it. When the two patterns match, the pattern is
configured successfully.
If the two patterns are different, you must set the pattern again.
3.4 Log into the System
Purpose:
If the device has logged out, you must log in the device before operating the menu and other
functions. You can select to log in by unlock pattern or passwrod input either.
Step 1 Right click the mouse on the screen and select the menu to enter the interface.
Step 2 Select the User Name in the dropdown list.
To Next Page
