HIKVISION K1108AMK Series User Manual

3.
Align the device with the mounng plate, and secure the device on the mounng plate with 1
supplied screw (SC-M3X8NL-SUS316L-GB78).

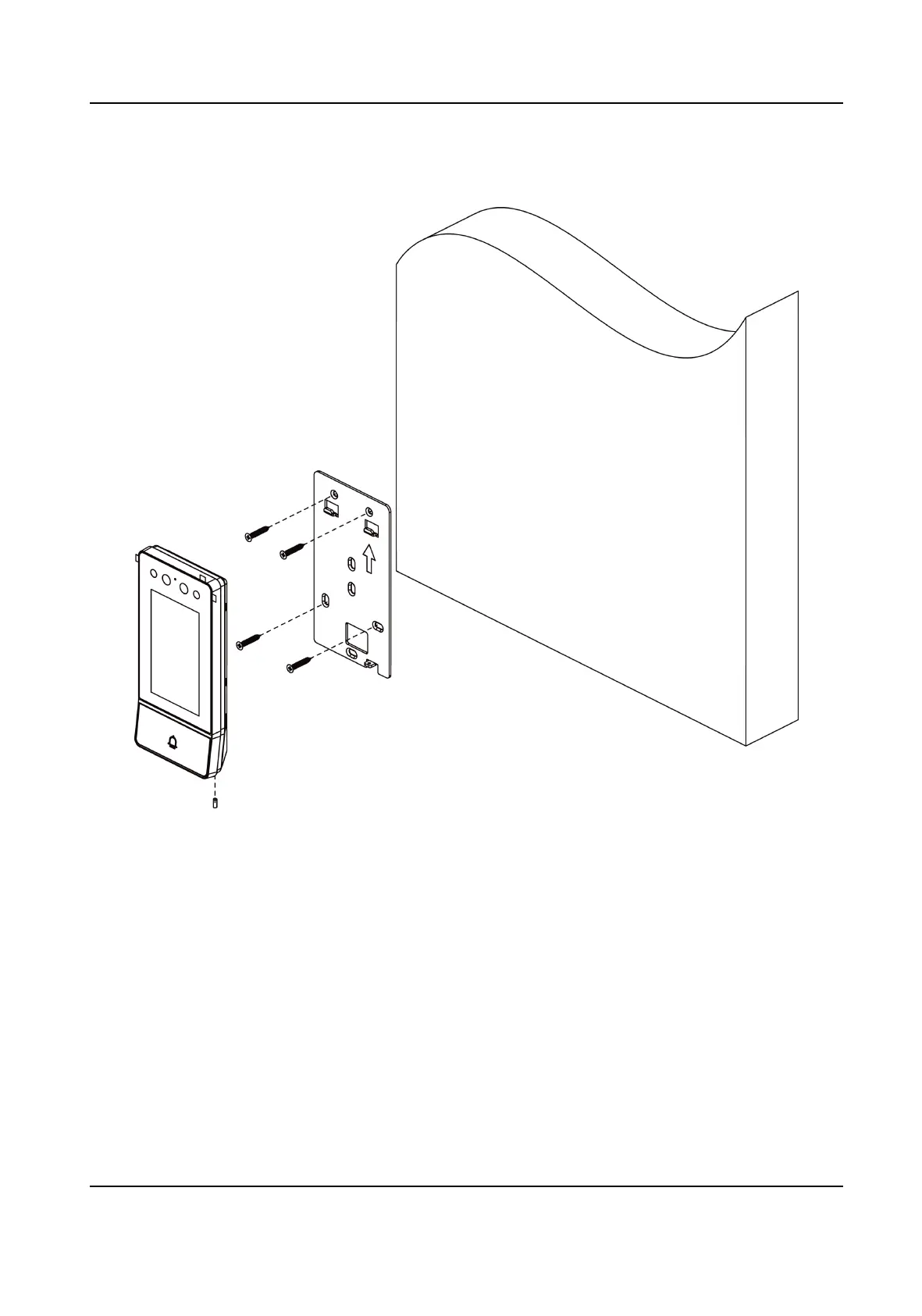

Figure 3-3 Surface Mounng
3.3 Flush
Mounng
Steps
1.
Make sure the gang box is installed on the wall.
2.
Secure the
mounng plate on the gang box with the four supplied screws (SC-KA4X25).
3.
Remove the back cover and route the cable through the cable hole, wire the cables and insert
the cables in the gang box.
4.
Align the device with the
mounng plate, and secure the device on the mounng plate with 1
supplied screw (SC-M3X8NL-SUS316L-GB78).
Video Intercom Villa Door Staon User Manual
8
