Digital Video Recorder User Manual
56
Alarm Input
Set linkage actions for an external sensor alarm.
Steps
1. Go to Configuration → Event → Normal Event → Alarm Input.

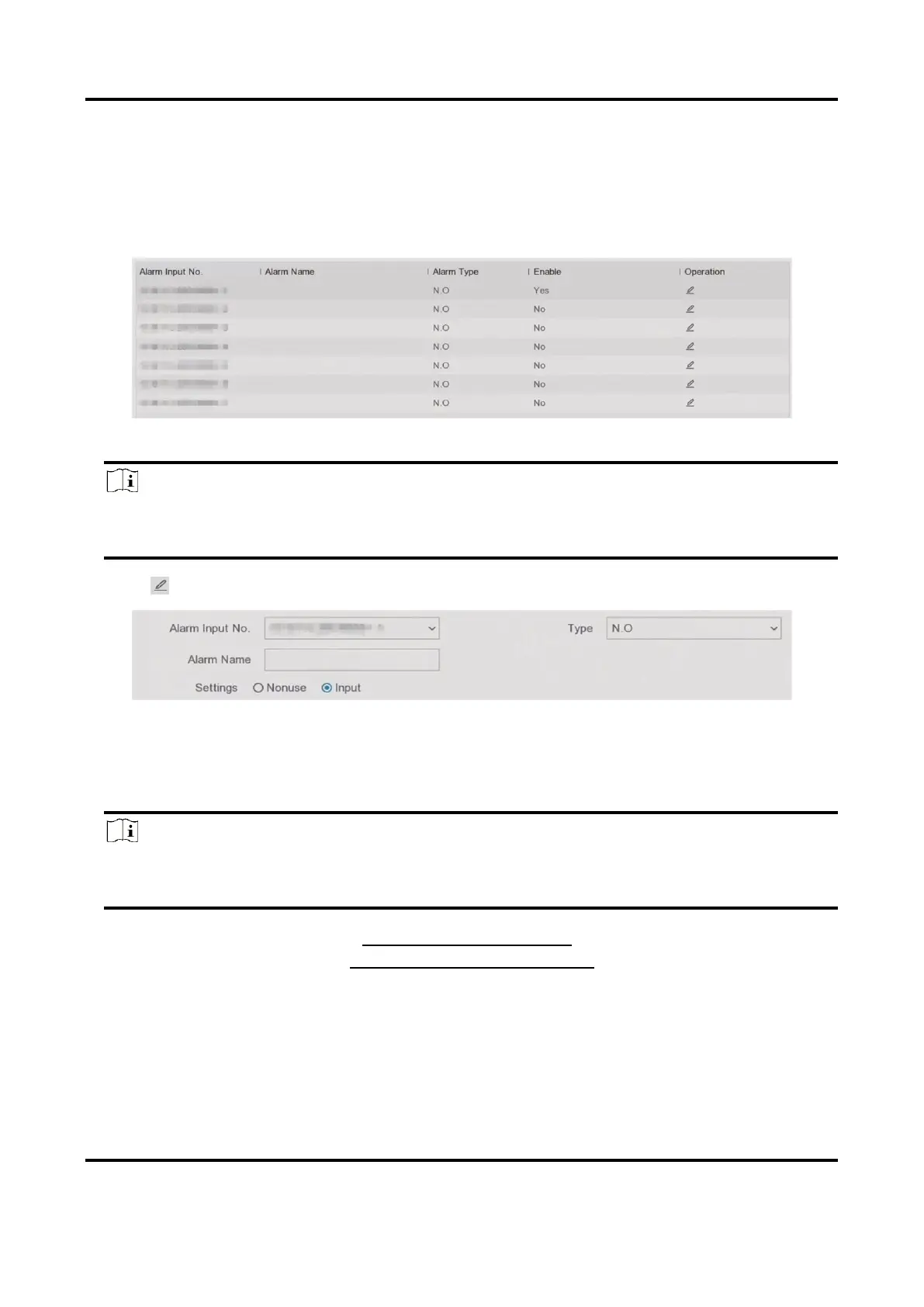

Figure 6-16 Alarm Input
Note
Local alarm input: Local alarm input is triggered by the external device that connected to the
video recorder's terminal block.
2. Click of a desired alarm input.
Figure 6-17 Edit Alarm Input
3. Customize Alarm Name.
4. Set alarm type as N.O (normally open) or N.C (normally closed).
5. Set Settings as Input to enable the function.
Note
If you set Settings as Nonuse, the alarm input will be disabled. If you set Settings as One-Key
Disarming, the selected linkage method(s) of the alarm input will be disabled.
6. Set the arming schedule. Refer to Configure Arming Schedule for details.
7. Set the linkage actions. Refer to Configure Alarm Linkage Action for details.
8. Click Apply.
