NOTE
Used to draw attention to an instruction or other
useful information.

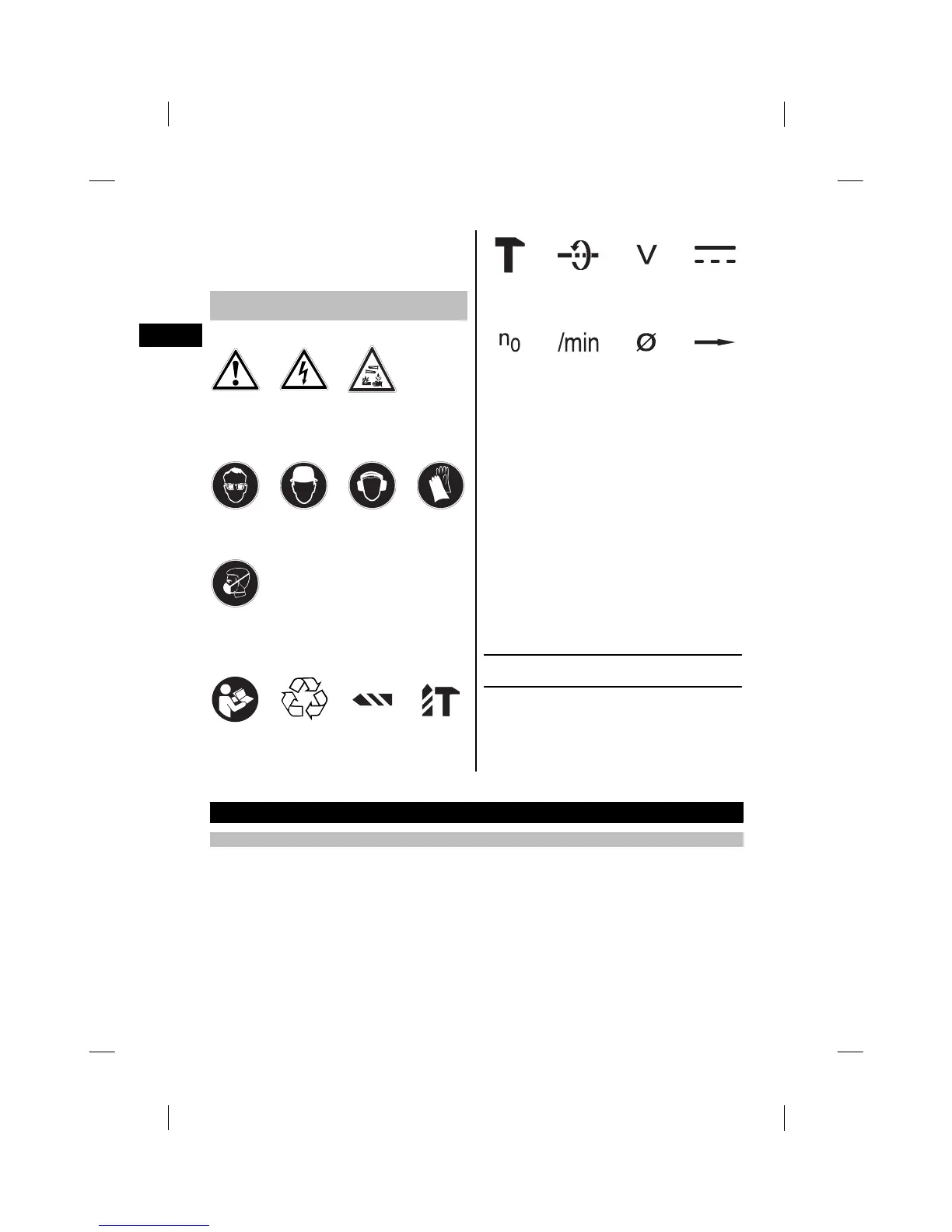

1.2 Explanation of the pictograms and other
information
Warning signs
General
warning
Warning:
electricity
Warning:
caustic
substances
Obligation signs
Wear eye
protection
Wear a hard
hat
Wear ear
protection
Wear
protective
gloves
Wear
breathing
protection
Symbols
Read the
operating
instructions
before use.
Return waste
material for
recycling.
Drilling
without
hammering
Hammer
drilling
Chiseling Chisel position
adjustment
Volts Direct current
Rated speed
under no load
Revolutions
per minute
Diameter Forward /
reverse
1 These n umbers refer to the corresponding illustra-
tions. The illustrations can be found on the fold-out
cover pages. Keep these pages open while studying
the operating instructions.
In these operating instructions, the designation “the
power tool” always refers to the TE 7-A cordless
rotary hammer.
Location of identification data on the power tool
The type designation can be found on the type iden-
tification plate and the serial number on the side of
the motor housing. Make a note of this data in your
operating instructions and always refer to it when
making an enquiry to your Hilti representative or
service department.
Type:
Serial no.:
2. Description
2.1 Use of the product as directed
The power tool is a cordless rotary hammer with pneumatic hammering mechanism.
The power tool is intended for drilling in concrete, masonry, metal and wood. The power tool can also be used
for light chiseling work on masonry and surface finishing on concrete.
Working on materials hazardous to the health (e.g. asbestos) is not permissible.
The power tool is designed for professional use and may be operated, serviced and maintained only by trained,
authorized personnel. This personnel must be informed of any special hazards that may be encountered. The
power tool and its ancillary equipment may present hazards when used incorrectly by untrained personnel or
when used not as directed.
