2.6 Diode Check
24

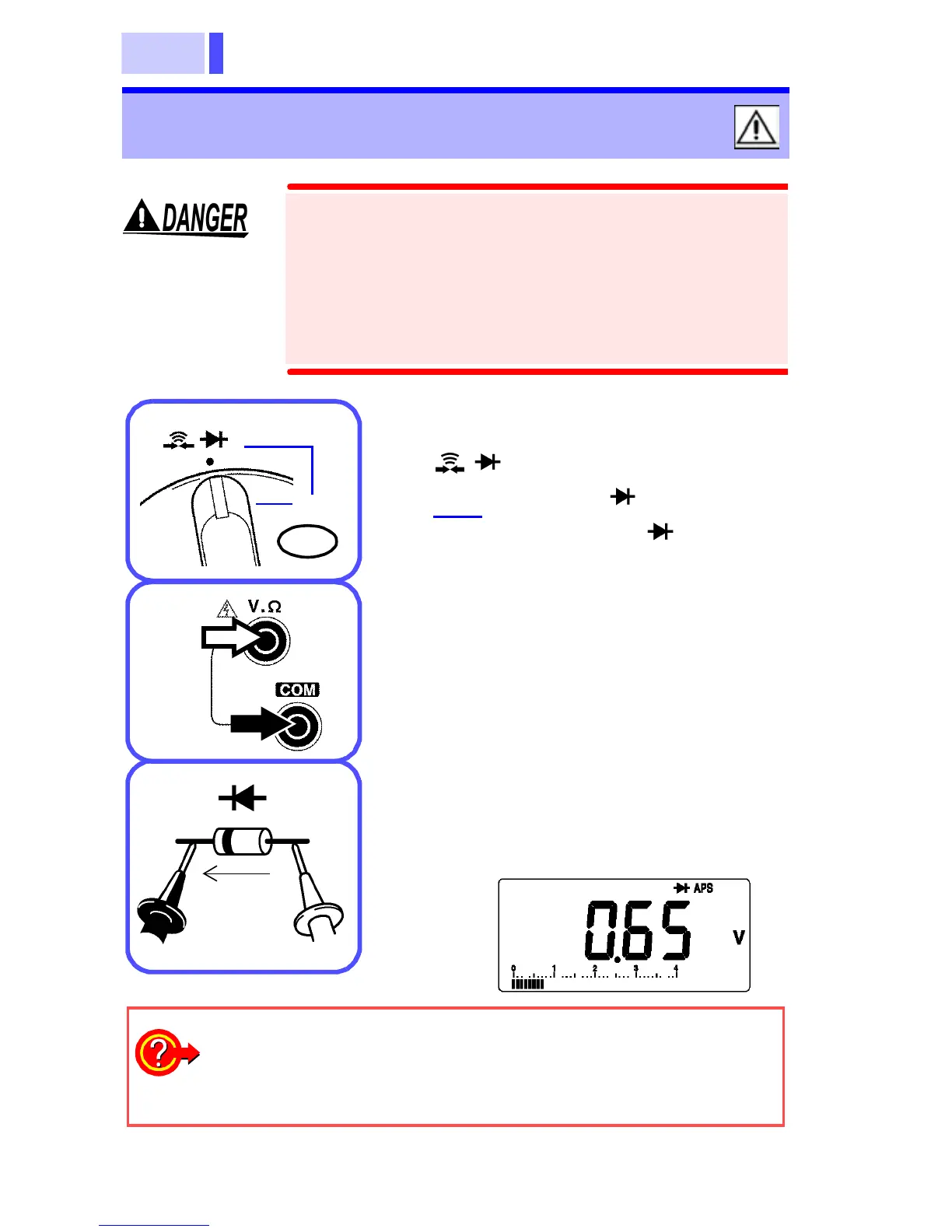

2.6 Diode Check
• Never apply voltage to test leads when
the Diode Check function is selected.
Doing so may damage the product and
result in personal injury.
• To avoid electrical accidents, remove
power from the circuit before measuring.
Appearance of O.F: The diode is invertedly connected or
broken.
Appearance at approxi-
mately 0 V:
The diode is short-circuited.
1. Move the function selector to th
e
position.
2. Select Diode ( ) using th
e
REC•MEMO button ( lights up
).
3. Connect the red test lead to te
r-
minal V.Ω, and the black test lea
d
to terminal COM.
4. Connect the test leads to th
e
measurement object.
The display shows forward vol
t-
age (0.4 V to 0.7 V) for a norma
l
diode.
REC•MEMO
Cathode Anode
Black
Red
Black
Red
