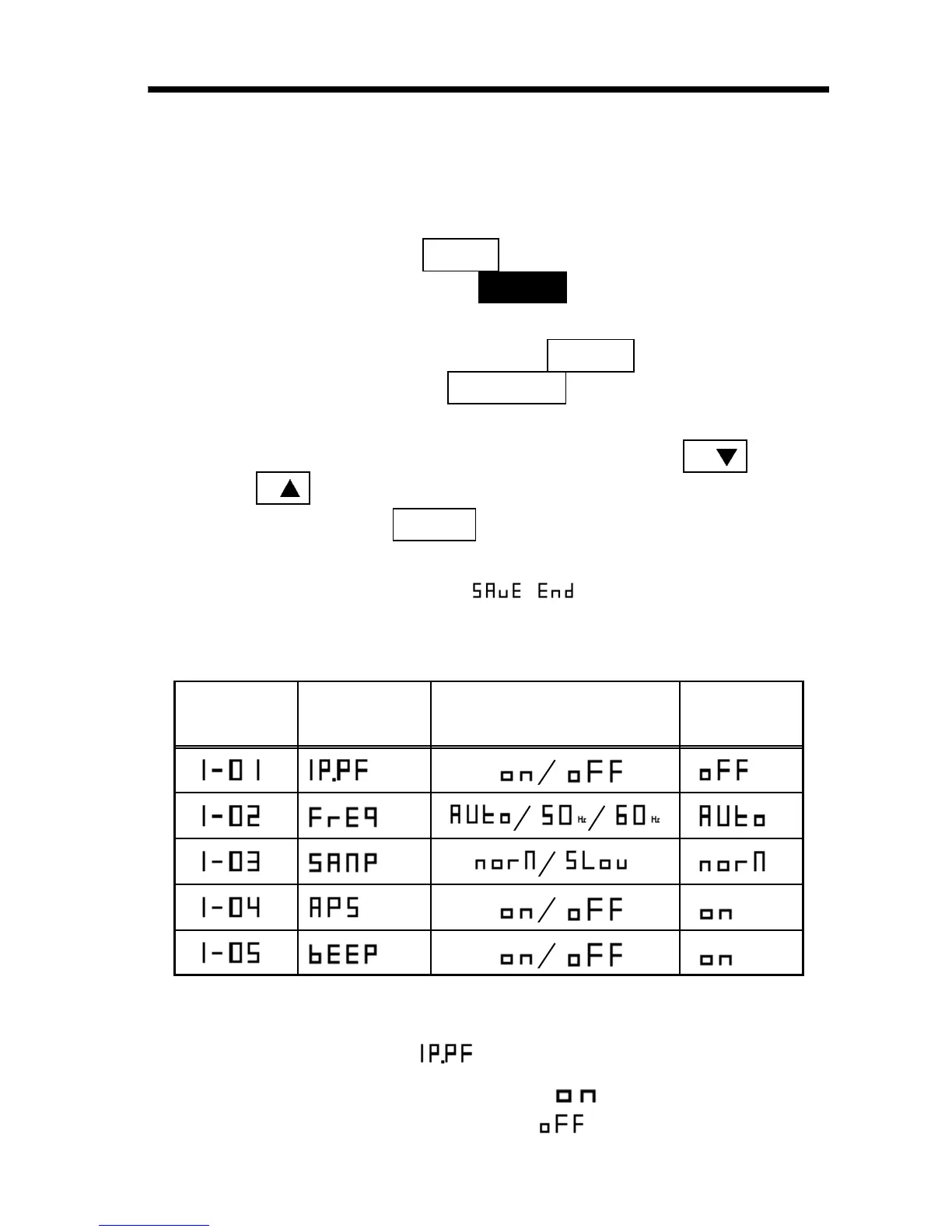

Chapter 2 Measurement Procedure
Display 1
Item No.
Display 2
Item Name
Display 3
Setting
Initial
Value
2.9 SETUP Function
The settings for this unit are made in SETUP mode.
In SETUP mode, you can make settings for
measurements, display, and ancillary functions.
1. Hold down the
SET1
keywhilepoweringonthe
unit by pressing the
POWER
key. This activates
SETUP mode.
2. Select a setting item. The
MODE
key increments
the item No.; the
MAX/MIN
key decrements the
item No.
3. The settings can be modified using the
U/
key or
I/
key.
4. Pressing the
HOLD
key twice in succession restores
the initial values for the setting items.
5. At unit power-off, " " (SAVE END)
appears and the settings are saved.
6. Details of Settings
(1) Setup of single-phase power meter system
Item No. 1-01
ON Sets 1φ PF meter.
OFF Sets 1φ P meter.
