22
___________________________________________
Chapter 5 Sensor (Options)
___________________________________________
Operating
Temperature
-50 to 750
-58 to 1382
Allowable Heat
(Handle)
150
302
Protective Shield
Material
SUS 316
Dielectric Strength 500 VAC for 1 minute
Insulation Resistance 100 M Ω or more (100 VDC)

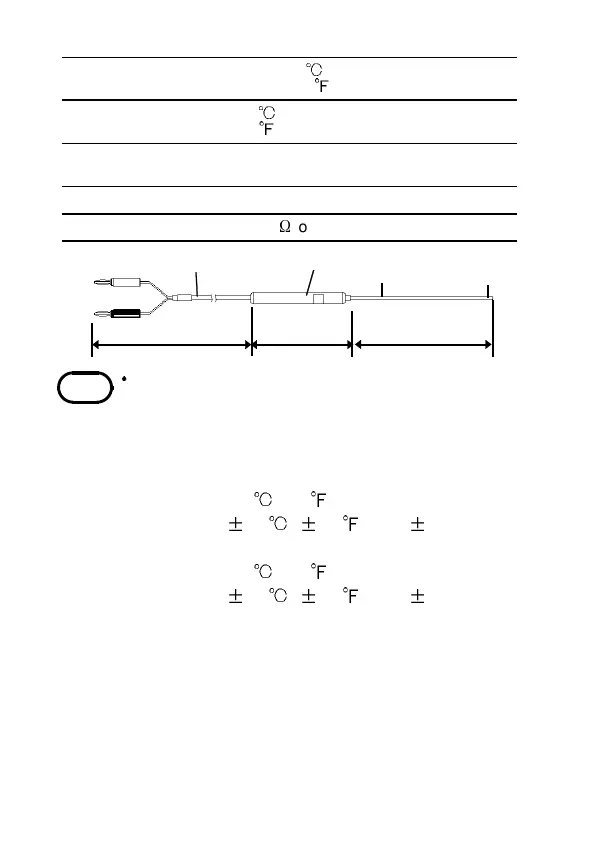

1000 (39.4")
100 (3.94")
φ3.2x150
(φ0.13"x5.9")
Compensation lead
Handle
Sheath
Measuring
point
NOTE
Thermocouple Allowance
The thermocouple used in the temperature
probe complies with specifications for Class 1
and Class 2 provided in IEC 584. For the
permitted tolerances, refer to the following:
Class 1: At -40
(-40 ) and more, the greater
of
1.5 ( 2.7 )and 0.4% of the
measured value.
Class 2: At -40
(-40 ) and more, the greater
of
2.5 ( 4.5 )and 0.75% of
the measured value.
