Chapter 5 Sensor (Options)
___________________________________________

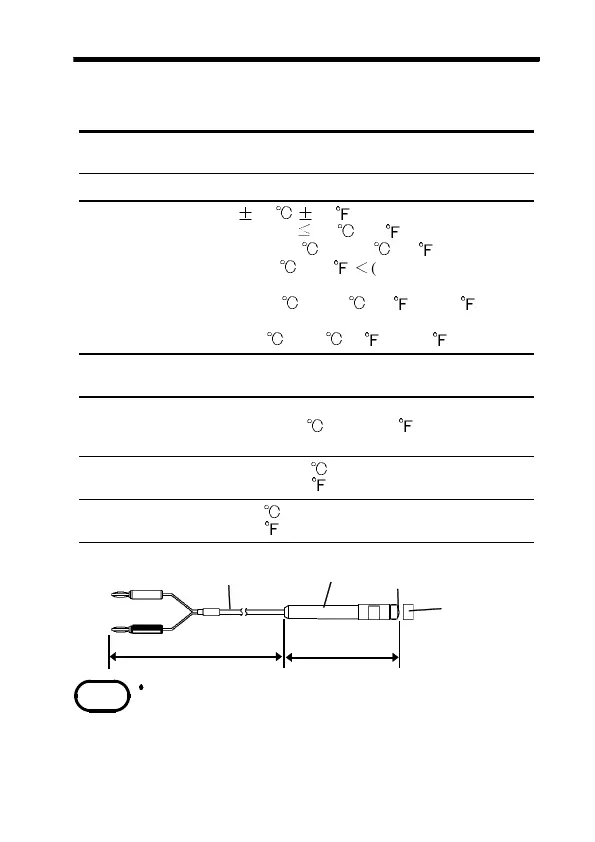

Thermocouple
Material
K
Contact Type Grounded
Measurement
Accuracy
2.5 ( 4.5 )
(T-Ts)
100 (180 )
-0.035xT
to +2.5 (4.5 )
100
(180 )
＜
(T-Ts)
T :Measurement temperature
(-50
to 400 /-58 to 752 )
Ts:Surroundings temperature
(0
to 50 /32 to 122 )
Dimensions
(Measuring point)
Approx. φ 13 mm, φ 0.51"
Compensation Lead Conventional type
(-20 to 90 , -4 to 194 ),
Approx. 1 m, 39.4"
Operating
Temperature
-50 to 400
-58 to 752
Allowable Heat
(Handle)
150
302
1000 (39.4")
110 (4.33")
Compensation lead
Handle
Measuring point
φ 13 (φ 0.51")
Safety cap
NOTE
5.2 9181 SURFACE TEMPERATURE
PROBE
The surface type temperature probe is
designed to maximize the heat capacity of the
measuring point. However, errors may occur
due to effects such as heat dissipation on
contact.
