Hioki 3441 - Sheath Type Probe 9182 (High Temp)

24
___________________________________________
Chapter 5 Sensor (Options)
___________________________________________
Thermocouple
Material
K
Contact Type Isolated Junction (ungrounded)
Accuracy 2.5 ( 4.5 )or 0.75% rdg.,
whichever is greater.
Dimensions (sheath) Approx. φ 3.2 x 500 mm,
φ 0.13" x 19.7"
Compensation Lead Heat resisting type
(0 to 150
, 32 to 302 ),
Approx. 2 m, 78.8"
Operating
Temperature
-50 to 750
-58 to 1382
Allowable Heat
(Flange)
90
194
Protective Shield
Material
INCONEL
Dielectric Strength 500 VAC for 1 minute
Insulation Resistance 100 M Ω or more (100 VDC)
2000 (78.8")
55
(2.17")
Compensation lead
Flange
Sheath
30
(1.2")
φ 3.2x500
(f 0.13"x19.7")
Measuring
point

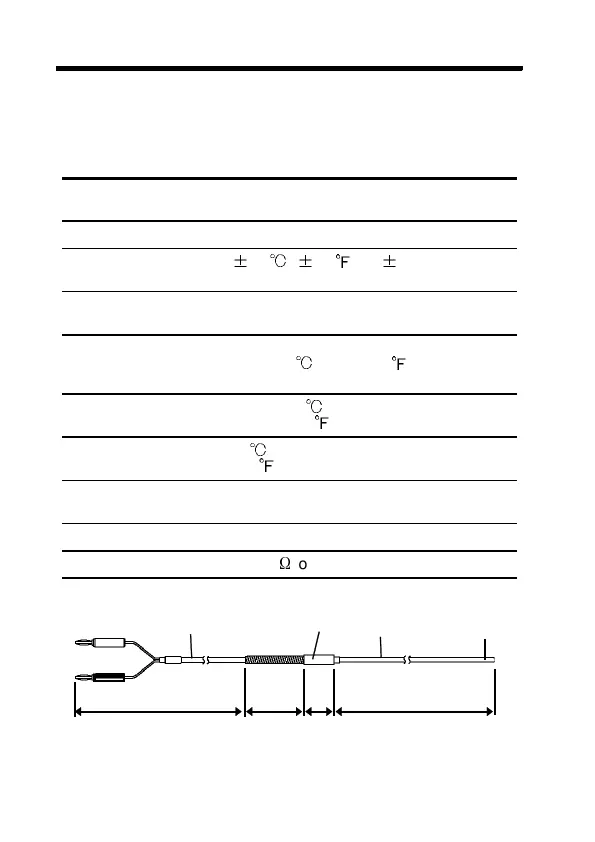

5.3 9182 SHEATH TYPE
TEMPERATURE PROBE (for high
temperature)
