Thermocouple
Material
K
Contact Type Isolated Junction (ungrounded)
Accuracy 1.5 ( 2.7 )or 0.4% rdg.,
whichever is greater.
Dimensions (sheath)
(9472)
(9473)
Approx. φ 2.3 x 150 mm
φ 0.09" x 5.9"
Approx. φ 4.8 x 300 mm
φ 0.19" x 11.8"
Compensation Lead Conventional type
(-20 to 90
, -4 to 194 ),
Approx. 1 m, 39.4"
Operating
Temperature
(9472)
(9473)
-100 to 300 , -148 to 572
0 to 800 , 32 to 1472
Allowable Heat
(Handle)
80
176
Protective Shield
Material
SUS 316
Dielectric Strength 500 VAC for 1 minute
Insulation Resistance 100 M Ω or more (500 VDC)
1000 (39.4")
100 (3.94")
Compensation lead
Handle
Sheath
φ 2.3x150
( φ 0.09"x5.9")
φ 4.8x300
( φ 0.19"x11.8")
Measuring
point

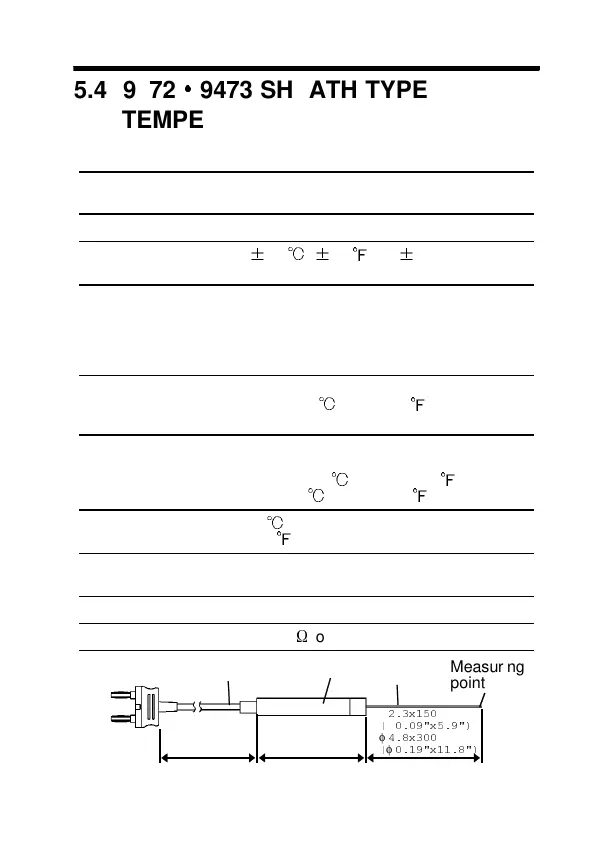

5.4 9472 9473 SHEATH TYPE
TEMPERATURE PROBE (for
general, drip-proof)
