8.3 Selecting the Connections and Protocol
106
To be checked before setting
The settings are different when the device and external device are connected to
the existing network and when the device and a PC are connected to a new net-
work.
Connecting the device to the existing network
The network administrator (department) needs to assign the following items in
advance. Be sure to
assign them so that they do not overlap with other devices.
Creating a new network using the device and a PC
(Using a local network that is not connected externally)
The addresses shown below are recommended if there is no administrator or
you are responsible
for setting.
Setting LAN communications
• Address settings of the device
IP address:................................................................................................ ___.___.___.___
Subnet mask: ..................................................___.___.___.___
• Gateway
Whether or not to use a gateway: ...................Use / Not use
IP address (if used):........................................___.___.___.___
........................................................................(Set to 0.0.0.0 if not used)
Communication command port No. to be used:____(Default setting: 23)
IP address Set sequential IP addresses as shown below.
PC:...........................................................192.168.1.100
First device:.............................................. 192.168.1.1
Second device: .......................................192.168.1.2
Third device: ............................................192.168.1.3
................................................................. ↓
Subnet mask: ...........................................255.255.0.0
Gateway:..................................................OFF
Communication command port number: .23
1
Start a web browser.
You can change the instrument's LAN interface settings using a web browser, such
as Microsoft Edge
®
.
The description below uses Microsoft Edge
®
as an example.
(1) Click the start button on the bottom-left corner of the computer screen, and then
click [Microsoft Edge] in the menu.

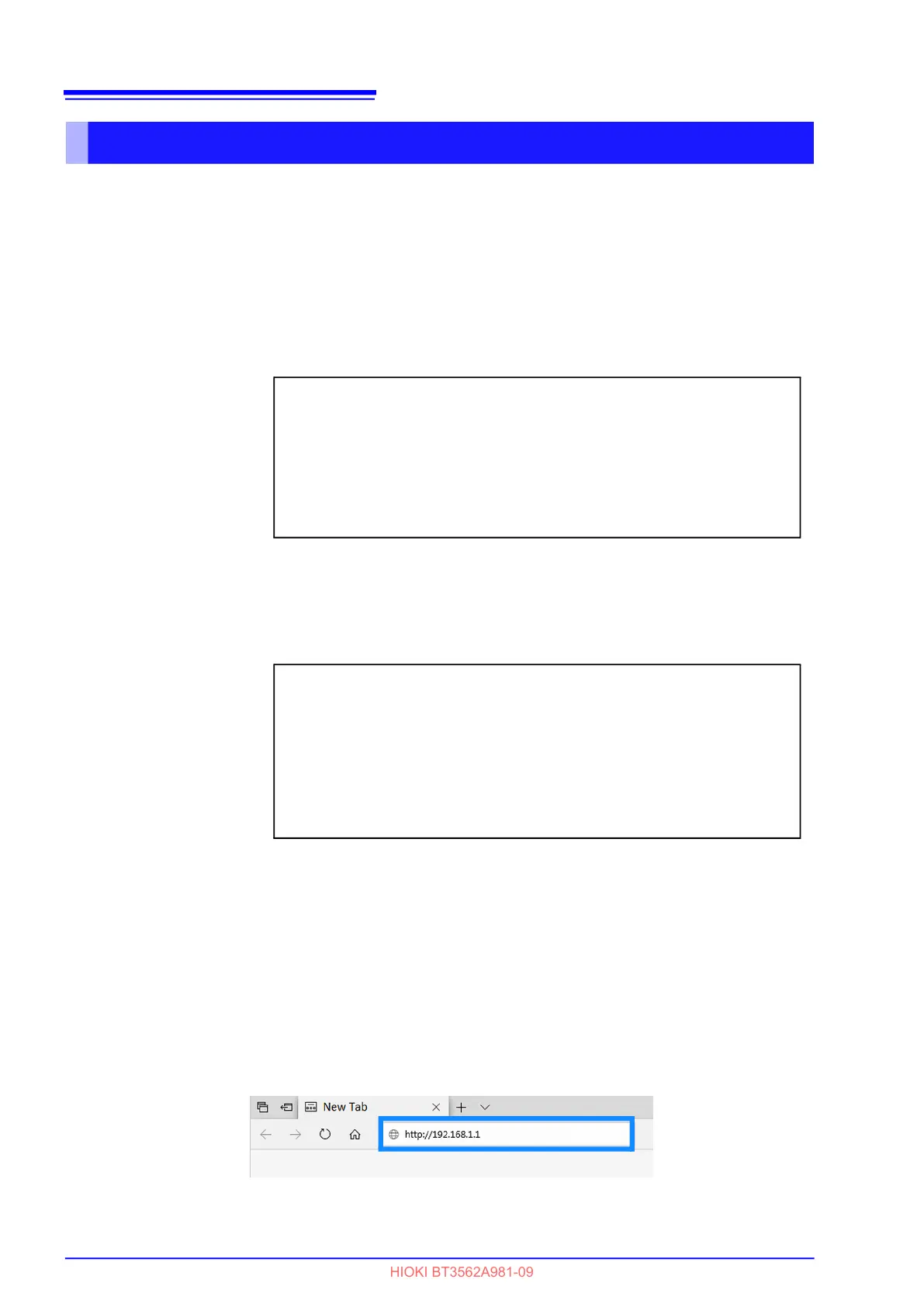

(2) Enter the character string
[http://] followed by the IP address or the computer
name in the address bar
When the IP address of the instrument is “192.168.1.1”
