4.5 Statistical Calculation Functions
67
4
Chapter 4 Applied Measurement

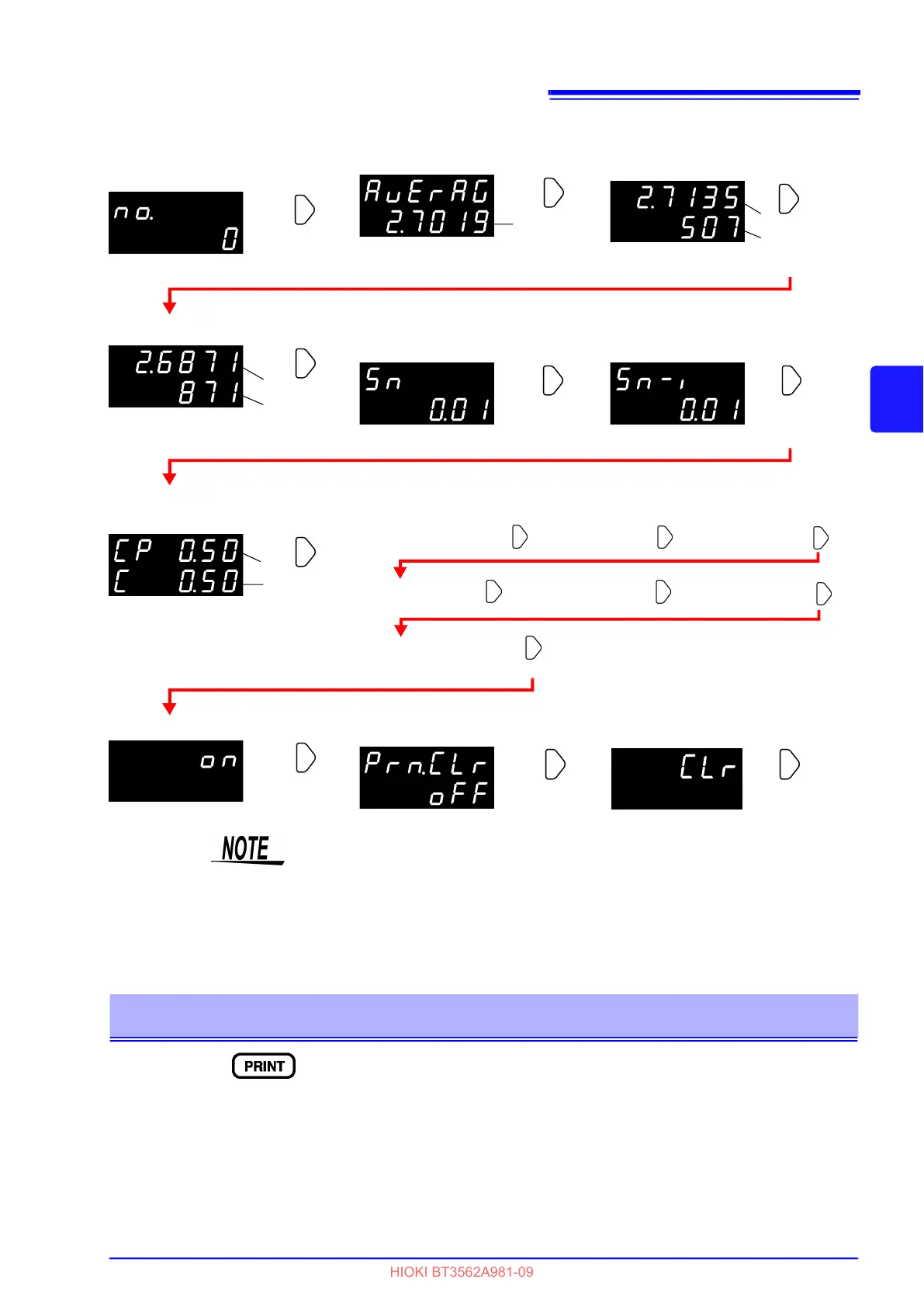

Example: when the V mode is selected
(not displayed in V mode)
Total data count of resistance measure-
ment
Mean of resistance measurement Maximum of resistance measurement
Minimum of resistance measurement Standard deviation of population
of resistance measurement
Standard deviation of sample of resis-
tance measurement
Process capability indices of resistance
measurement
ON/OFF setting Auto Clearing After Printing setup Clear setup
Valid data
Mean
Maximum
Data Sample
No.
Minimum
Data Sample
Cp
CpK
Total data count of volt-
age measurement
Mean of voltage
measurement
Maximum of voltage
measurement
Minimum of voltage
measurement
Standard deviation of
population of voltage
Standard deviation of
sample of voltage
measurement
Process capability indices
of voltage measurement
(not displayed in mode)
• When a valid data count (measurement fault other than ± OF) is zero, no
calculation result is displayed.
• When only one valid data sample exists, standard deviation of sample and
process capability indices cannot be displayed.
• When comparator, range or auto-ranging settings are changed while statisti-
cal data is displayed, the display of Cp and CpK values changes to “- - . - -”.
Sending Statistical Calculation Results to the Printer
With the statistical calculation results displayed, press the PRINT key.
The statistical calculation results are output to the optional printer.
See "Chapter 6 Printing" (p.91).
