Hold Function (HOLD)
Auto-hold conditions
When both the following conditions are satised, the instrument freezes the readout.
• The measured value does not uctuate beyond the variation range for a certain period.
• The measured value exceeds the threshold value.
The instrument continues to freeze the readout until the auto-hold conditions are satised again.
Start
Stop
Start
Stop
Start
Stop
Threshold value
Example: 10.0 A

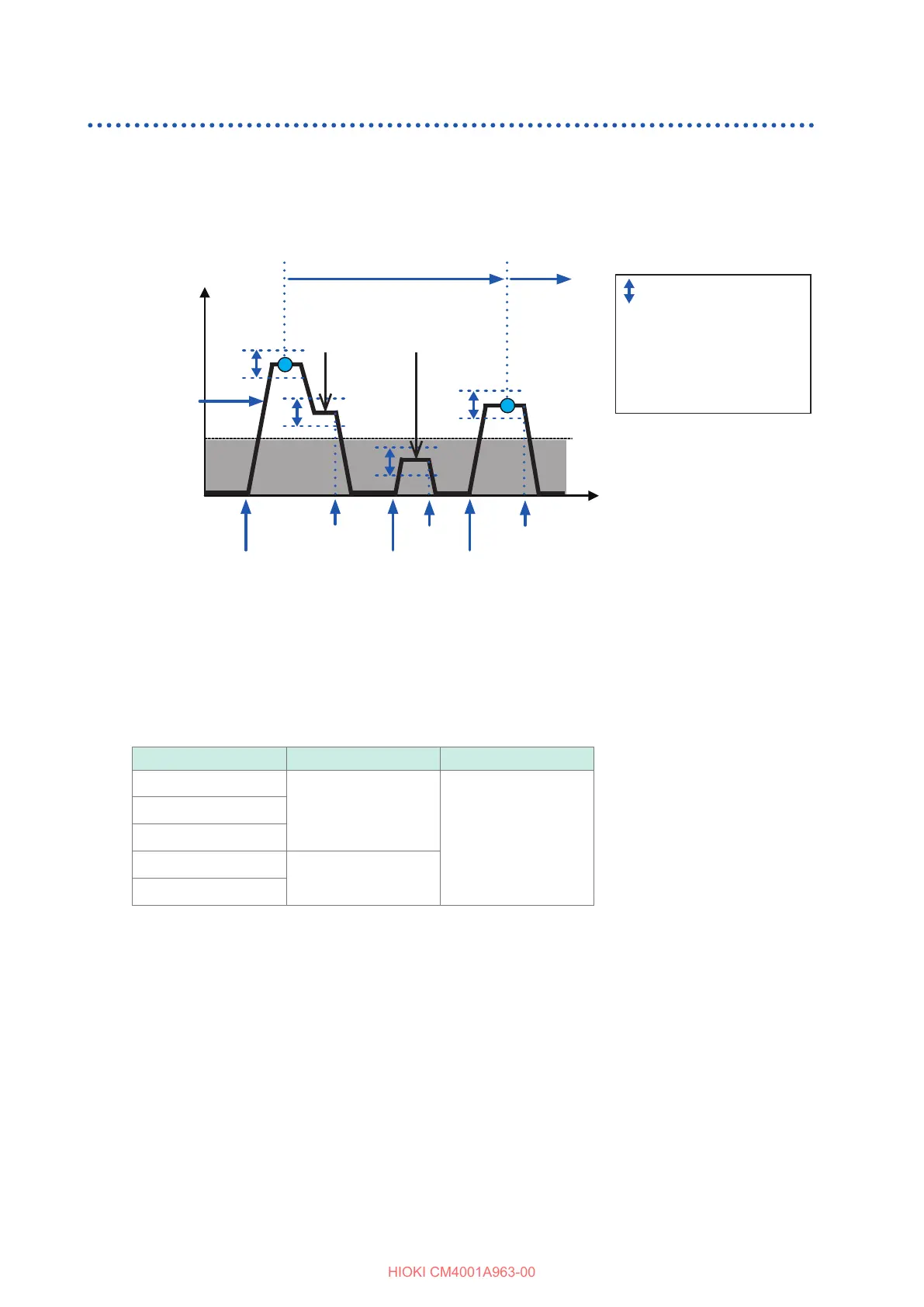

Auto hold example
50.0 A
Auto hold example
100.0 A
Measured
value
Time
(1) (2)
: Variation
〇: Held value
Start: Measurement start
(Clamped around target)
Stop: Measurement stop
(Removed from target)
(1) The instrument does not freeze the readout automatically. (The measured value does not
become less than the threshold value.)
(2) The instrument does not freeze the readout automatically. (The measured value does not
exceed the threshold value.)
The variation range and threshold value may vary depending on the range.
Range Variation width Threshold value
60.00 mA
400 counts or less
150 counts
600.0 mA
6.000 A
60.00 A
500 counts or less
600.0 A
