4
Chapter 4 LCR Function
The number of waves that can be monitored differs depending on the frequency set on the instrument.
× :The monitoring the detection level function is not activated.
 :The monitoring the detection level function is activated for all acquired waves.
1/2 :The monitoring function is activated for the first half of acquired waves.
1/4 :The monitoring function is activated for the first quarter of acquired waves.
Monitoring the Detection Level Function Operation by Set Frequency

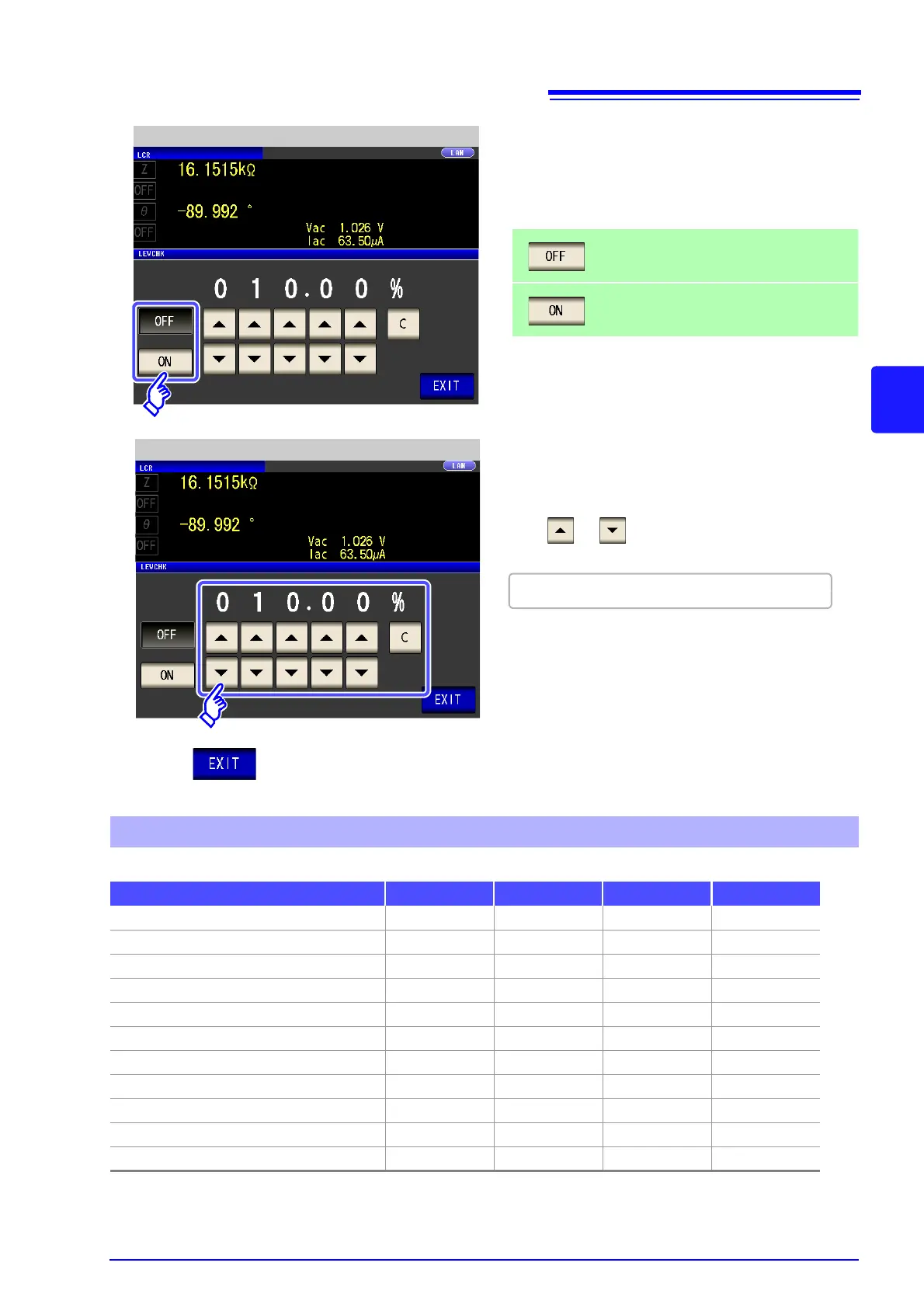

3
Detection Level Monitoring Function Setting
Select ON/OFF for the function to monitor the
detection level.
Sets the detection level monitoring function to
OFF.
Sets the detection level monitoring function to
ON.
Use or to enter the limit value.
5
4
Press to close the setting screen.
Settable range: 0.01 to 100.00%
Detection Level Monitoring Function Setting
Frequency FAST MED SLOW SLOW2
DC
×
  
4.00 Hz to 19.99 Hz
×
  
20.00 Hz to 100.00 Hz
×
  
100.01 Hz to 999.99 Hz
×
  
1.0000 kHz to 3.0000 kHz
×
  
3.0001 kHz to 10.000 kHz
×
  
10.001 kHz to 30.000 kHz
   
30.001 kHz to 100.00 kHz
   
100.01 kHz to 300.00 kHz
1/2 1/2 1/2 1/2
300.01 kHz to 1.0000 MHz
1/4 1/4 1/4 1/4
1.0001 MHz to 5.0000 MHz
   
