5.3 Normal Sweep

164

The testing speed can be set. The slower the testing speed is, the more accurate are the results.

5.3.4 Setting the Measurement speed

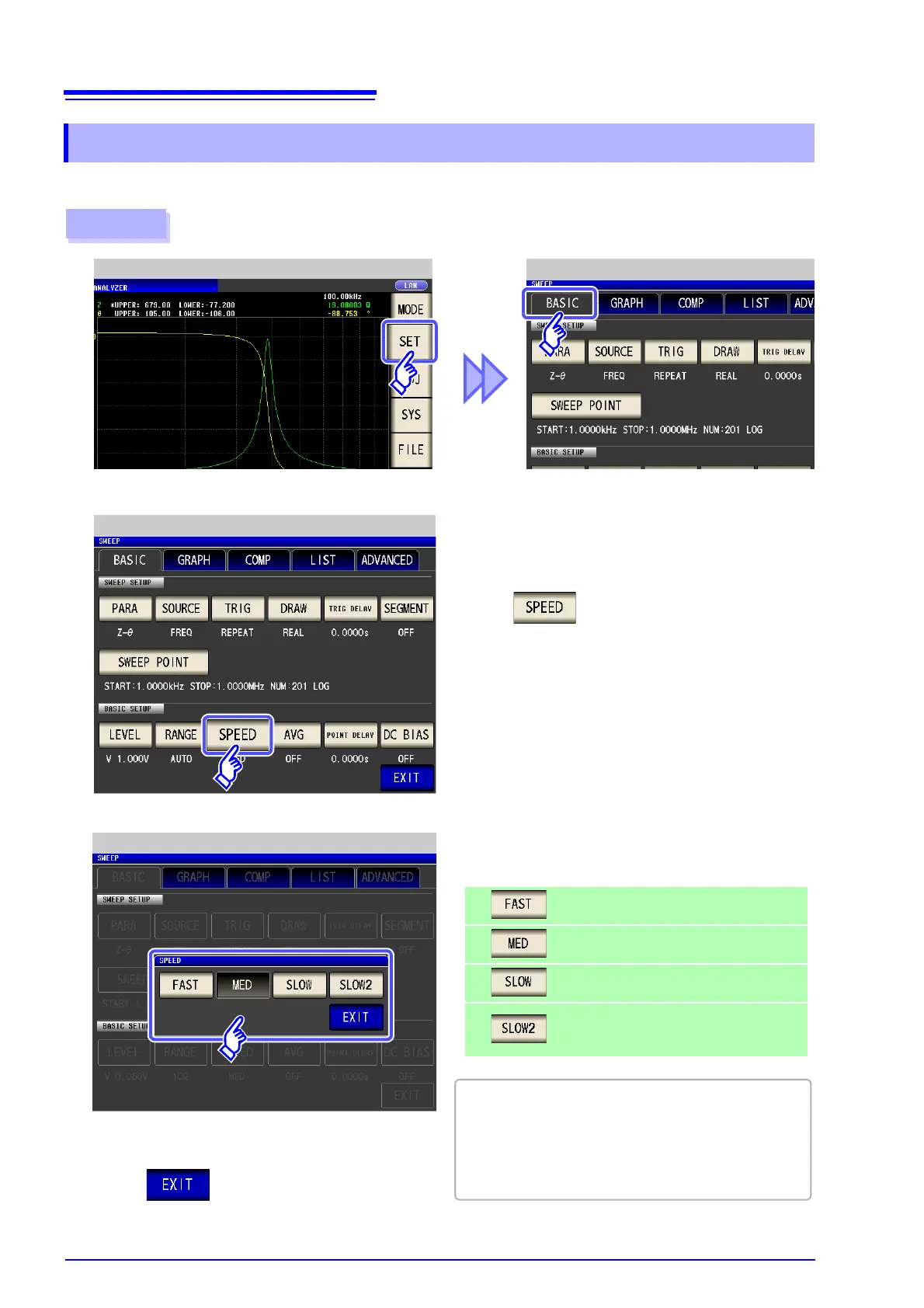

Procedure

Press .

Analyzer Initial Screen Analyzer Basic Settings

Analyzer Basic Settings

To select the measurement speed

The testing speed varies according to the number of

parameters being displayed, and according to their

type. The speeds given in the table relate to the case of

|Z| only being displayed.

See "About Measurement Times and Measurement

Speed" (p. 399)

Press to close the setting screen.

Performs high-speed measurement.

This is the normal measurement speed.

Measurement precision improves.

Measurement accuracy is better than

SLOW.

Measurement Speed Setting

Default Chapter3
- Table of Contents3
