5.10 Equivalent Circuit Analysis Function
252
When performing frequency circuit analysis, it is necessary to set the sweep parameter to "Frequency" and
acquire the frequency characteristics for the elements being analyzed.
See "5.2.2 Setting the Sweep Parameter" (p. 135)
Since the local maximum and local minimum measurement points are used when performing equivalent cir-
cuit analysis with the IM3570, the frequency range should be set to the range for which the local extreme val-
ues can be measured. When performing analysis using the B and C models, configure the settings so that the
lowest possible frequencies are measured since low-frequency values are used.
Additionally, when performing analysis using the E model, set the range so that it includes the resonance
points for series resonance and parallel resonance.
5.10.3 Performing Equivalent Circuit Analysis
1
Performing frequency sweep measurement

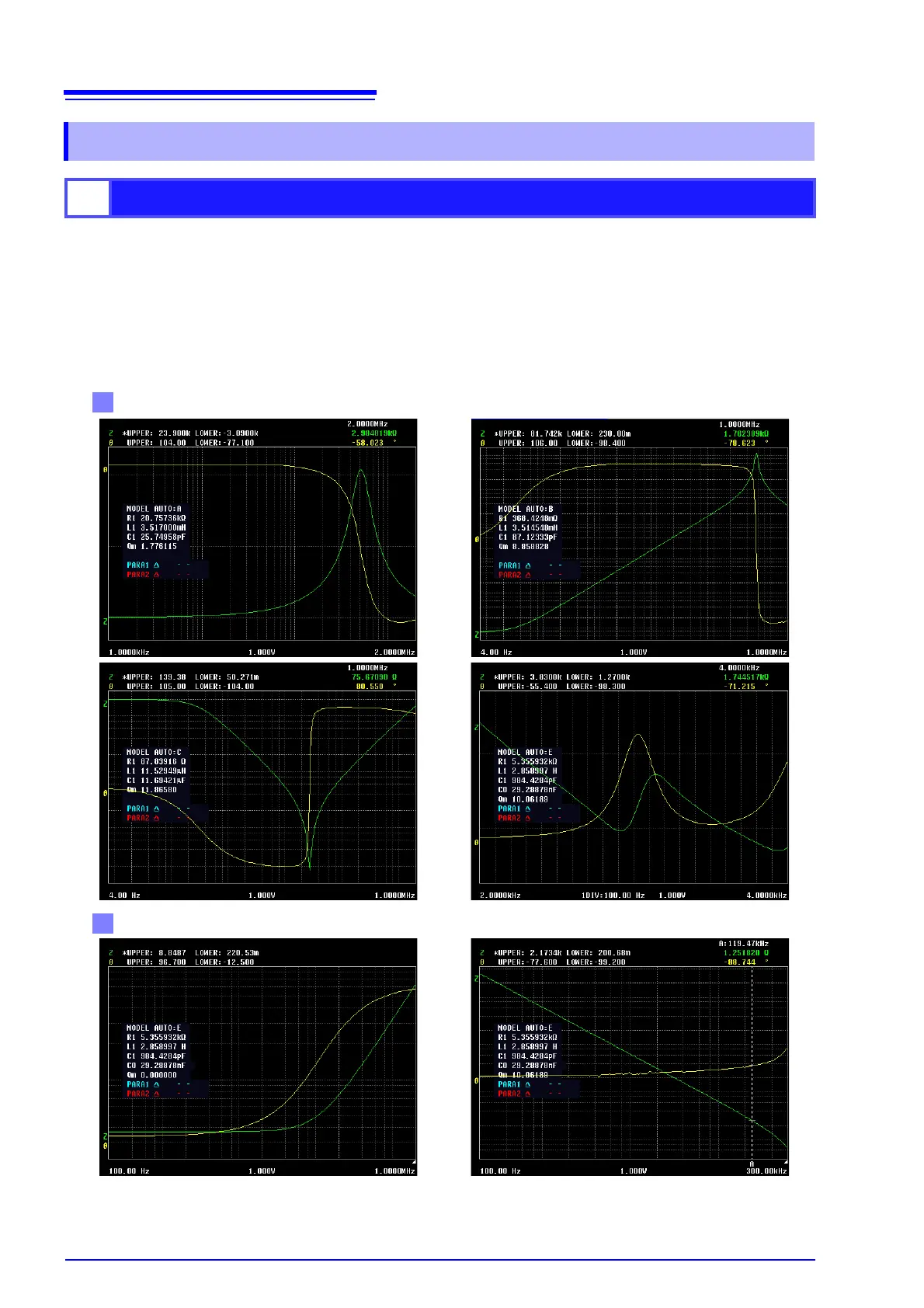

Examples of appropriate sweep range settings
Examples of inappropriate sweep range settings
To Next Page
