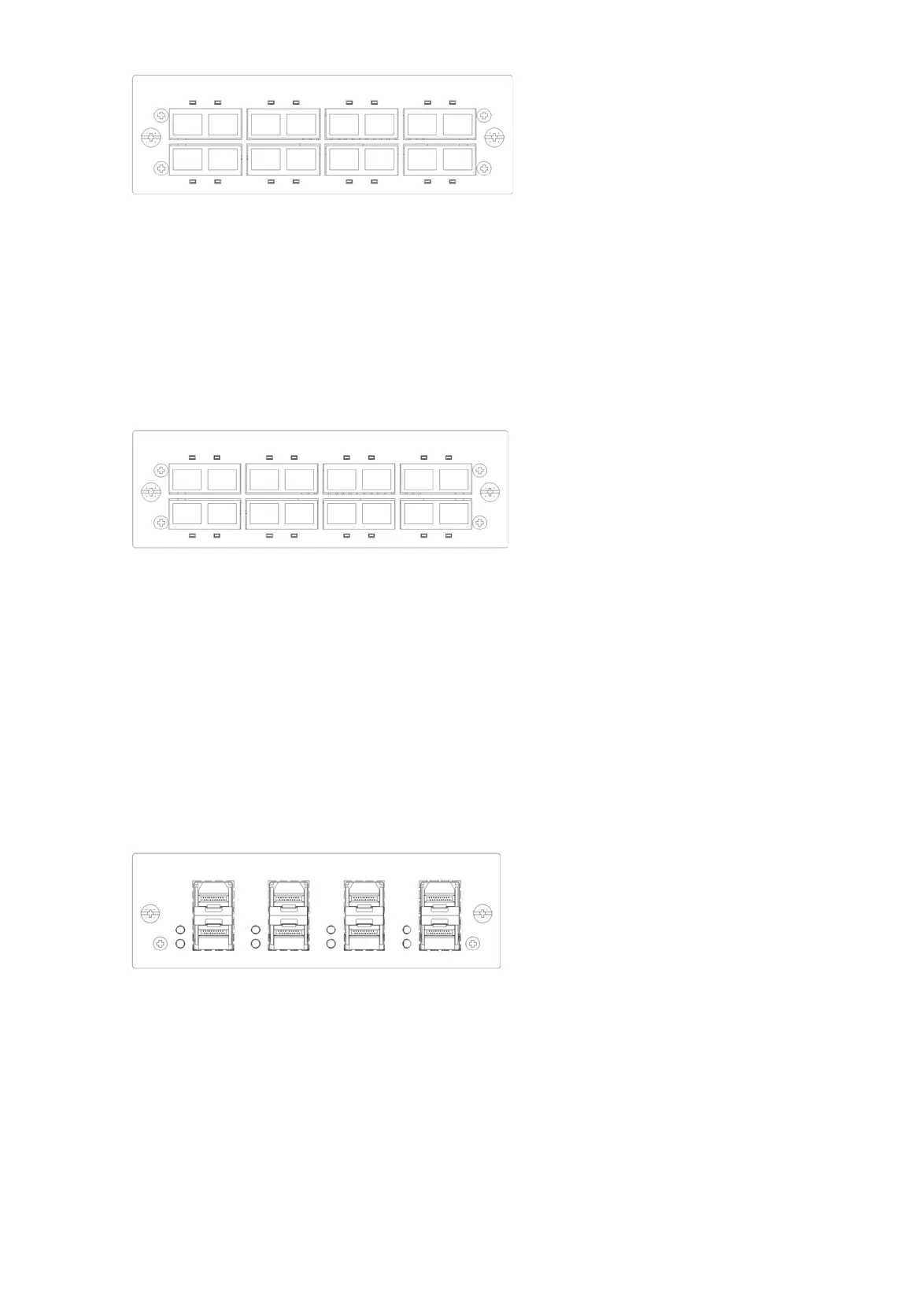

Figure 6: Media module M1-8MM-SC
 Media module M1-8SM-SC
The M1-8SM-SC media module has 8 FX ports for connecting terminal
devices or network segments in compliance with the IEEE 802.3u
100BASE-FX Singlemode standard. The optical ports are configured in
100 Mbit/s Fullduplex (FDX) and support FEFI. They have a DSC design.
Figure 7: Media module M1-8SM-SC
 Media module M1-8SFP
The M1-8MM-SC media module has 8 FX ports for connecting end
devices or network segments in compliance with the IEEE 802.3u
100BASE-FX Multimode/Singlemode/Longhaul standard. The optical
ports are configured in 100 Mbit/s full duplex (FDX) and support FEFI.
These ports are SFP slots and are designed for the M-FAST SFP-...
Hirschmann SFP module types.
See “Accessories” on page 77.
Figure 8: Media module M1-8SFP: Front view
