36
Installation GRS103
Release
01
03/2022
Exclusively media module M1-8TP-RJ45 PoE supports Power over
Ethernet (PoE).
Prerequisites for the support of PoE:
At least 1 media module with PoE functionality (M1-8TP-RJ45 PoE) is
mounted in the basic device.
The 10/100 Mbit/s PoE port allows you to connect network components
as a PoE voltage sink according to the standard IEEE 802.3 10BASE-T/
100BASE-TX and IEEE 802.3af.
The PoE power is supplied via the wire pairs transmitting the signal
(phantom voltage).
For more details see chapter “General technical data” on page 62.
5.5.4 10/100/1000 Mbit/s twisted pair port
The 10/100/1000 Mbit/s twisted pair port allows you to connect network
components according to the standard IEEE 802.3 10BASE-T/100BASE-TX/
1000BASE-T.
This port supports:
Autonegotiation
Autopolarity
Autocrossing (if autonegotiation is activated)
1000 Mbit/s full duplex
100 Mbit/s half duplex, 100 Mbit/s full duplex,
10 Mbit/s half duplex, 10 Mbit/s full duplex
Delivery state: Autonegotiation
The socket casings are electrically connected to the front panel.
The pin assignment corresponds to MDI-X.

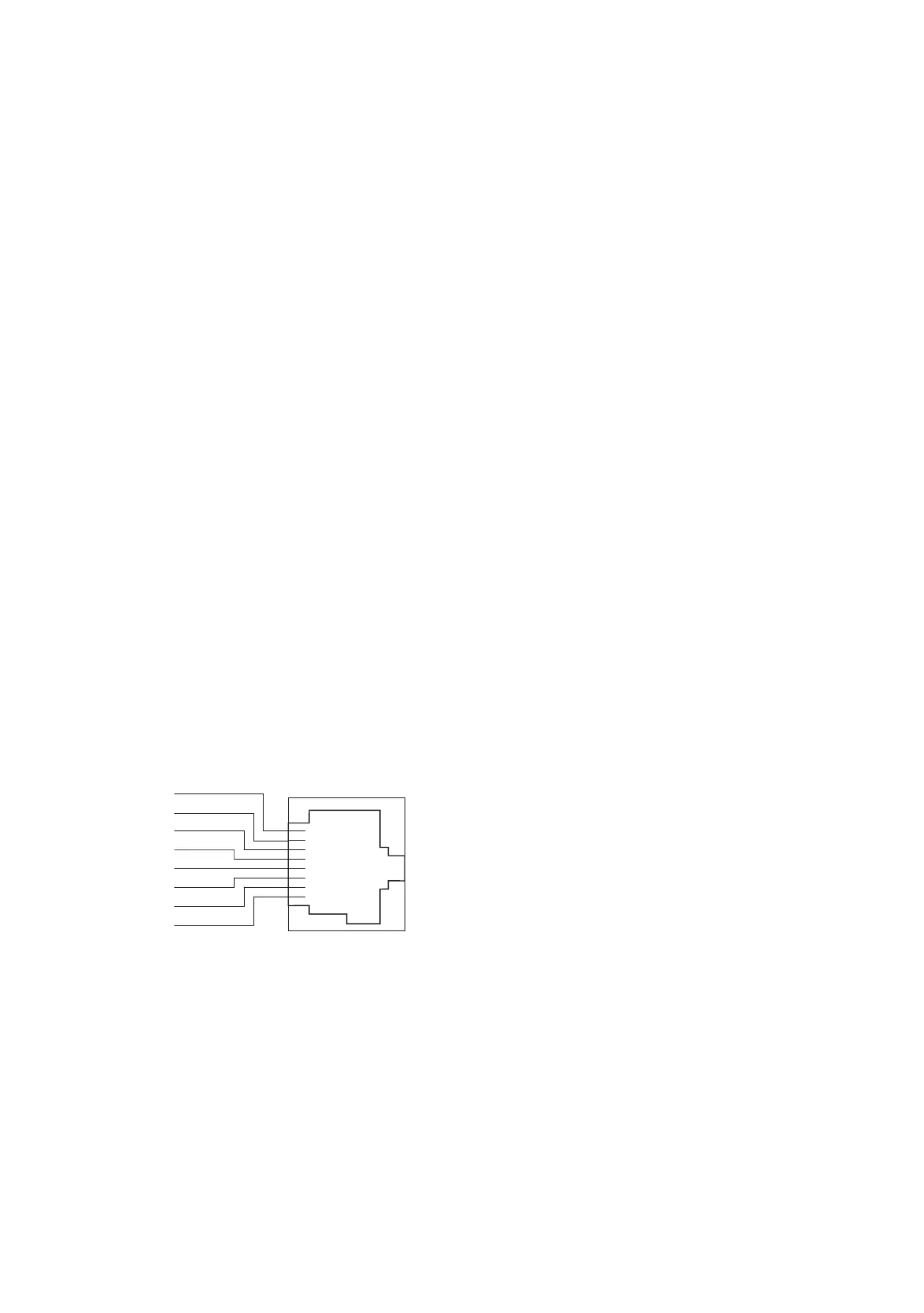

Figure 15: Pin assignment of the 1000 Mbit/s twisted pair port
5.5.5 100 Mbit/s F/O port
Note: Exclusively on media modules.
This port is a DSC socket, or an SFP slot.
The 100 Mbit/s F/O port allows you to connect network components
according to the IEEE 802.3 100BASE-FX standard.
8
7
6
5
4
3
2
1
BI_DC-
BI_DC+
BI_DA-
BI_DD-
BI_DD+
BI_DA+
BI_DB-
BI_DB+
