Installation GRS103

Release

03/2022

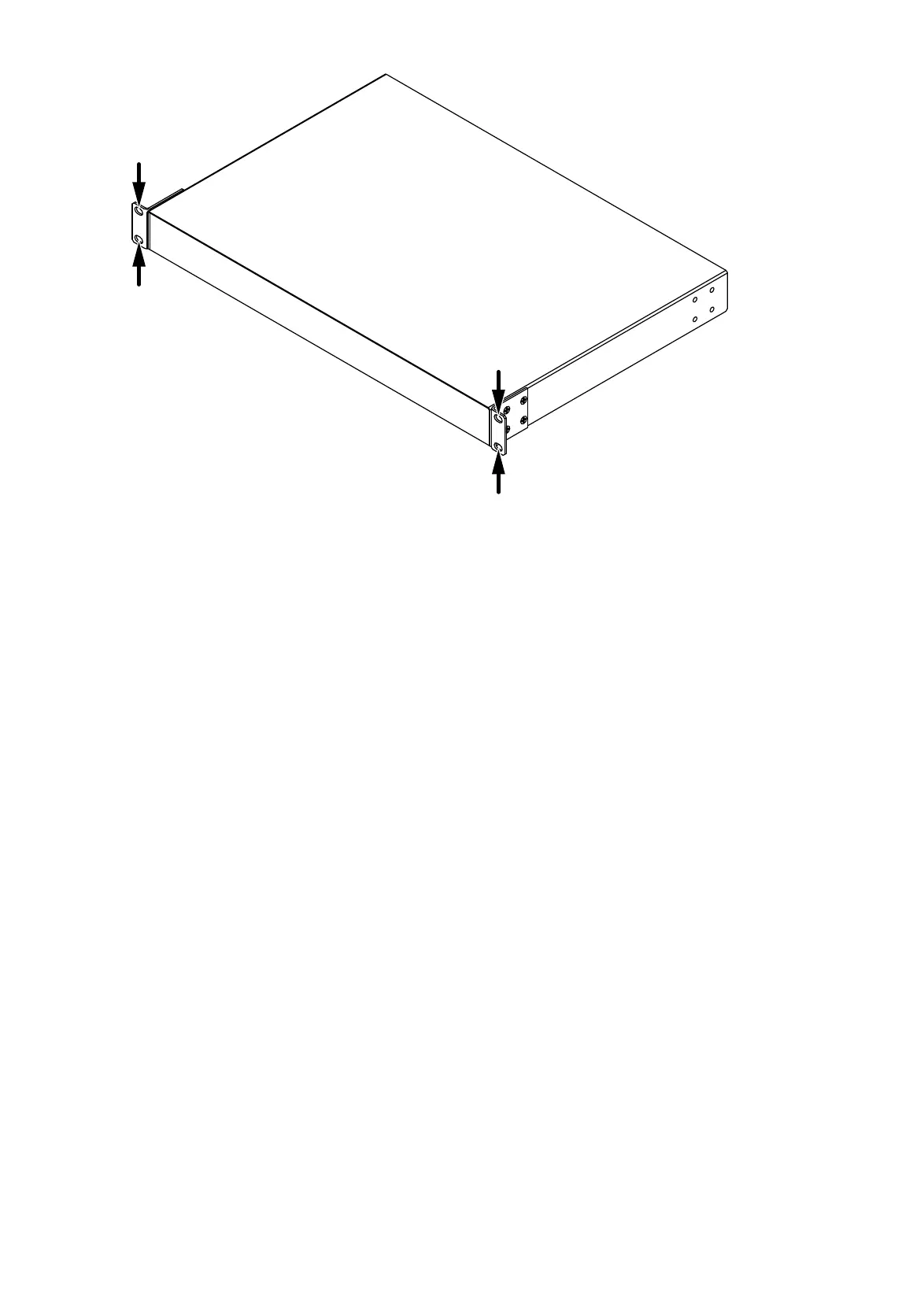

Figure 29: Removing the device: Mounting brackets with oblong holes

 To detach the device from a switch cabinet or a plain surface, remove the

screws from the mounting brackets on the device.
