Network Load Control
Basic Configuration
Release
6.0
07/2010
8.2
Multicast Application
133
8.2.5
Description of GMRP
The GARP Multicast Registration Protoc
ol (GMRP) describes the distribution
of data packets with a Multicast addre
ss as the destinat
ion address on Layer
2.

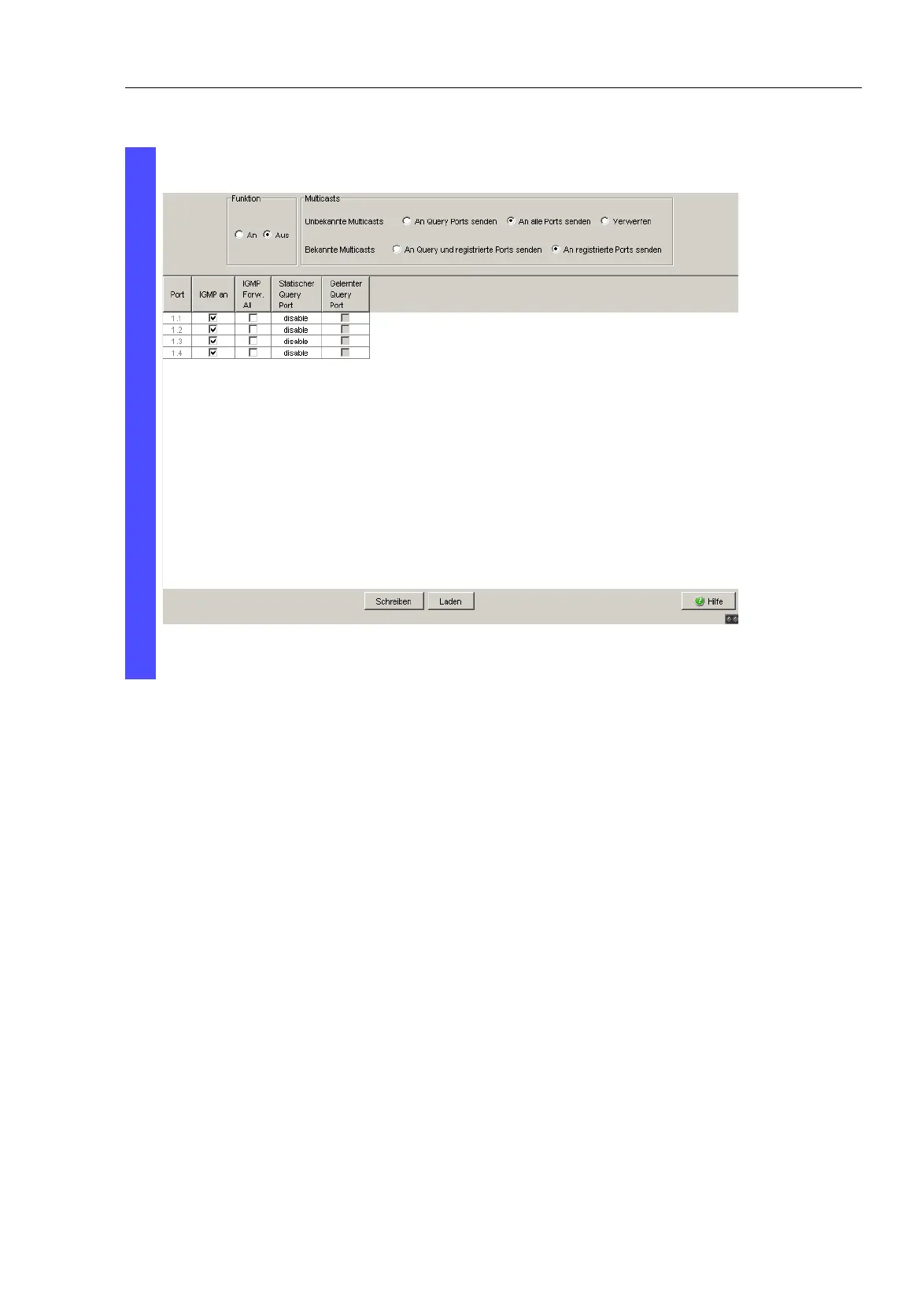

Figure 34:
