MACH 100
Release
07/09
23

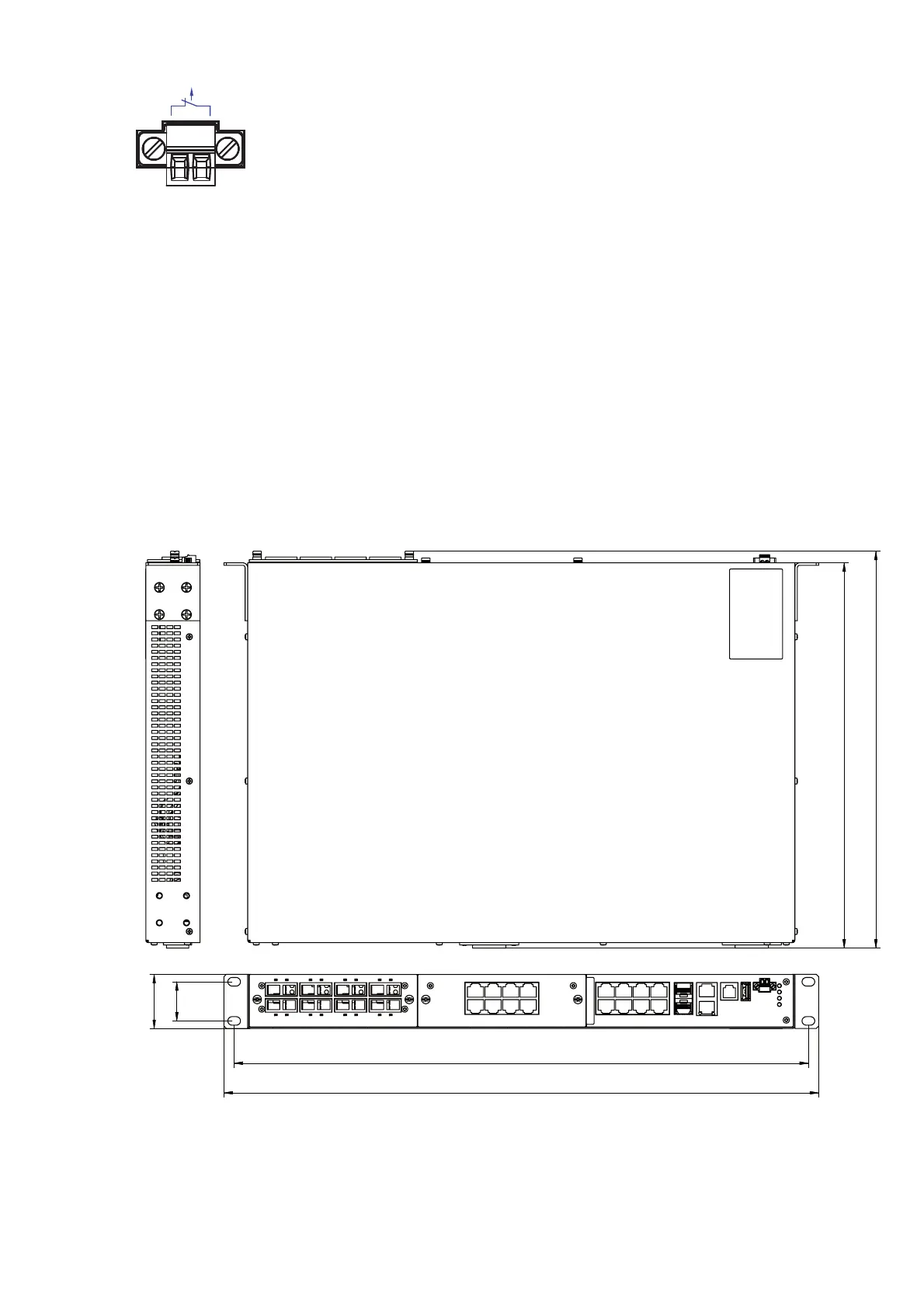

Figure 13: 2-pin terminal block
Note: Please note the electrical ratings for the signal contact (see on
page 35 „General technical data“).
Note: Relevant for North America:
The tightening torque of the terminal block screws is 0,34 Nm (3 lb in).
Mount the terminal block for the signal contact on the front of the
device using the screw locking. Check whether the terminal block is
mounted correctly and screwed on.
2.1.5 Dimension drawings
482,6
231,89
312,5
31,75
43,8
465,9
