Operation Diagnosis
190
9.4
Port Status Indication
Basic Configuration
Release
6.0
07/2010

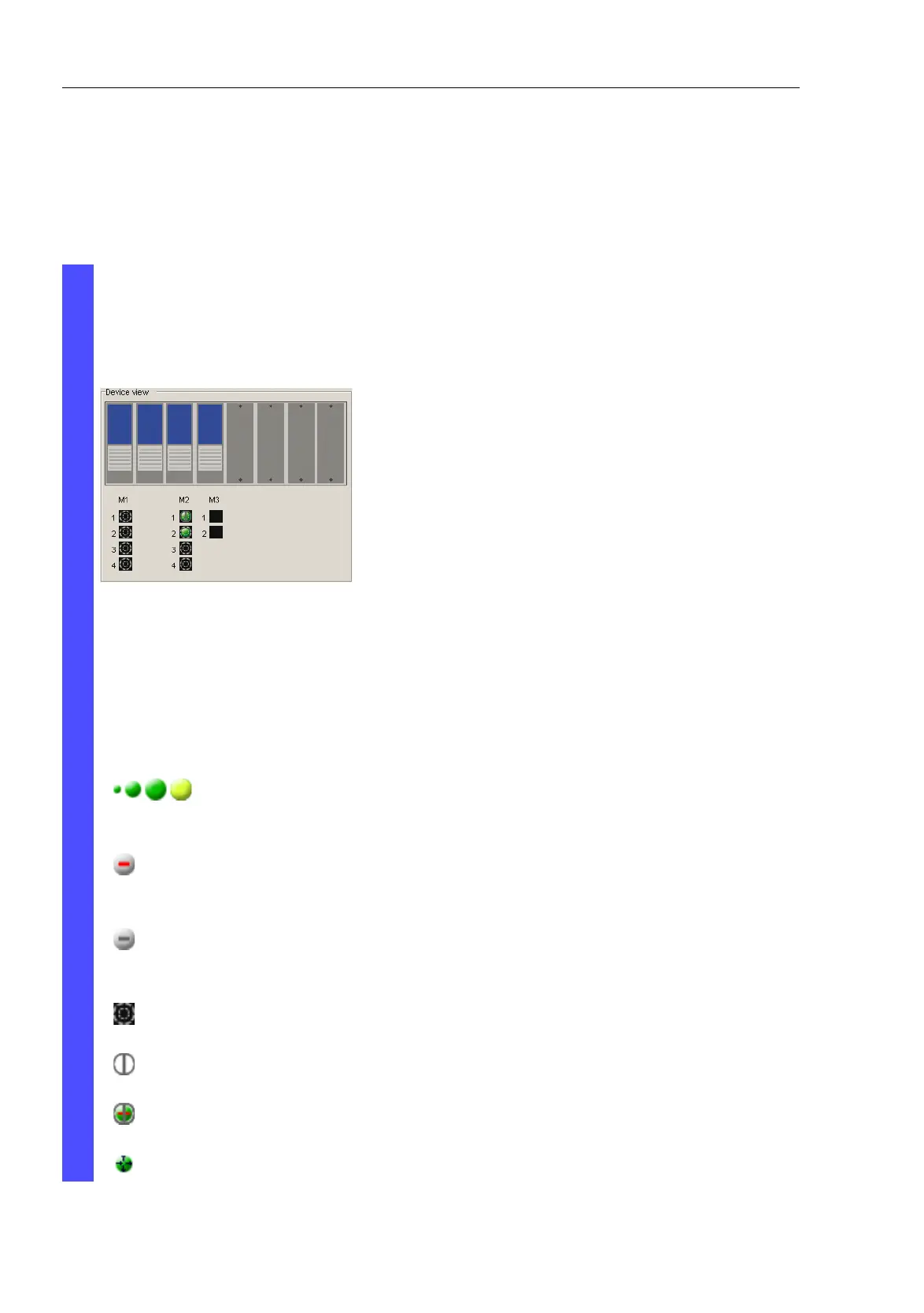

9.4 Port Status Indication
Select the Basics:System dialog.
The device view shows the device with the current configuration. The
symbols underneath the device view represent the status of the
individual ports.
Figure 53: Device View
Meaning of the symbols:
The port (10, 100 Mbit/s, 1, 10 Gbit/s) is enabled
and the connection is OK.
The port is disabled by the management
and it has a connection.
The port is disabled by the management
and it has no connection.
The port is in autonegotiation mode.
The port is in HDX mode.
The port is in RSTP discarding mode (100 Mbit/s).
The port is in routing mode (100 Mbit/s).
