Protection from Unauthorized Access
Basic Configuration
Release
6.0
07/2010
6.2
Password for SNMP access
83

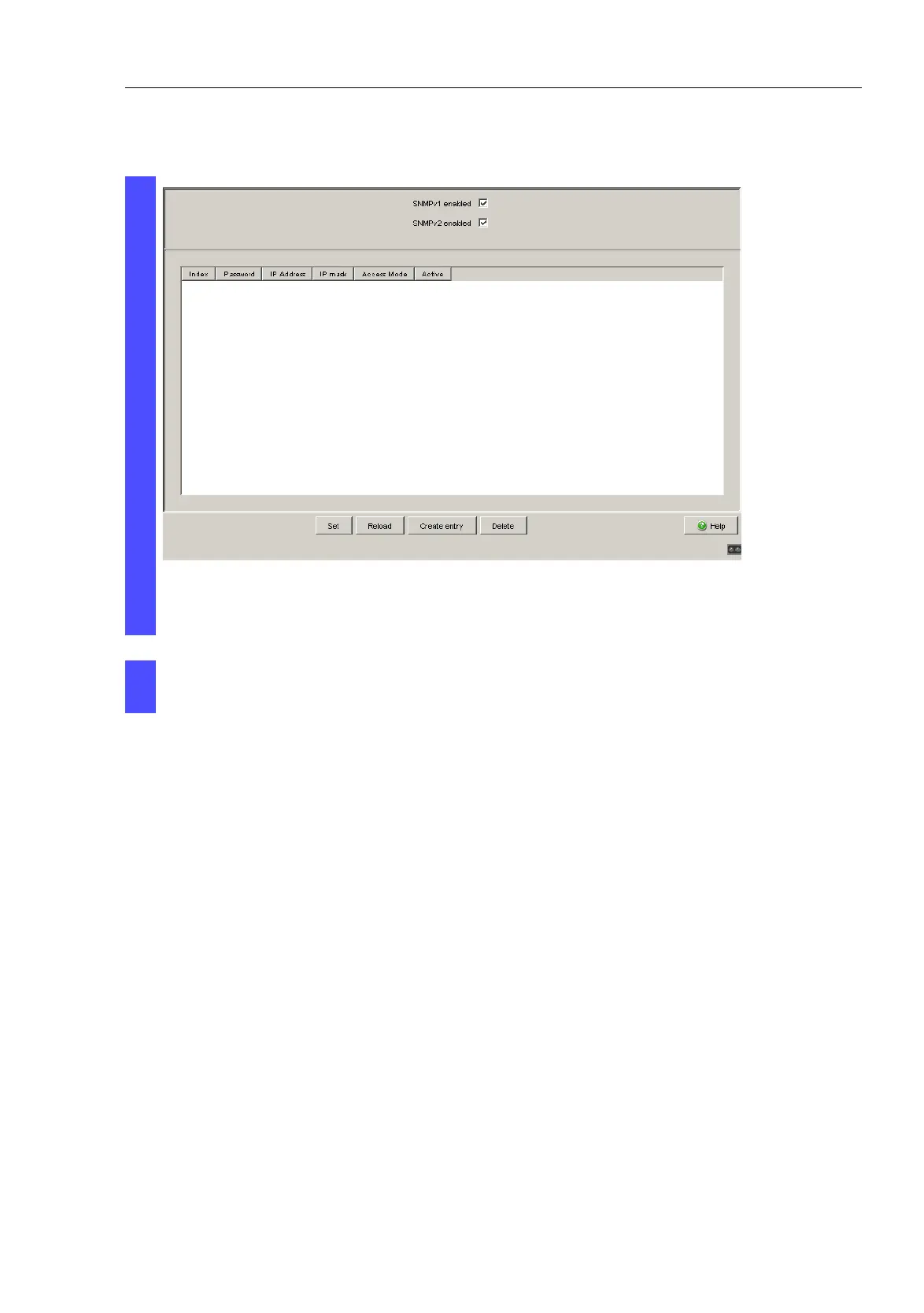

Figure 22:
SNMPv1/v2 access dialog
To create a new line in the table click "Create entry".
To delete an entry, select the li
ne in the table and click "Delete".
