Hirschmann RS20 Programming Manual

Sub-Ring (RSR20, RSR30, MACH1000)
50
4.1 Example configuration
Redundanz L2P
Release 5.0 04/09

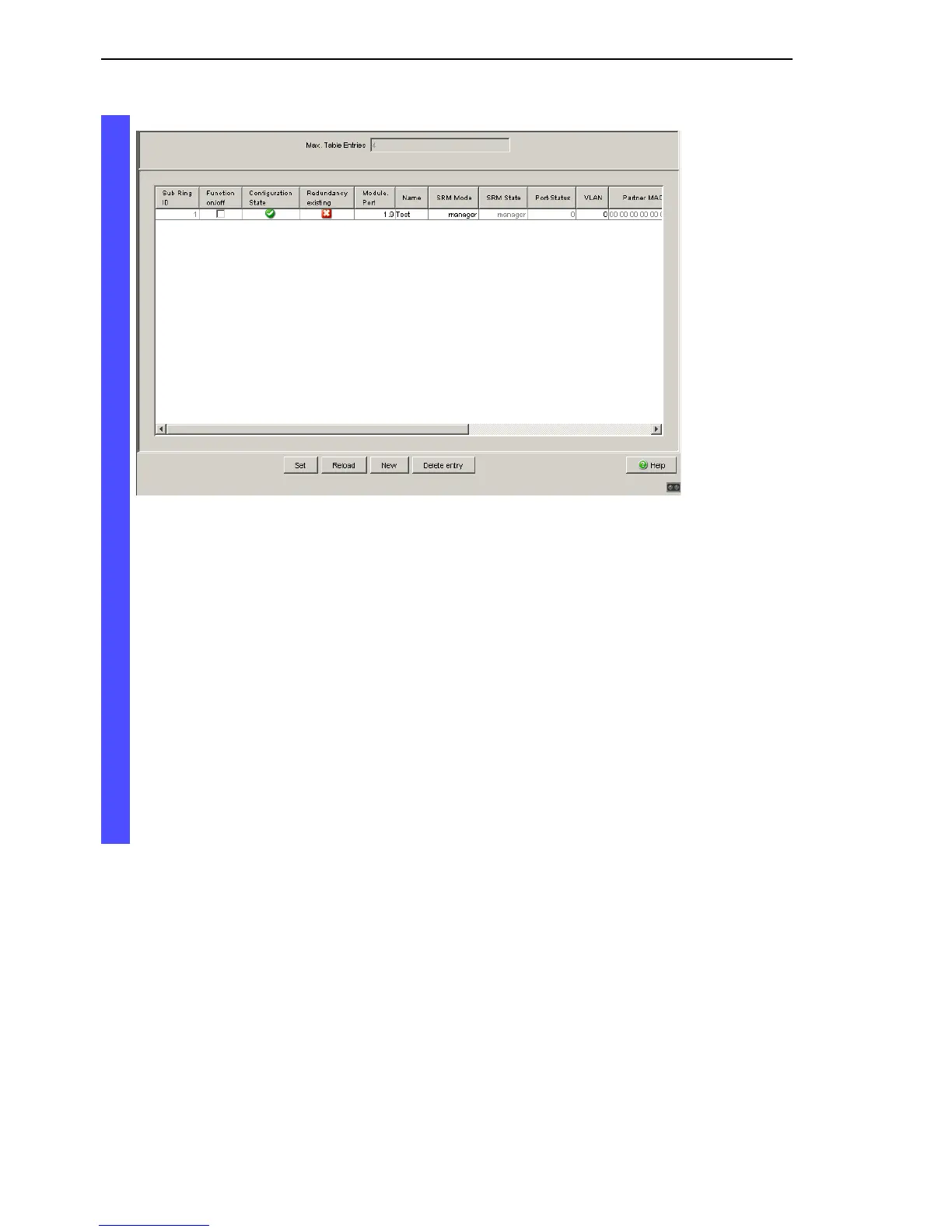

Figure 21: Completely configured Sub-Ring Manager
 Configure the 2nd Sub-Ring Manager in the same way. If you have
explicitly assigned SRM 1 the SRM mode manager, you configure
SRM 2 as redundant manager. Otherwise, the assignment is
performed automatically via the higher MAC address (see above)
 Switch the two Sub-Ring Managers on under “Operation on/off” in
the overview of the Sub-Ring dialog.
 Click on “Set” to temporarily save the entry in the configuration.
 Select the dialog
Basic Settings:Load/Save.
 In the “Save” frame, select “On device” for the location and click on
“Save” to permanently save the configuration in the active configu-
ration.

Hirschmann RS20 Specifications

General

Mounting	DIN Rail
Operating Temperature	-40°C to +70°C
Protection Class	IP30
Switching Technology	Store-and-Forward
Product Type	Industrial Ethernet Switch
Port Details	10/100 Mbps Ethernet ports
Switching Capacity	3.2 Gbps
MAC Address Table	8k
Management	Web, SNMP
Redundancy	MRP
Ports	8 or 16
