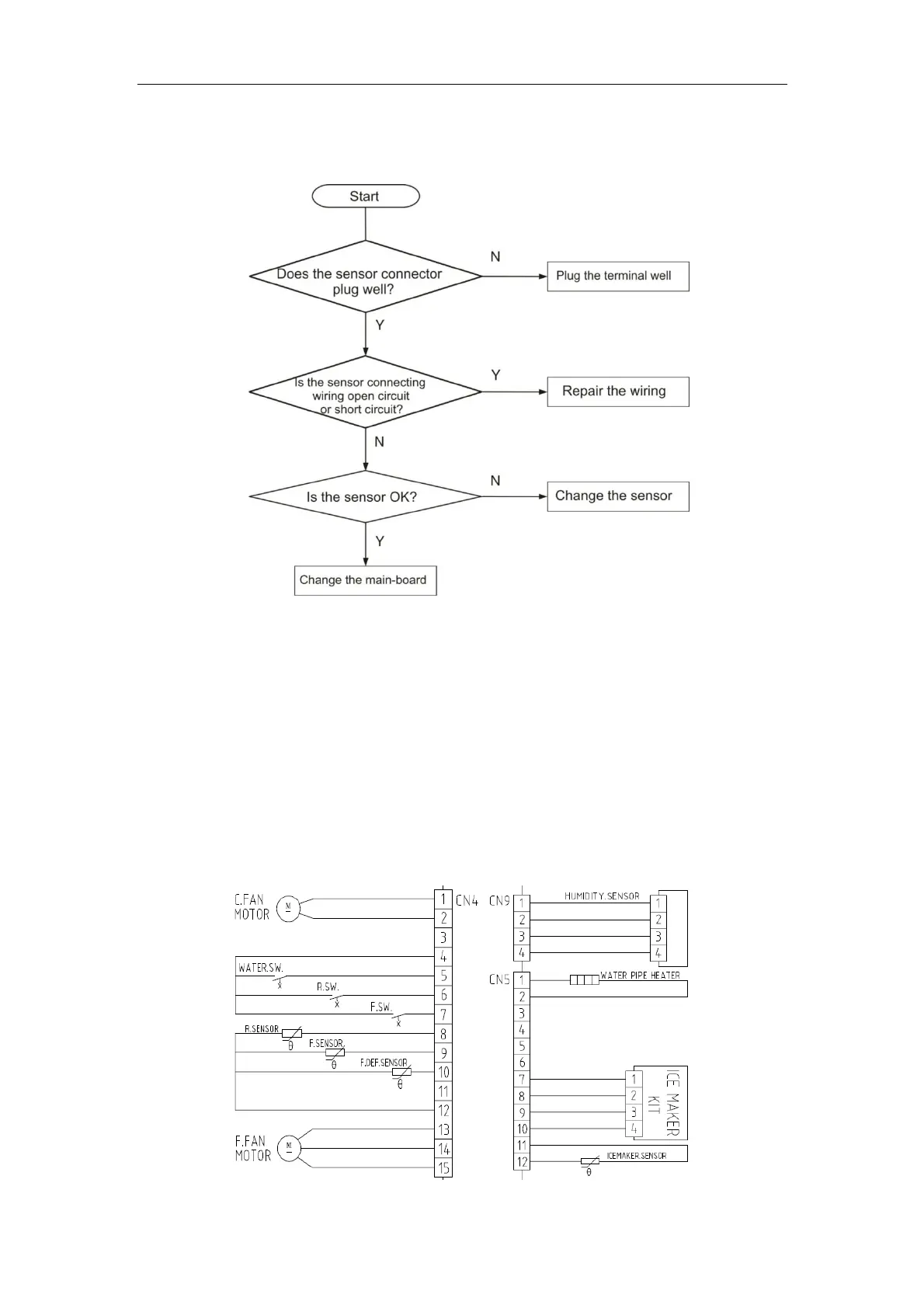

4.4.2.3 Other sensors error
Note:
1. Refrigerator sensor corresponding pin No. 8 and No. 12 on CN4 connector of
main-board.
2. Freezer sensor corresponding pin No.9 and No. 12 on CN4 connector of main-board.
3. Freezer defrost sensor corresponding pin No. 10 and No. 12 on CN4 connector of
main-board.
4. Environment sensor corresponding pin No. 1 and No.3 on CN9 connector of
main-board.
5. Humidity sensor corresponding pin No. 1 and No. 4 on CN9 connector of main-board.
6. Ice maker sensor corresponding pin No.11 and No. 12 on CN5 connector of
main-board.
