28 / 56

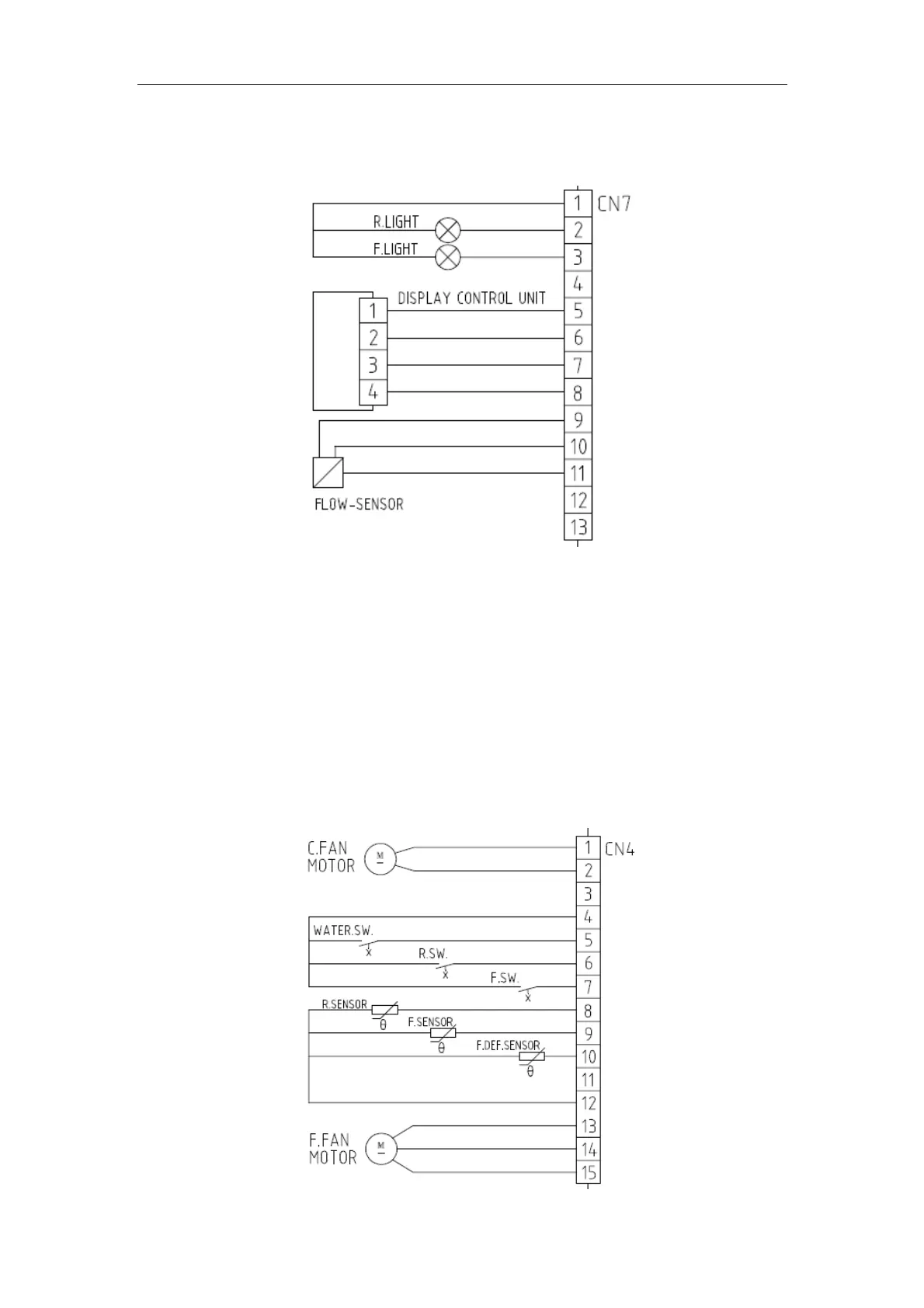

Note:
The display panel corresponding pin No.5~8 on CN7 connector of the main-board as the
drawing below.
4.4.2.6. Fan error
1. Check the connecting wiring of fan motor is well or not, repair if it is broken.
The freezer fan motor corresponding pin No. 13~15 on CN4 connector of main-board, as
the drawing below.
The condenser fan motor corresponding pin No. 1~2 on CN4 connector of main-board, as
the drawing below.
2.Pin No.14 connect 12V power and pin No.13 connect GND, if the freezer fan motor
works normally, change the main-board; If not , change the freezer fan motor.
Pin No.2 connect 12V power and pin No.1 connect GND, if the condenser fan motor works
normally, change the main-board; If not , change the condenser fan motor.
