Hitachi 3100

Network health information
The
HNAS server provides information on the current network health status
through the SMU.
Ethernet Statistics
To access this page, navigate to Network Configuration -> Ethernet
Statistics.

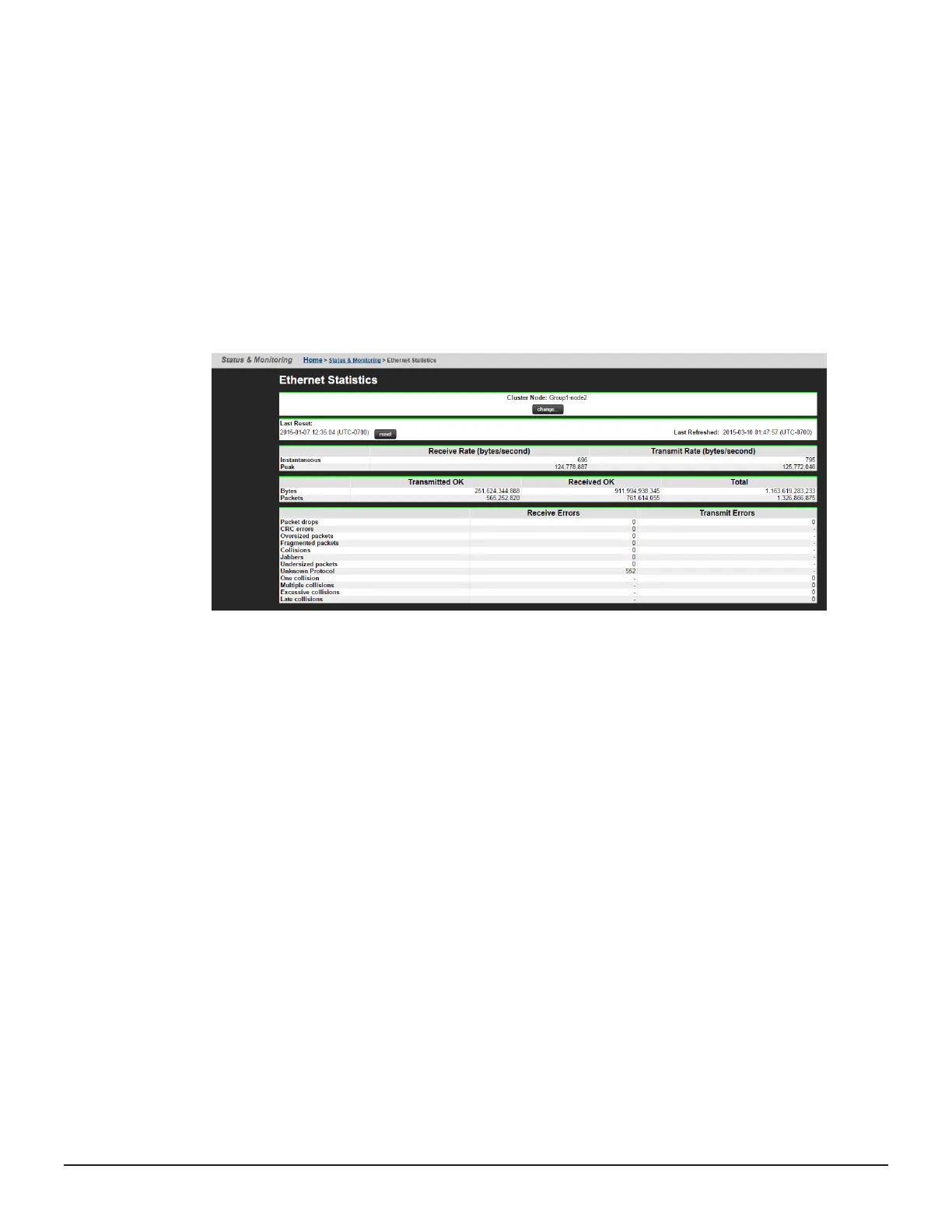

This page displays information on transmit and receive rates as well as
throughput, error and collision information as shown below:
There are two additional Ethernet statistics pages:
• Ethernet Statistics (per port) - Aggregation ports - this page
contains network information on a per aggregation basis, for example,
ag1, ag2...
• Ethernet Statistics (per port) - Physical ports - this page contains
network information on a per ph
ysical port basis, for example, tg1, tg2...
Navigate to the Network Configuration -> Ethernet Statistics (per port)
page in order to view the Aggregation ports page. On this page, there is a
link to the Ethernet statistics (per port) - Physical ports page.
TCP/IP Statistics
To access this page, navigate to Network Configuration -> TCP/IP
Statistics.
This page displays information on connections, segments, UDP, ICMP and TCP
as shown below:
