(4) Assemble the needle Insert to the needle guide (Figure 7). Be sure that the gauze size engraved on each parts is
same. Open the biopsy attachment mounting arm outward to attach the biopsy attachment to the probe (Figure 8).
(5) Place the projected parts of the attachment on the grooves of the probe in order to attach the biopsy attachment to
the probe. Note that the biopsy attachment is attached over the probe cover (Figure 9).
Needle Guide
Needle Insert
Applicable needle size

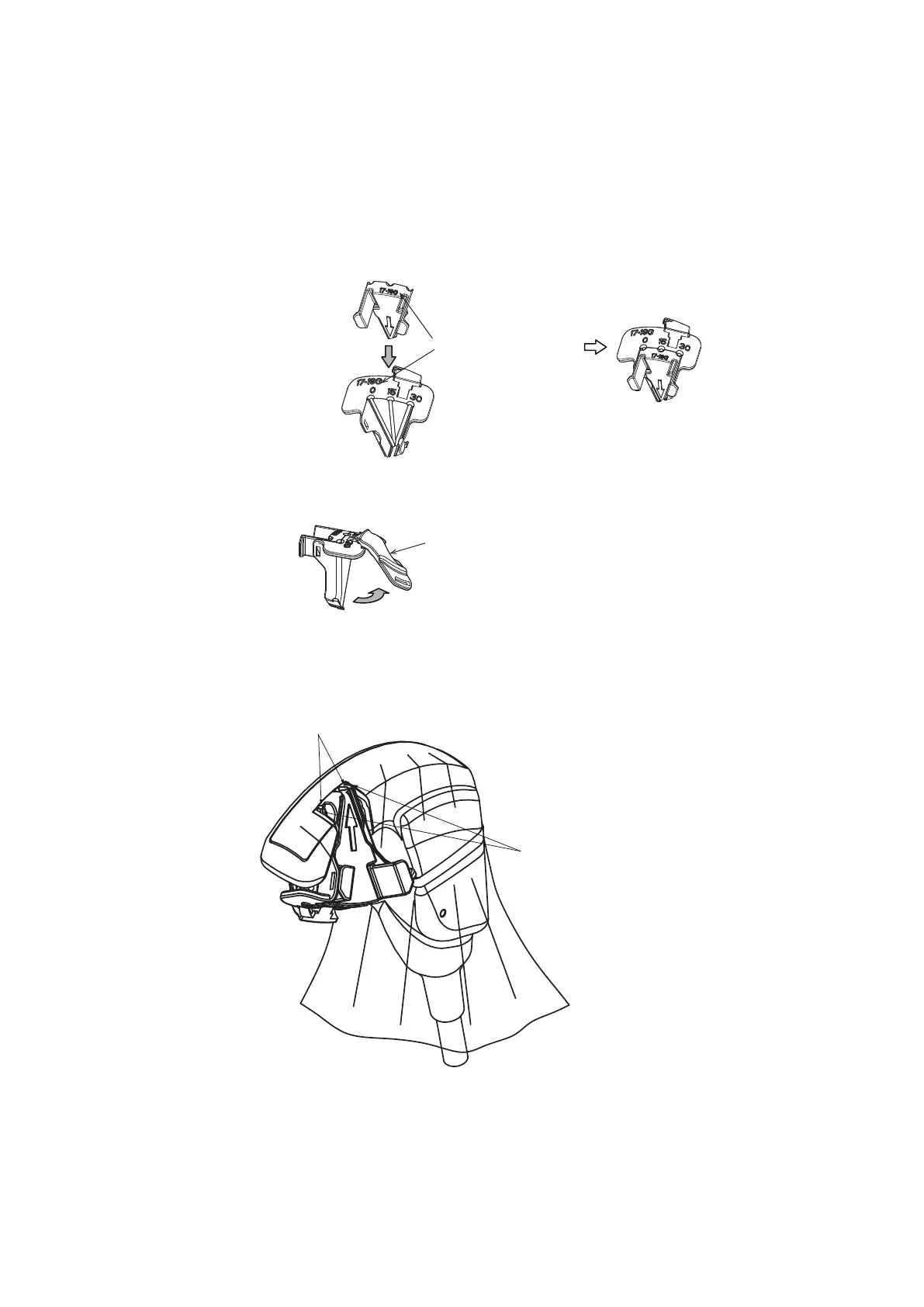

Figure 7 Biopsy Attachment assembly
Figure 8 Opening of Biopsy Attachment Mounting Arm
Figure 9 Attachment of Biopsy Attachment
Open outward
Biopsy Attachment Mounting Arm
Projected parts of the attachment
Grooves of the probe
